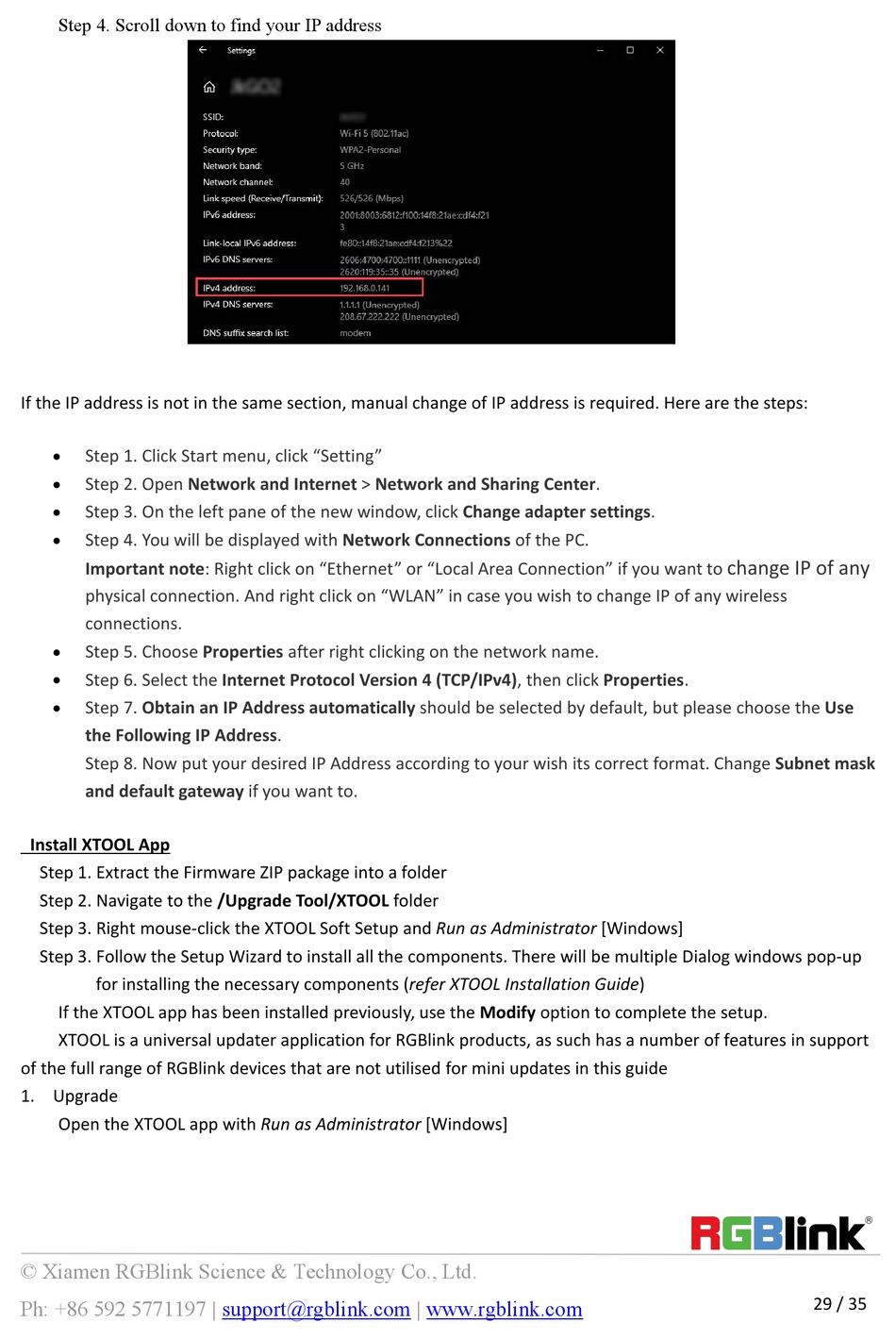

RGBlink mini Quick Start Manual page 30

Step 4. Scroll down to find your IP address
If the IP address is not in the same section, manual change of IP address is required. Here are the steps:
 Step 1. Click Start menu, click "Setting"
 Step 2. Open Network and Internet > Network and Sharing Center.
 Step 3. On the left pane of the new window, click Change adapter settings.
 Step 4. You will be displayed with Network Connections of the PC.
Important note: Right click on "Ethernet" or "Local Area Connection" if you want to
physical connection. And right click on "WLAN" in case you wish to change IP of any wireless
connections.
 Step 5. Choose Properties after right clicking on the network name.
 Step 6. Select the Internet Protocol Version 4 (TCP/IPv4), then click Properties.
 Step 7. Obtain an IP Address automatically should be selected by default, but please choose the Use
the Following IP Address.
Step 8. Now put your desired IP Address according to your wish its correct format. Change Subnet mask
and default gateway if you want to.
Install XTOOL App
Step 1. Extract the Firmware ZIP package into a folder
Step 2. Navigate to the /Upgrade Tool/XTOOL folder
Step 3. Right mouse-click the XTOOL Soft Setup and Run as Administrator [Windows]
Step 3. Follow the Setup Wizard to install all the components. There will be multiple Dialog windows pop-up
for installing the necessary components (refer XTOOL Installation Guide)
If the XTOOL app has been installed previously, use the Modify option to complete the setup.
XTOOL is a universal updater application for RGBlink products, as such has a number of features in support
of the full range of RGBlink devices that are not utilised for mini updates in this guide
1. Upgrade
Open the XTOOL app with Run as Administrator [Windows]
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 |
support@rgblink.com
|
www.rgblink.com
change IP of any
29 / 35
