Mode; Pip; Fx [Mini+ Only] - RGBlink mini Quick Start Manual

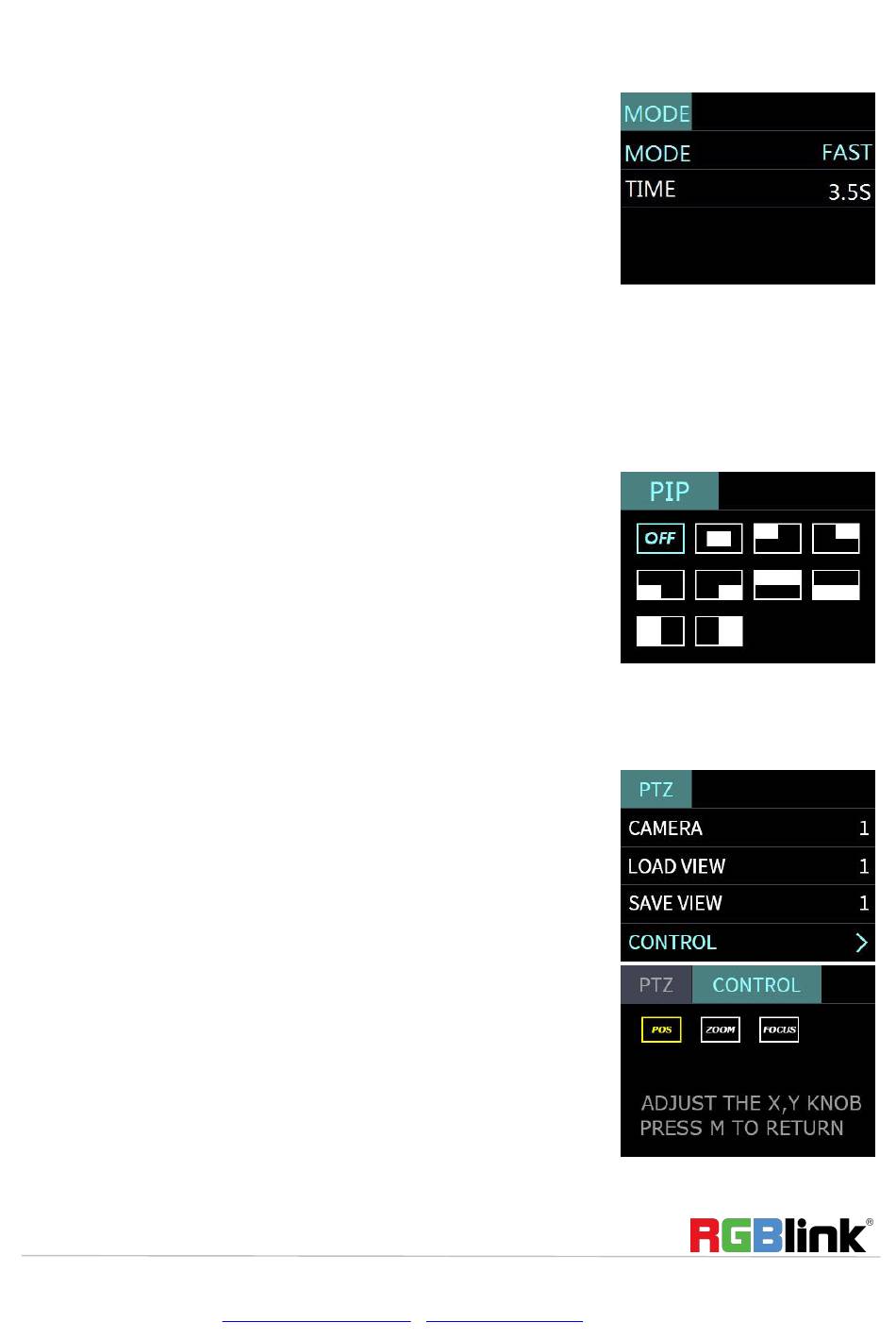

MODE

Select from FAST or TBAR switching modes.
In FAST mode switching between sources is done immediately
a source (1,2,3,4) key is pressed.
TBAR mode allows a source to be selected for PVW (Preview)
with its button, then switched via the TBAR
Set a TIME up to 5sec for transitions, fades or cuts to be used in
FAST mode.

PIP

Display a source as an overlay window. There are both Picture-in-
Picture (PIP) and Picture-by-Picture (PBP) presets.
PBP presets are suitable for specialist applications with 2:1 output
ration, or with input media that had been specially prepared.

FX [mini+ only]

CONTROL the attributes of VISCO standard PTZ cameras from mini+
and store position and zoom settings as VIEWs for on demand use.
CAMERA: Select a camera to control
LOAD VIEW: Recall a saved view for the selected camera
SAVE VIEW: Save the control attribute settings for the currently
selected camera
CONTROL: control and set the attributes of the currently selected
camera
POS: Set the X & Y (Pan & Tilt)
ZOOM: Set the lens zoom factor
Focus: Set the focus via Y knob
ENABLE: Turn on/off PTZ camera LAN control on mini+
IP SETTING: Set the IP addresses for each camera. Note mini+ and
cameras must be on the same network subnet.
