MODE

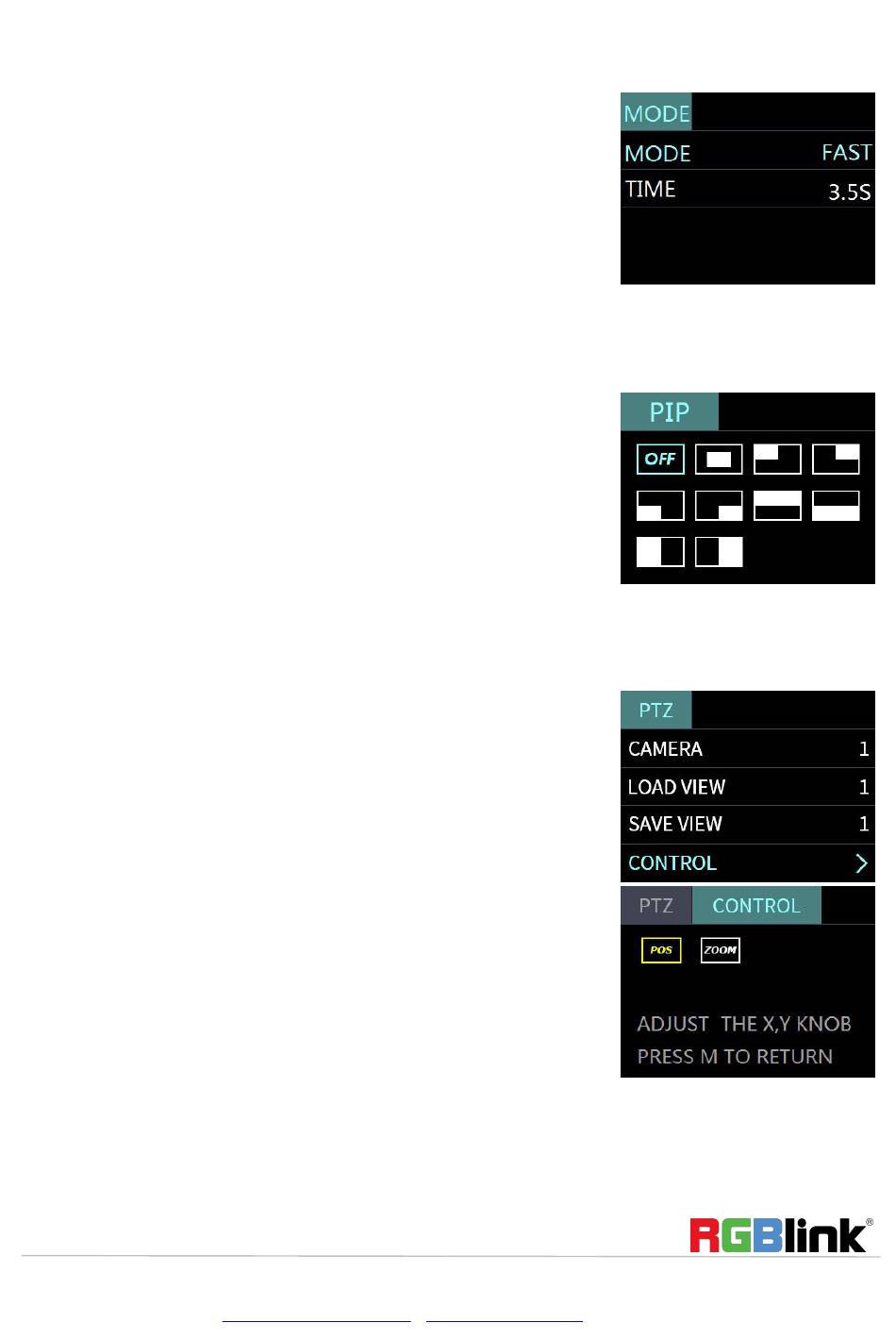

Push the button S twice to open up MODE menu.
MODE:FAST or T-Bar
TIME:0.5~5.0S
Choose FAST, the switching will be with transition effect
in set time.
Choose T-Bar, the switching will be with selected
transition effect by pushing T-Bar

PIP

Push Button S three time to open PIP menu.
PIP menu offers 9 layouts for main picture and sub picture.
FX
FX only works on mini+ and it leads to PTZ control menu on device.
Camera：choose the desired camera from index 1~8，or ALL. One
mini+ is able to connect up to 8 PTZ cameras.
Load View：from View index 1~11，
Save View：to View index 1~11，
In terms of "View" it means lens position and zoom setting on PTZ
control.
Control：POS（position）and ZOOM（Zoom in/out）
Position control: use X knob to control camera lens move left and
right, Y knob to move camera lens up and down.
Zoom control:use Y knob to zoom in and out.
Enable：Enable or disable the LAN communication of Camera 1~8
IP Setting：Match the IP address of those PTZ cameras connecting
to mini+
