Shuttle Ultrasonic Sensors
®

Standard Range Version

EN 2.10 Shuttle Manual 1712

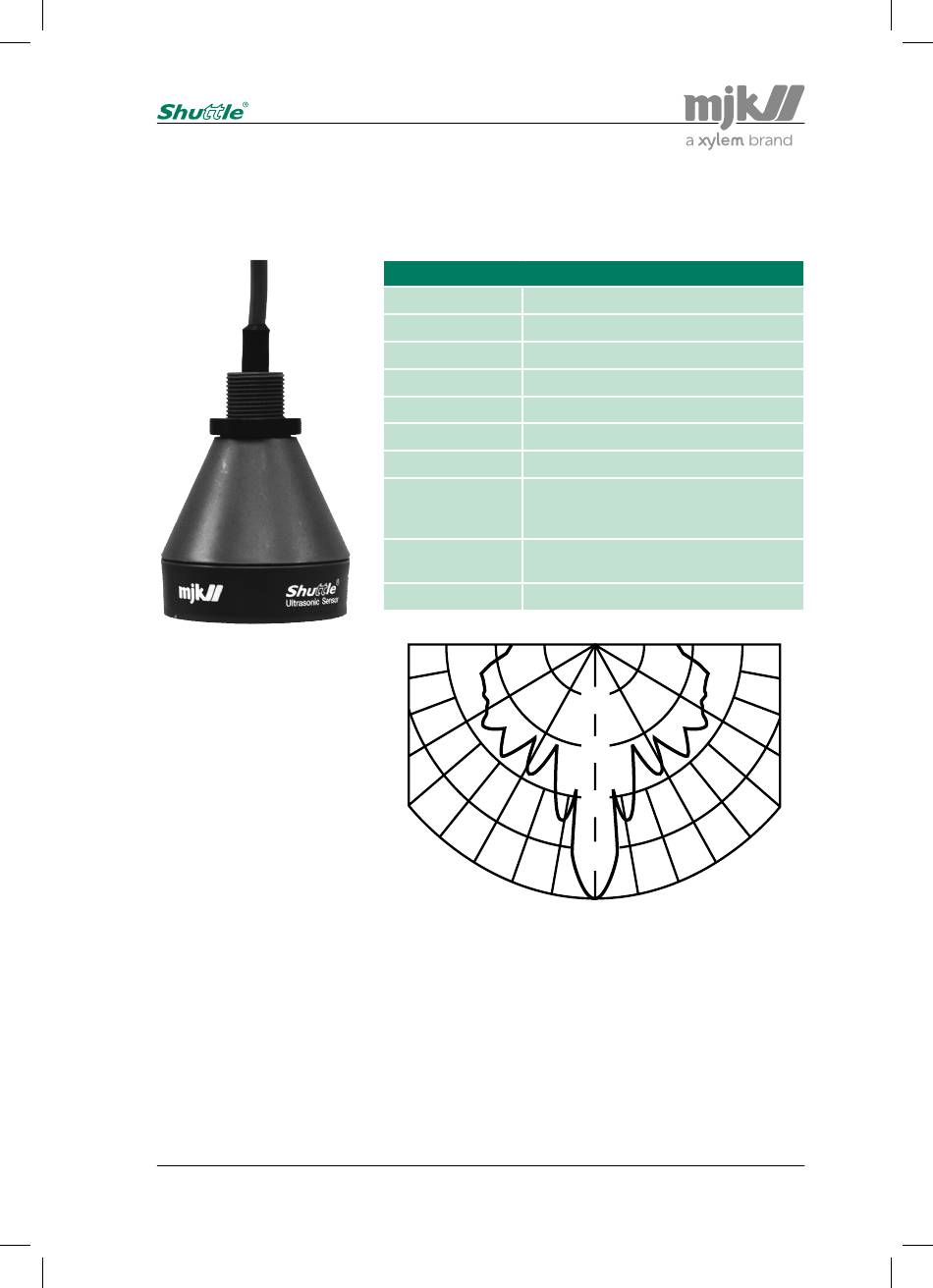

Shuttle Ultrasonic Sensor Type 200570
®
Measuring range 15 m (liquids), 6 m (solids)
Frequency 30 KHz
Spread 3 °
Dead band 35 cm
Sensitivity See figure below
Temperature - 20 to + 60 °C
Materials PP (green), POM (black)
Cable Shielded, insuated with oil resistant PVC,
length 12 m
(Max. 100 m with 690010 cable)
Enclosure IP 68, water-proof, withstands sub-
merging, max. 1 bar
CE approvals EN 50081-1, EN 50082-1
90
60
30
38
-40
-30
-20
-10
dB
30
0
SW 838023
90
60
