Appendix

Standard Range Version/FM Approved

EN 2.10 Shuttle Manual 1712

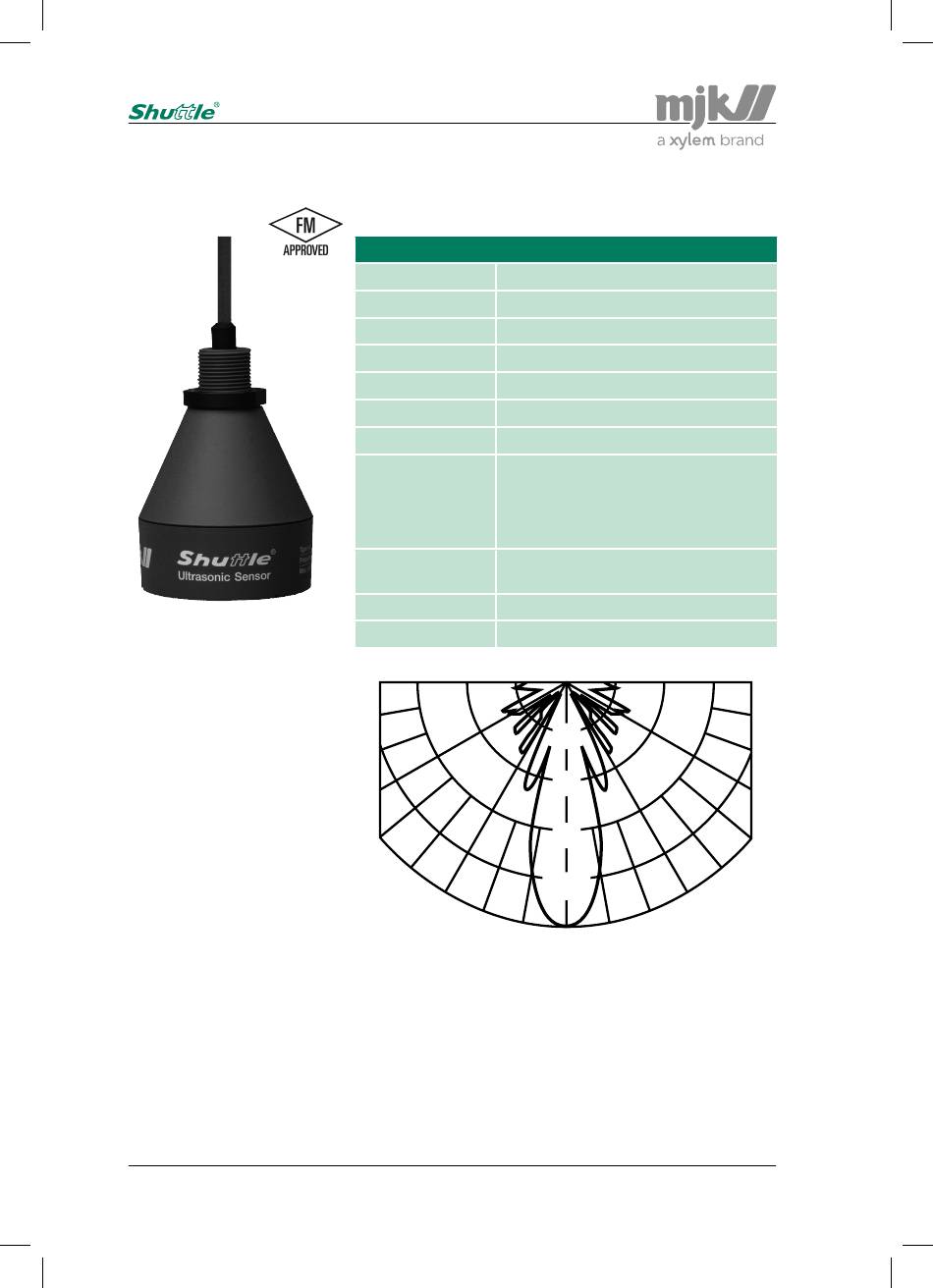

Shuttle ® Ultrasonic Sensor Types 200640 / 200641
Measuring range 12 m (liquids), 6 m (solids)
Frequency 40 KHz
Spread 7 °
Dead band 35 cm
Sensitivity See figure below
Temperature - 20 to + 60 °C
Materials VALOX
Cable 200640: Shielded, insuated with oil resistant PVC,
length 12 m.
Cable 200641: Shielded, insuated with oil resistant PVC,
length 50 m
(Max. 100 m with 690010 cable)
Enclosure IP 68, water-proof, withstands sub-
merging, max. 1 bar
CE approvals EN 50081-1, EN 50082-1
Ex approvals FM Class 1, Div. 1, Group A-G
90
60
30
39
-40
-30
-20
-10
dB
30
0
SW 838023
