Sensor to zero point distance

The level read-out (zero point) can be adjusted as required.
This is almost always required if the well was not empty dur-
ing initial startup.
Note: The learning function settings will be erased and
the relays will be deactivated if the zero point set-
ting is changed.

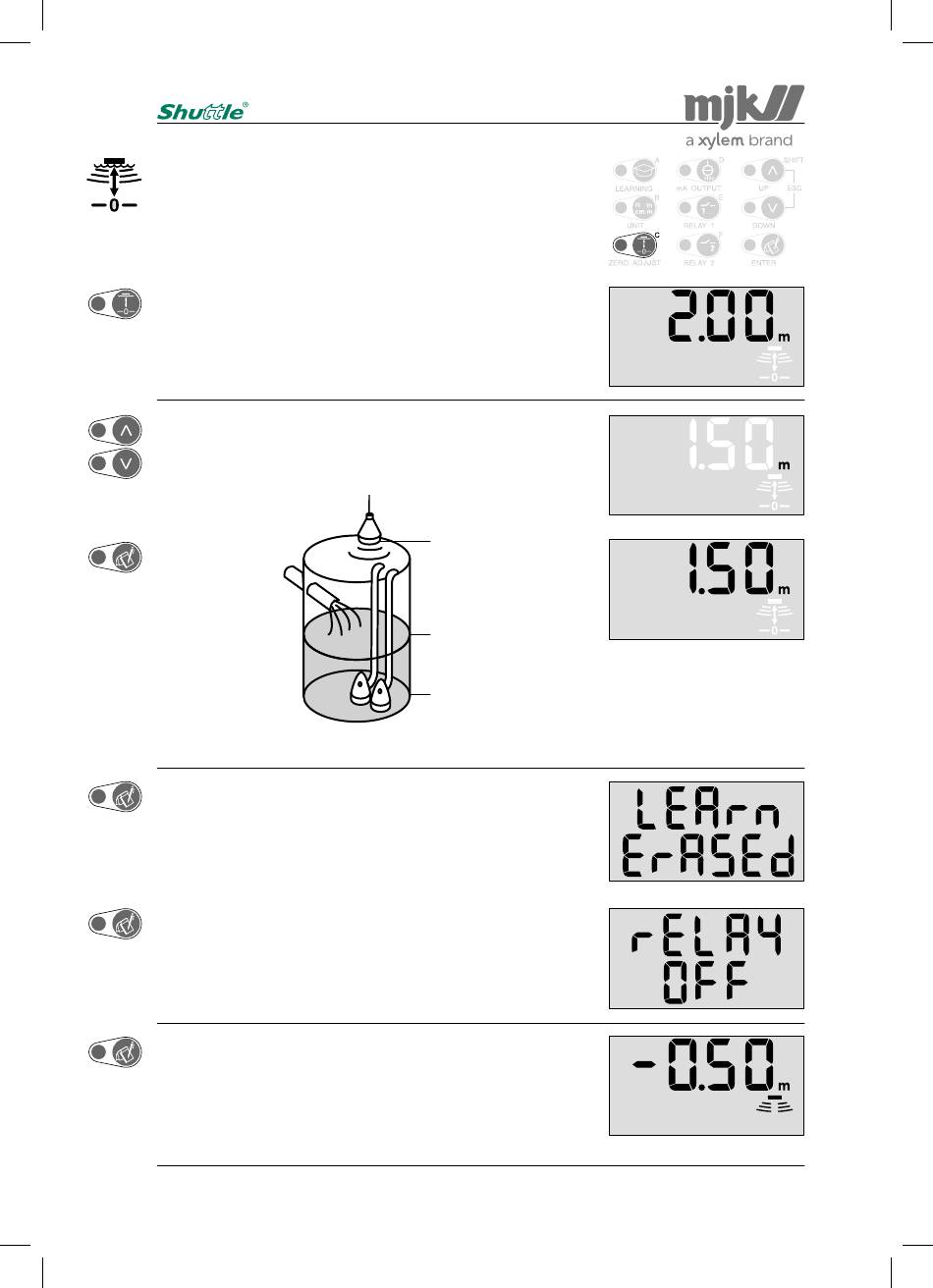

In this example, the level read-out is changed to be 1.50 ft
from the bottom of the well / tank.
Set the new zero point with the arrow keys.
If the learning function has been activated, Shuttle
activate the learning function and erase the suspicious levels
that were found last time the learning function was activated.
The learning function must therefore both be started and
reactivated again.
If the relay outputs are configured for pump control, the
relays will be deactivated, but their limit settings will not be
erased. Also, delay settings and other settings will not be
erased.
Shuttle
® will now read out - 0,50 m when the well is empty.
EN 2.10 Shuttle Manual 1712
2,00 m
0,50 m
0,00 m
will de-
®
