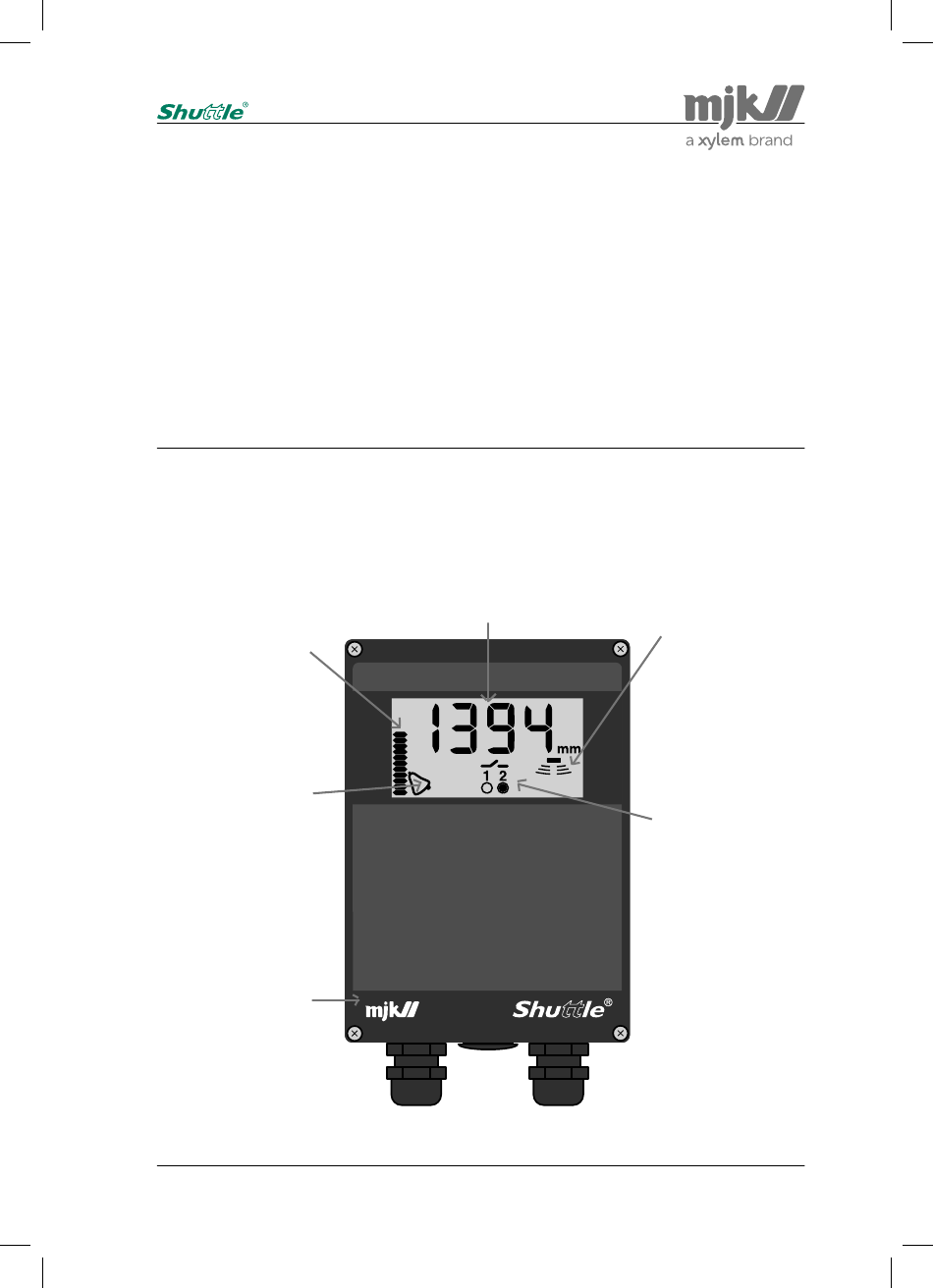

Display and keyboard

Basic settings

The automatic setting of the zero point and the mA output made by Shuttle
startup may be adequate.
If changes of the zero point read-out and mA output setting should be necessary, and when
Shuttle is to be used as a pump controller or for level monitoring, an additional 5 settings
®
should be made. These settings are described in detail on the following pages.
Proceed with set-up in the order listed below:
1: Setting units of measurement
2: Setting the distance from sensor to zero point and
Setting the level read-out:
3: Setting the mA output:
4: Setting the the relay limits:
5: Start of the learning function:
When the settings are made, Shuttle
Bar graph
The bar graph can
be set to indicate
either the level
read-out or the mA
output.
Alarm
A flashing bell
indicates, that a
level is exceeded
or that Shuttle is
®
not certain that the
measured level is
correct.
MJK
will always be at
your disposal.
EN 2.10 Shuttle Manual 1712
See page 17.
See pages
See page 20.
See page 21.
See pages
is ready to be put into service.
®
Display
Shuttle continuosly reads
®
out the current level with
bright and easy-to-read
figures.
16
during initial
®
18 - 19.
28 - 29.
Echo strength
Shuttle
® indicates
that the ultrasonic
echo is sufficient
for a reliable level
measurement.
Relay outputs
When Shuttle
®
measures a level
that has exceeded
a setpoint limit, the
relays are activated
and their current po-
sition are indicated
here. (Relay no. 2 is
activated.)
