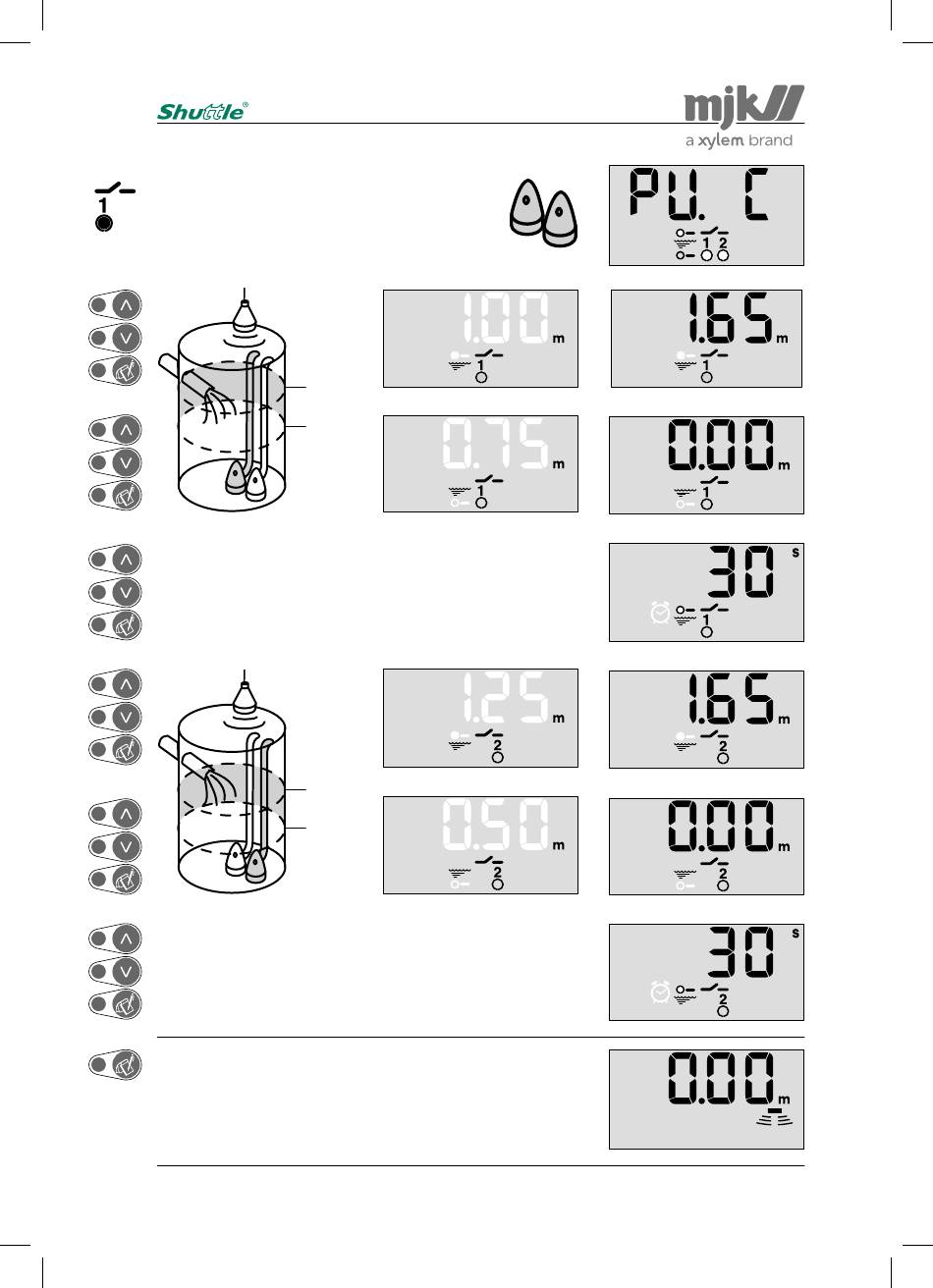

Pump control with relays 1 and 2

Start and stop level for pump no. 1 is set to

1,00 and 0,75 m respectively.

1,00 m

0,75 m

Select the time delay for relay 1 with the arrow keys.

Start and stop level for pump no. 2 is set to 1,25

and 0,50 m respectively.

3.75 ft

1.50 ft

Select the time delay for relay 2 with the arrow keys.

With these start and stop levels Shuttle

for pumping out and reverts to normal read-out.

EN 2.10 Shuttle Manual 1712

is now configured

SW 838023
