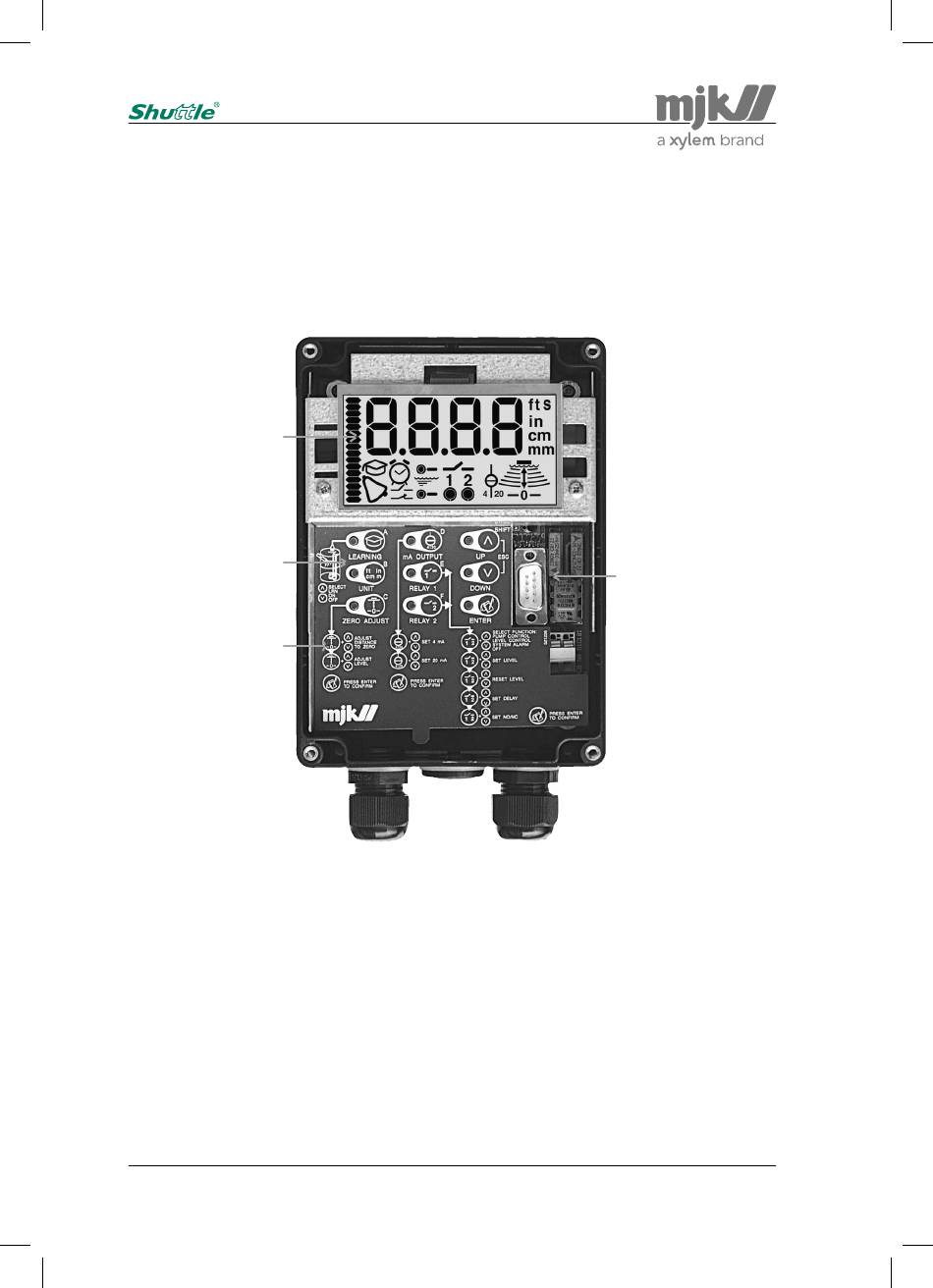

Display and keyboard
Display and keyboard
General
The keyboard is used only for the initial programming of the Shuttle
behind the front lid. The keys are marked with symbols indicating their function.
The same symbols are used throughout this manual under the explanation of the individual
menus.
LCD-display with
symbols for indica-
tion during program-
ming, servicing and
normal operation.
Keyboard for
programming the
Shuttle
®
A brief program-
ming instruction.
The lower part can
be tipped up to
show the connec-
tion terminals and
their designations.
EN 2.10 Shuttle Manual 1712
, and is therefore hidden
®
11
Interface used during
manufacturing and
for test purposes.
SW 838023
