Appendix

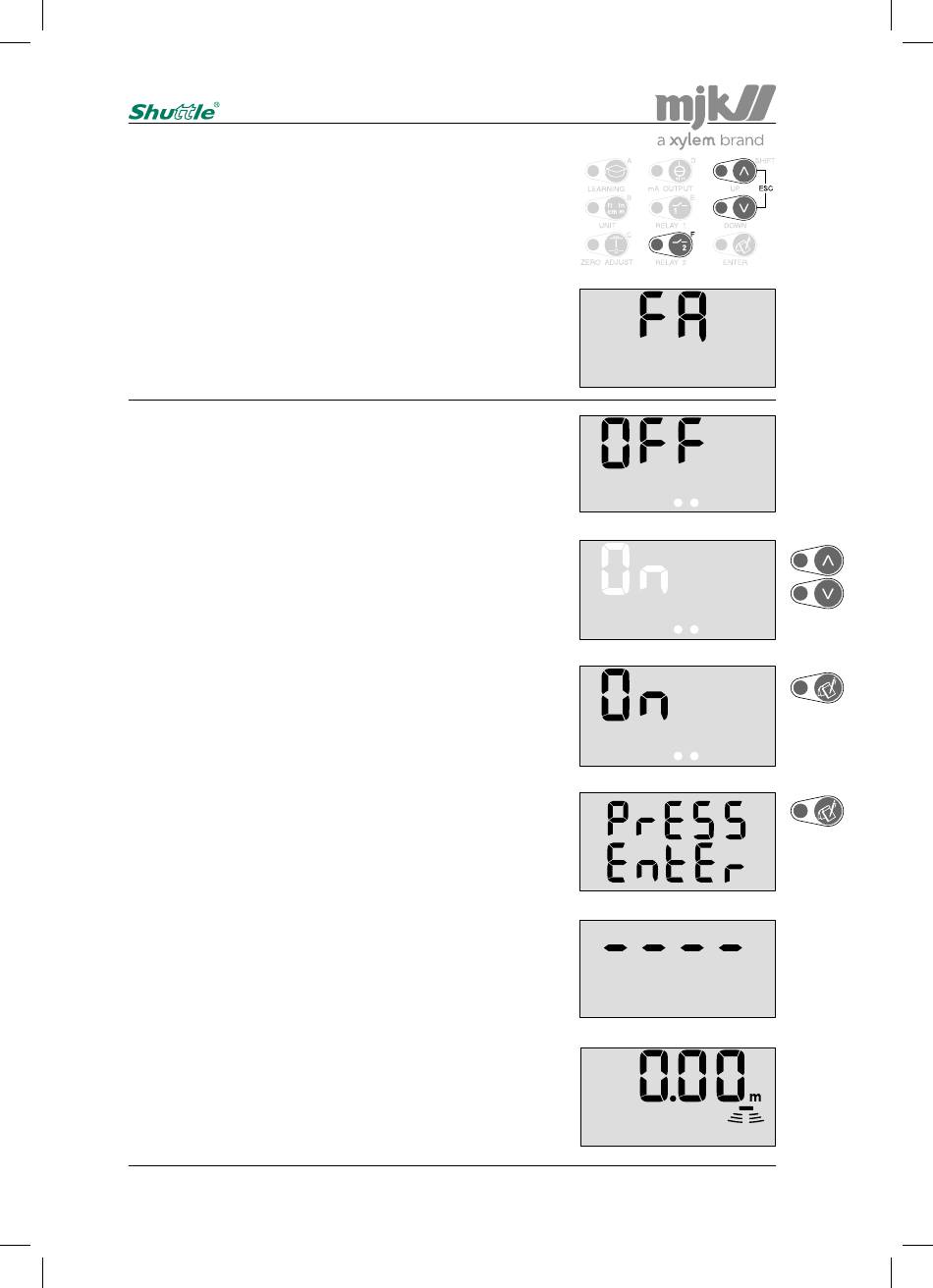

Select factory settings

All settings - except calibration of the level measurement
- made after initial startup will be reset to factory settings
with this function.
The zero point setting will also be adjusted to the immediate
level in the well / tank. Furthermore, the mA output is set to
4 mA at the current zero point and 20 mA at a level corres-
ponding to a distance of 14 in from the ultrasonic sensor.
Note: The function will cause Shuttle
same way it did when the supply power was
turned on for the first time..
Select 'ON' with the arrow keys.
This is shown in the display until Shuttle
echo again.
... after which Shuttle returns to normal read-out.
®
EN 2.10 Shuttle Manual 1712
to start up the
®
detects a valid
®
57 SW 838023
