Appendix
A
Technical specifications
Shuttle
Level Transmitter
®
Measuring range
0 - 25 m
Span
From 0 - 10 cm to 0 - 25 m
Power supply
230 / 115 V AC, 10 - 30 V DC
Consumption
2 W
Temperature
- 20 to + 60 °C
Input
From ultrasonic sensor
Accuracy
Better than ± 0,2% ➀
Analogue: 1 pc. 4 - 20 mA, max. 500 Ω loop impedance.
Outputs
Digital: 2 pcs. relays with connect or disconnect function (NO/NC).
Max. 50 V DC, 1 A ohmic / 50 V AC, 50 VA.
Display
LCD with 4 digits and symbols
Operation
Function keys behind the front cover
Humidity Range
max. 90 % r.H. not condensating
Enclosure
IP67
CE approvals
EN 50081-1, EN 50082-1
➀
The accuracy is stated for the selected measuring range with the sensor mounted 35 cm above highest possible
level and with subsequent calibration of level readout as explained on page
surface without foam build-up or other disturbing objects.

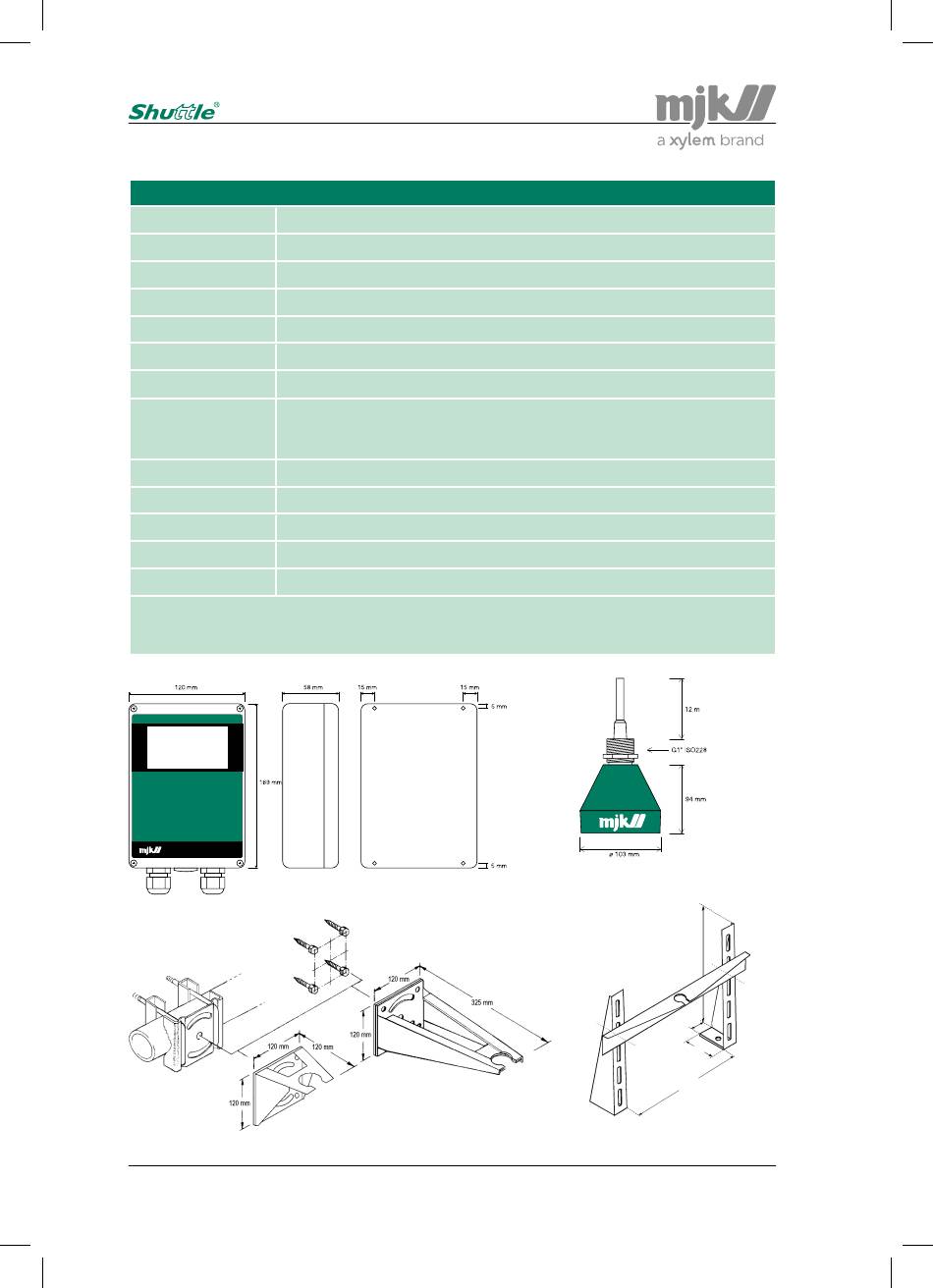

Dimensions
Shuttle
Level Transmitter
®
Universal bracket
Short sensor bracket
EN 2.10 Shuttle Manual 1712
52
Standard sensor bracket
37
and when measuring on an even
Shuttle
®
Ultrasonic Sensor
500 mm
50 mm
115 mm
550 / 950 mm
Sensor bracket for channel or flume
SW 838023
