Chapter 2 – Installation
This chapter provides information on configuring the AHIP-370 Processor Module.
Pinouts for the connectors are located in Appendix C.

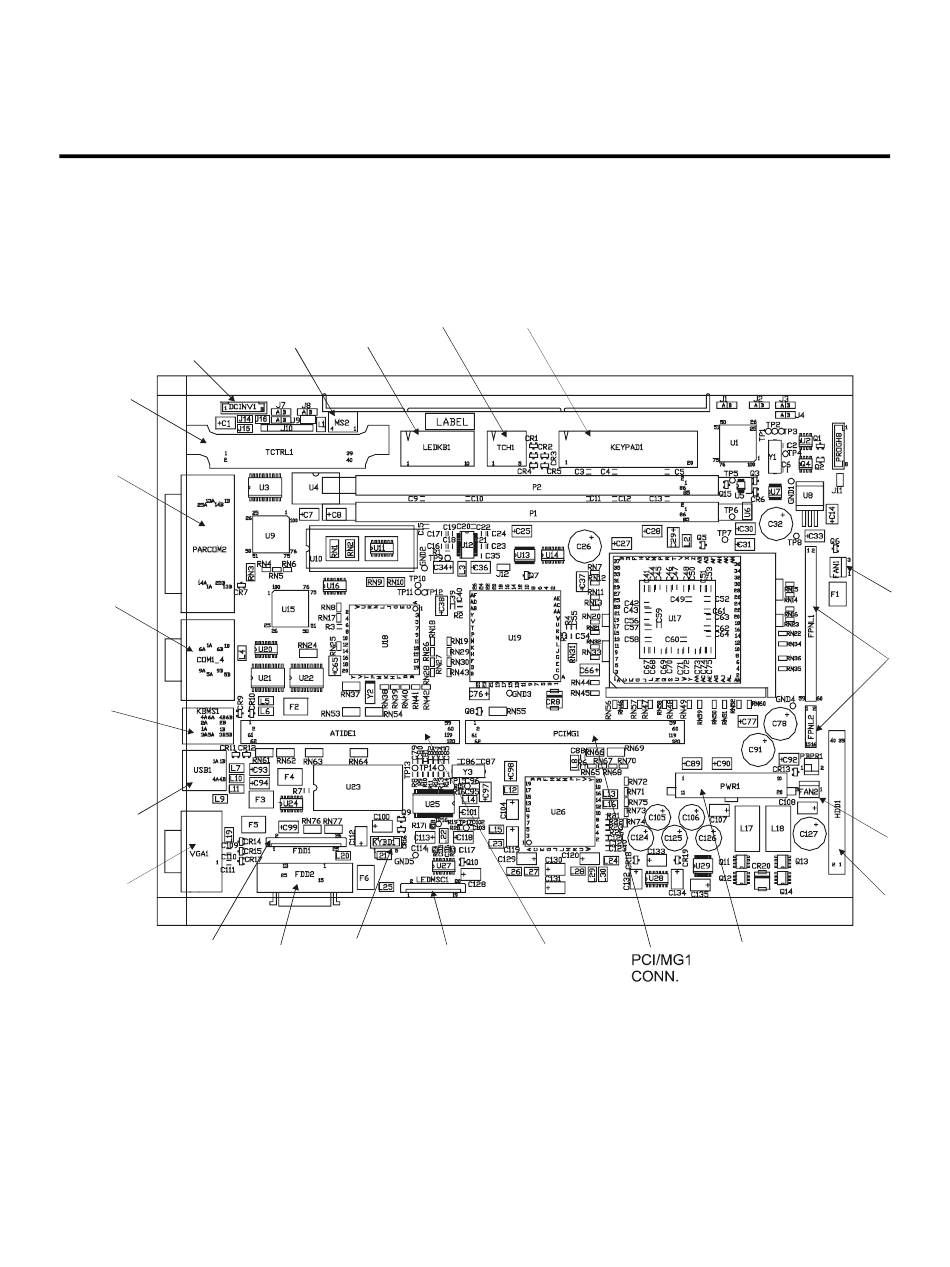

Figure 2-1 illustrates the jumper and connector locations on the AHIP-370.
BACKLIGHT
INVERTER
CONN.
TOUCH
CONTROL
CONN.
COM2
RS-232
(TOP)
PARALLEL
(BOTTOM)
CONNS.
COM1
RS-485
(TOP)
RS-232
(BOTTOM)
CONNS.
EXTERNAL
MOUSE
(TOP)
KEYBOARD
(BOTTOM)
CONNS.
USB
CONN.
VIDEO
CONN.
INTERNAL
FLOPPY
CONN.
TOUCH
LED IN
CONN.
INTERNAL
KEYPAD
MOUSE
CONN.
CONN.
J17
INTERNAL
EXTERNAL
KEYBOARD
FLOPPY
CONN.
CONN.
Figure 2-1. AHIP-370 Jumper and Connector Locations
KEYPAD
CONN.
ATI/IDE1
LED
BACKPLANE
CONN.
CONN.
Chapter Two - Installation
HDD1
CONN.
POWER
CONN.
13
CPU
FAN
CONN.
FLAT
PANEL
CONN.
SYSTEM
FAN
CONN.
