Admiral Series
1
Introduction and Features
Model
Remarks

Advertisement

loading

Related Manuals for Gree Admiral Series

Summary of Contents for Gree Admiral Series

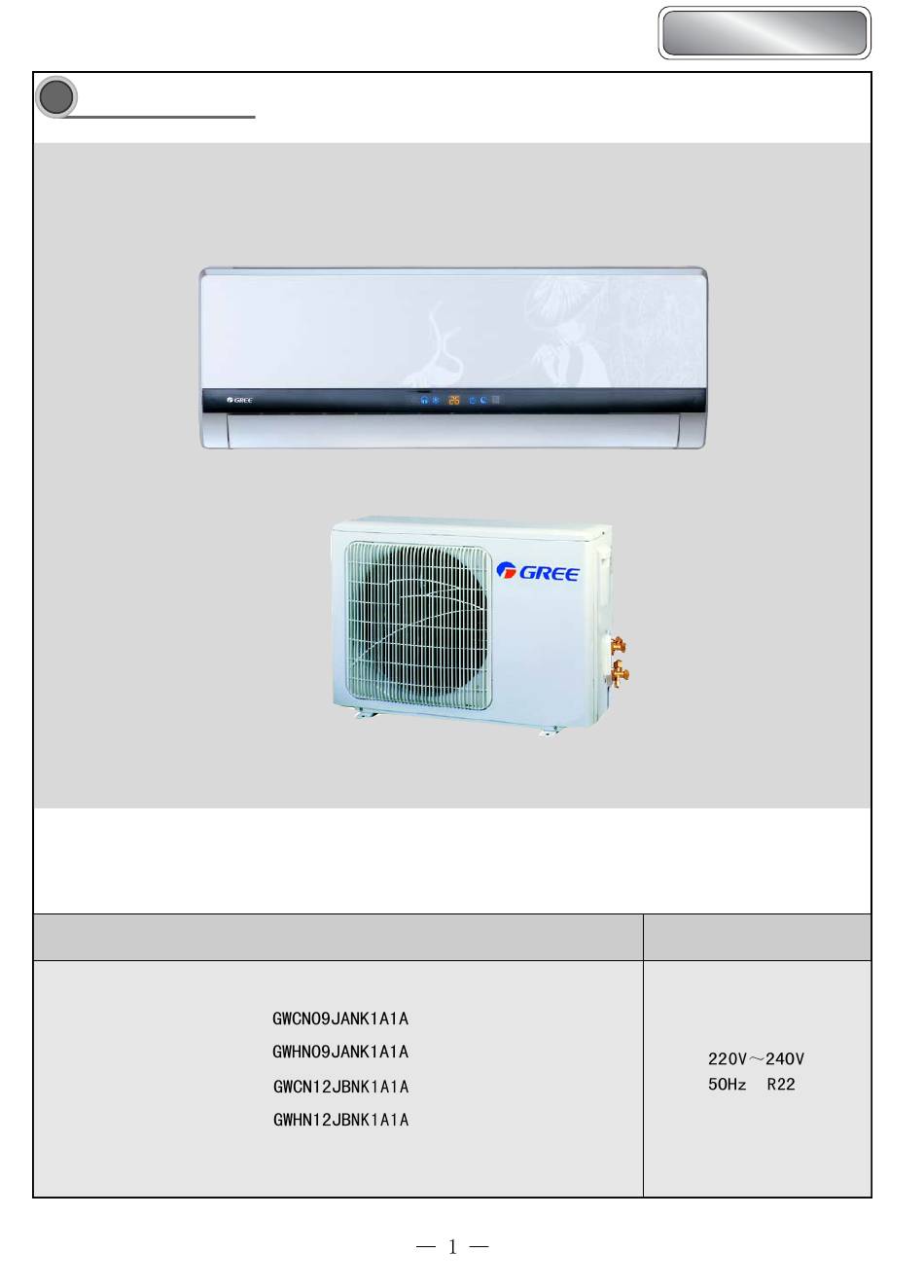

  • Page 1 Admiral Series Introduction and Features Model Remarks...
  • Page 2 Model Remarks...
  • Page 3 Admiral Series Model Remarks...
  • Page 4 Model GWCN09JANK1A1A Product Code CA22500130 Function COOLING Rated Voltage 220-240V~ Rated Frequency 50Hz Total Capacity (Btu/h ) 9000 Power Input (W) Rated Input (W) 1200 Rated Current (A) 5.45 Air Flow Volume (m3/h) Dehumidifying Volume (l/h) C.O.P / EER (W/W) 3.05 Model of Indoor Unit GWCN09JANK1A1A/I...
  • Page 5 Admiral Series Model of Outdoor Unit GWCN09JANK1A1A /O Compressor Manufacturer/trademark LANDA Compressor Model QX-B16A030 Compressor Type revolving L.R.A. (A) Compressor RLA(A) Compressor Power Input(W) Overload Protector Internal Throttling Method Capillary Capacitor Starting Method Working Temp Range (℃) -7≤T≤43 Condenser Aluminum fin-copper tube Pipe Diameter (mm) Φ7...
  • Page 6 Model GWHN09JANK1A1A Product Code CA22500120 COOLING HEATING Function Rated Voltage 220-240V~ Rated Frequency 50Hz Total Capacity (W/Btu/h) 9000Btu/h 9500Btu/h Power Input (W) Rated Input (W) 1350 1250 Rated Current (A) Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) EER / C.O.P (W/W) 3.01/3.04 Energy Class GWHN09JANK1A1A /I...
  • Page 7 Admiral Series Model of Outdoor Unit GWHN09JANK1A1A Compressor Manufacturer/trademark Hitachi Compressor Model SG173CV-A5ETN Compressor Type revolving L.R.A. (A) Compressor RLA(A) Compressor Power Input(W) Overload Protector Internal Throttling Method Capillary Capacitor Starting Method Working Temp Range (℃) -7≤T≤43 Condenser Aluminum fin-copper tube Pipe Diameter (mm) Φ9...
  • Page 8 Model GWCN12JBNK1A1A Product Code CA22500150 COOLING Function Rated Voltage 220-240V~ Rated Frequency 50Hz Total Capacity (W/Btu/h) 12000Btu/h Power Input (W) 1160 Rated Input (W) 1550 Rated Current (A) 7.05 Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) EER / C.O.P (W/W) 3.03 Energy Class Model of Indoor Unit...
  • Page 9 Admiral Series Model of Outdoor Unit GWCN12JBNK1A1A/O Compressor Manufacturer/trademark HITACHI Compressor Model SL211SV－C5LU Compressor Type revolving L.R.A. (A) Compressor RLA(A) Compressor Power Input(W) 1125 Overload Protector Internal Throttling Method Capillary Capacitor Starting Method Working Temp Range (℃) -7≤T≤43 Condenser Aluminum fin-copper tube Pipe Diameter (mm) Φ7...
  • Page 10 Model GWHN12JBNK1A1A Product Code CA22500140 COOLING HEATING Function Rated Voltage 220-240V~ Rated Frequency 50Hz Total Capacity (W/Btu/h) 12000Btu/h 12780Btu/h Power Input (W) 1160 1230 Rated Input (W) 1700 1550 Rated Current (A) Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) 1.2/- EER / C.O.P (W/W) 3.03/3.05...
  • Page 11 Admiral Series Model of Outdoor Unit GWHN12JBNK1A1A /O Compressor Manufacturer/trademark HITACHI Compressor Model SL222SV－C5LU Compressor Type revolving L.R.A. (A) Compressor RLA(A) Compressor Power Input(W) 1190 Overload Protector Internal Throttling Method Capillary Capacitor Starting Method Working Temp Range (℃) -7≤T≤43 Condenser...
  • Page 12 Model GWCN18JCNK1A1A Product Code CA22500170 COOLING Function Rated Voltage 220-240V~ Rated Frequency 50HZ Total Capacity (W/Btu/h) 18000 Power Input (W) 1800 Rated Input (W) 2300 Rated Current (A) 10.5 Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) EER / C.O.P (W/W) 2.93 Energy Class Model of Indoor Unit...
  • Page 13 Admiral Series Model of Outdoor Unit GWCN18JCNK1A1A/O Compressor Manufacturer/trademark LANDA Compressor Model QX-F325F050g Compressor Type rotary L.R.A. (A) Compressor RLA(A) Compressor Power Input(W) 1780 Overload Protector Internal Throttling Method Capillary Capacitor Starting Method -7~43 Working Temp Range (℃) Condenser Aluminum fin-copper tube Pipe Diameter (mm) Φ7...
  • Page 14 Model GWHN18JCNK1A1A Product Code CA22500160 COOLING HEATING Function Rated Voltage 220-240V~ Rated Frequency 50HZ Total Capacity (W/Btu/h) 18000 19500 Power Input (W) 1800 1900 Rated Input (W) 2300 2300 Rated Current (A) 10.5 10.5 Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) EER / C.O.P (W/W) 2.93/3.01...
  • Page 15 Admiral Series Model of Outdoor Unit GWHN18JCNK1A1A/O Compressor Manufacturer/trademark HITACHI Compressor Model SHX33SC4-S Compressor Type rotary L.R.A. (A) Compressor RLA(A) 8.35 Compressor Power Input(W) 1815 Overload Protector Internal Throttling Method Capillary Capacitor Starting Method Working Temp Range (℃) -7~43 Condenser...
  • Page 16 Model GWCN24JDNK1A1A Product Code CA22500560 COOLING Function Rated Voltage 220-240V~ Rated Frequency 50Hz Total Capacity (W/Btu/h) 22000 Power Input (W) 2140 Rated Input (W) 2900 Rated Current (A) 13.2 1000 Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) EER / C.O.P (W/W) Energy Class Model of Indoor Unit GWCN24JDNK1A1A/I...
  • Page 17 Admiral Series Model of Outdoor Unit GWCN24JDNK1A1A/O Compressor Manufacturer/trademark HITACHI Compressor Model SHV33ZC1-S Compressor Type rotary L.R.A. (A) Compressor RLA(A) 10.1 Compressor Power Input(W) 2175 Overload Protector Throttling Method Capillary Capacitor Starting Method -7~43 Working Temp Range (℃) Condenser Aluminum fin-copper tube Pipe Diameter (mm) Φ9.52...
  • Page 18 Model GWHN24JDNK1A1A Product Code CA22500590 COOLING HEATING Function Rated Voltage 220-240V~ Rated Frequency 50Hz Total Capacity (W/Btu/h) 22000 23200 Power Input (W) 2140 2150 Rated Input (W) 3000 3050 Rated Current (A) 13.6 13.9 1000 Air Flow Volume (m /h) (SH) Dehumidifying Volume (l/h) EER / C.O.P (W/W) Energy Class...
  • Page 19 Admiral Series Model of Outdoor Unit GWHN24JDNK1A1A/O Compressor Manufacturer/trademark HITACHI Compressor Model SHV33ZC1-S Compressor Type rotary L.R.A. (A) Compressor RLA(A) 10.1 Compressor Power Input(W) 2175 Overload Protector Throttling Method Capillary Capacitor Starting Method Working Temp Range (℃) -7~43 Condenser Aluminum fin-copper tube Pipe Diameter (mm) Φ9.52...

  • Page 20: Parts Name

    Parts' Name Power cord Indoor unit Air in Displayer Front panel Binding tape Wall pipe Guide louver Filter Air out Window Power/run Heat COOL receiver Quiet Temperature Sleep dispaly Outdoor unit Air in Drain hose Air out...
  • Page 21 Admiral Series Outline and Installation Dimension Outline and Installation Dimension for Indoor unit left tube outlet rigth tube outlet ceiling installation dimension Model W(mm) H(mm) D(mm)
  • Page 22 Outline and Installation Dimension for Outdoor Unit handle handle Unit: mm >500 >600 >500 >300 bolt wrench...
  • Page 23 Admiral Series Outline and Installation Dimension for Outdoor Unit (2) Unit: mm >600 >600 >600 >1000 bolt wrench...
  • Page 24 Outline and Installation Dimension for Outdoor Unit (3) Unit: mm >600 >1000 >600 >100 bolt wrench...
  • Page 25 Admiral Series Operation and installation for scavenging device Independant scavenging device (1) wall pipe (2) grille (3) joint (4) scavenging duct (5) scavenging box cover (6) circuit part (7) scavenging motor (8) scavenging box bottom (9) wall-mounted plate (10) small wall pipe...

  • Page 26: Servicing And Maintenance

    Servicing and Maintenance: Failure categories and treatments: If there is any of the following conditions, please stop running the scavenging device immediately; cut off the power and contact the local dealer or visit local facilitator's website: 1. Abnormal noise in the independent scavenging device; 2.
  • Page 27 Basic Requirements on Installation Location Installing at following places will cause failure to the independent scavenging device. If it is unavoidable, please consult the maintenance center of Gree Electrical Appliance: · Place with oil in the air; · Place with vulcanized gas (vulcanization hot spring);...
  • Page 28 Installation Steps for Independent Scavenging Device 1. Enlarge the hole at the wall pipe hole of the original air conditioner, size of the hole shall be . 90. Size of the wall pipe is shown as the right picture. 2. Connect the scavenging duct to the independent scavenging device.
  • Page 29 Admiral Series If the users disagrees or unavailable to enlarge the hole, the folloing installation scheme shall be applied. Installation steps are as follows: (wherein, (13) scavenging connector and (14) extension tube are optional component) 1. As shown in the picture, CW rotate (12) scavenging transition duct on (4) scavenging duct.

  • Page 30: Electric Circuit Diagram

    Electric Circuit Diagram INDOOR UNIT OUTDOOR UNIT INDOOR UNIT OUTDOOR UNIT...
  • Page 31 Admiral Series INDOOR UNIT OUTDOOR UNIT INDOOR UNIT OUTDOOR UNIT...
  • Page 32 INDOOR UNIT OUTDOOR UNIT INDOOR UNIT OUTDOOR UNIT...
  • Page 33 Admiral Series Controller Function Manual and Operating Method Controller Function Manual This function manual is applicable for admiral series. 1. Temperature Parameters ◆Indoor preset temperature (Tpreset) ◆Indoor ambient temperature (Tamb.) 2 Basic functions Once the unit is energized, the compressor shall never be restarted except 3mins interval at least. For the first energization, the compressor can be restarted without 3-min delay.
  • Page 34 Tamb. cooling Tpreset drying Tpreset stop operation mins mins mins mins compressor outdoor fan indoor fan low speed ② Protection stop ◆ Antifreezing protection During drying and cooling operation, if the system is under antifreezing protection, the compressor and outdoor fan stop operation while indoor fan operates at low speed.
  • Page 35 Admiral Series (4) Fan Mode In fan mode, the indoor fan operates at setting fan speed. (5) Fan Mode In AUTO mode, the unit will automatically select its operation mode (cooling, heating or fan) with the change of ambient temperature.
  • Page 36 ③ When the X-Fan function is started up, the characters of “X-Fan” will be displayed on remote controller; when the X-Fan function is turned off, the characters of “X-Fan” won’t be displayed on remote controller. ④ Press the “X-Fan”button and switch to cooling or crying mode, the on/off status of “X-Fan”function will be kept at the original status.

  • Page 37: Removal Procedure

    Admiral Series 7 7 7 7 7 Removal Procedure Removal Process for Indoor Unit Operating Procedure/Photos panel Remove panel Open the panel, pull it slight by hand and then remove the panel. (As shown in 7-1) screw Fig. filter Remove filter and wire-pressing board Lift up the middle part of the air filter to loosen the clasps at both sides.
  • Page 38 Operating Procedure/Photos Remove front case Twist off the 6 tapping screws used for fixing the front case with screwdriver, open the front case and then to remove it. (As shown in fig 7-4) screw Fig. Remove water tray clasp Twist off the earthing screws on electric box cover, loosen the clasps, remove the electric box cover and then pull out the wiring terminal of guide motor;...
  • Page 39 Admiral Series Operating Procedure/Photos Remove electric box Twist off the 2 screws on electric box. Pull out the wiring terminal of motor, twist off the earthing wire and the 3 screws used for fixing the electric box with screwdriver, pull it upward and then remove the electric box.
  • Page 40 Operating Procedure/Photos Twist off the 2 screws at the left side of the evaporator. Rotate the evaporator to a certain angle and then remove the screw evaporator. (As shown in fig 7-10) Fig. Remove motor and cross flow blade Twist off the fixing screws on the press plate of motor with screwdriver.
  • Page 41 Admiral Series Removal Process for Outdoor Unit Operating Procedure/Photos Remove top cover top cover Twist off the one screw used for fixing the handle with screwdriver, push it downward and then remove the handle. Twist off the 3 screw around the top cover, pull it upward and then remove the top cover.
  • Page 42 Operating Procedure/Photos mounting plate Remove electric box Twist off the 3 screws used for fixing the mounting plate, pull out the pin of lead-out wire for compressor and fan motor and then remove the mounting plate. As shown in fig 7-16. screw Fig.
  • Page 43 Admiral Series Operating Procedure/Photos Remove motor and motor support motor support Twist off the 4 tapping screws used for fixing the motor and tapping screw then remove the motor. Twist off the 2 tapping screws used for fixing the motor support, pull it upward and then remove the motor support.
  • Page 44 Operating Procedure/Photos soldering joint Remove compressor Loosen the 3 nuts with washer at the foot of the compressor, unsolder the soldering joint between intake pipe and discharge pipe of compressor, remove the pipeline and then remove the compressor. As shown in fig 7-22. bolt of compressor Fig.
  • Page 45 Admiral Series Removal Process for Outdoor Unit Operating Procedure/Photos top cover Remove top cover Twist off the screws used for fixing the top cover, pull it upward and then remove the top cover. As shown in fig 7-23 screw Fig.
  • Page 46 Operating Procedure/Photos Remove the cabinet After twisting off the screws used for fixing the cabinet, pull it upward slight and then remove the cabinet. As shown in fig cabinet 7-26 screw Fig. Remove outer case Twist off the screws used for fixing the outer case to remove it. outer case As shown in fig 7-27 screw...
  • Page 47 Admiral Series Operating Procedure/Photos Remove gas and liquid valves Unsolder the pipelines connected with the valve (avoid the welding gun burn out the chassis). Twist off the 2 bolts used for fixing the gas valve, unsolder the soldering joint between pipeline and gas valve and then remove the gas valve.
  • Page 48 Operating Procedure/Photos Remove 4-way valve soldering joint (only for heat pump unit) Twist off the fixing nut on 4-way valve coil and then remove 4-way valve the coil. Wrap the 4-way valve with wet cloth, unsolder the 4 soldering joint connected with the 4-way valve and then remove the 4-way valve.
  • Page 49 Admiral Series Removal Process for Outdoor Unit Operating Procedure/Photos 7.4.1 Remove front side plate Twist off the screws used for fixing the front side plate, slide it downward and then remove the front side plate. As shown in fig 7-35...
  • Page 50 Operating Procedure/Photos Remove outer case Twist off the 8 tapping screws used for fixing the panel and then remove the panel. As shown in fig 7-38 screw Fig. screw Remove electric box Twist off the screws used for fixing the electric box, pull out the connection wires between compressor, fan motor and electric box, pull it upward and then remove the electric box.
  • Page 51 Admiral Series Operating Procedure/Photos Remove axial flow blade fixing nut Remove the nuts on blade with wrench and then remove the axial flow blade. As shown in fig 7-41 axial blade Fig. Remove outdoor motor motor Twist off the 4 tapping screws used for fixing the motor, pull...
  • Page 52 Operating Procedure/Photos Remove capillary Unsolder the soldering joint between capillary and valve and exit tube of condenser and then remove the capillary. Please do not let the welding slag block the capillary when replacing capillary the capillary. As shown in fig 7-44 Fig.
  • Page 53 Admiral Series Exploded View and Parts List Exploded View for Indoor Unit...
  • Page 54 Parts' List for Indoor Unit Part Code Description GWCN09JANK1A1A/I GWHN09JANK1A1A/I Product Code CA225N0130 CA225N0120 Wall-Mounting Frame 1252006 1252006 Rear Case 22202078 22202078 Evaporator Assy 10024931 10024931 Cross Flow Fan 10352422 10352422 Ring of Bearing 76512203 76512203 Terminal Board 42010266 42010262 Water Tray 20182093 20182093...
  • Page 55 Admiral Series Part Code Description GWCN12JBNK1A1A/I GWHN12JBNK1A1A/I Product Code CA225N0150 CA225N0140 Wall-Mounting Frame 1252008 1252008 Rear Case 22202081 22202081 Evaporator Assy 100252401 100252401 Cross Flow Fan 10352023 10352023 Ring of Bearing 76512203 76512203 Terminal Board 42010266 42010262 Water Tray 20182092...

  • Page 56: Exploded View For Indoor Unit

    Exploded View for Indoor Unit...
  • Page 57 Admiral Series Parts' List for Indoor Unit Part Code Description GWCN18JCNK1A1A/I GWHN18JCNK1A1A/I Product Code CA225N0170 CA225N0160 Wall-M ountingFrame 1252218 1252218 RearCase 22202095 22202095 Evaporator Assy 100291002 100291002 Cross Flow Fan 10352016 10352016 Ringof Bearing 76512203 76512203 Terminal Board 42010266 42010262...
  • Page 58 Exploded View for Indoor Unit...
  • Page 59 Admiral Series Parts' List for Indoor Unit Part Code Description GWCN24JDNK1A1A/I GWHN24JDNK1A1A/I Product Code CA225N0560 CA225N0590 Wall-Mounting Frame 01252229 01252229 Rear Case 22202094 22202094 Evaporator Assy 01002546 01002546 Evaporator Support 24214082 24214082 Cross Flow Fan1 10354002 10354002 Cross Flow Fan2...

  • Page 60: Exploded View For Outdoor Unit

    Exploded View for Outdoor Unit...
  • Page 61 Admiral Series Parts' List for Outdoor Unit Part Code Description GWCN09JANK1A1A/O GWCN12JBNK1A1A/O Product Code CA225W0130 CA225W0150 Front Grill 22413433 22413433 Front Plate 01533027P 01533027P Small Handle 26233100 26233100 Metal Base 01203727 01203656 Isolation Sheet 01233066 01233066 Nut M6 70310131 70310131...
  • Page 62 Exploded View for Outdoor Unit...
  • Page 63 Admiral Series Parts' List for Outdoor Unit Part Code Description GWHN09JANK1A1A/O GWHN12JBNK1A1A/O Product Code CA225W0120 CA225W0140 Front Grill 22413433 22413433 Front Plate 01533027P 01533027P Small Handle 26233100 26233100 Metal Base 01203727 01203727 Isolation Sheet 01233066 01233066 Nut M6 70310131 70310131...
  • Page 64 Exploded View for Outdoor Unit...
  • Page 65 Admiral Series Parts' List for Outdoor Unit Part Code Description GWCN18JCNK1A1A/O GWHN18JCNK1A1A/O Product Code CA225W0170 CA225W0160 Handle 26235401 26235401 Axial Flow Fan 10333426 10333426 Motor LW48B 15013070 15013070 Motor Support 0170510701 0170510701 Condenser Assy 01113119 01113016 Condenser Clamp 01175202 01175202...
  • Page 66 Exploded View for Outdoor Unit...
  • Page 67 Admiral Series Parts' List for Outdoor Unit Part Code Description GWCN24JDNK1A1A/O GWHN24JDNK1A1A/O Product Code CA225W0560 CA225W0590 Axial Flow Fan 10335257 10335257 Motor LW68B 15015057 15015057 Motor Support 01703027 01703025 Condenser Assy 01113217 01113220 Condenser Clamp 01172001 01172001 Top Cover 01255262...

  • Page 68: Trouble Analysis

    9 9 9 9 9 Trouble Analysis Note: When replacing the controller, please make sure that the wire jumper is inserted into the new controller, otherwise the running LED will go out for 3s and blinks 15 times(the dual 8 will display C5) , and the unit can’t be turned on. Measure the insulation resistance to ground The breaker is tripped as soon as A/C is energized and make sure if there is electricity creepage...
  • Page 69 Admiral Series The setting temprature is Adjust the setting temperature improper Whether the cooling load is proper Check the forecast cooling load or not Check and fill out the leakage, then vacuumize it. Complement the The refrigerant is leaking or insufficient...
  • Page 70 The indoor fan motor is burned out or damaged, Replace the fan motor or the defective parts or there's malfunctionthe for heat protector The built-in heat protector of the motor breaks Replace the fan motor frequently because of subheating leaded by the abnormal motor The fan doesn’t run when setting the fan...
  • Page 71 Admiral Series There's malfunction for indoor controller or outdoor relay is broken (IC2003 is damaged, Replace the controller and the relay the connecting capacitor of relay coil is creepage, etc.) The outdoor unit and the compressor Connect the wire correctly basing on the drawing isn’t running in...
  • Page 72 PG Motor's Locked Protection H6 Possible Reasons: 1. The fan speed is too slow due to the blockage of the air outlet; 2. The fan blade is locked; 3.The motor is locked; 4.The capacitor of fan motor is damaged; 5. The motor is damaged; 6.
