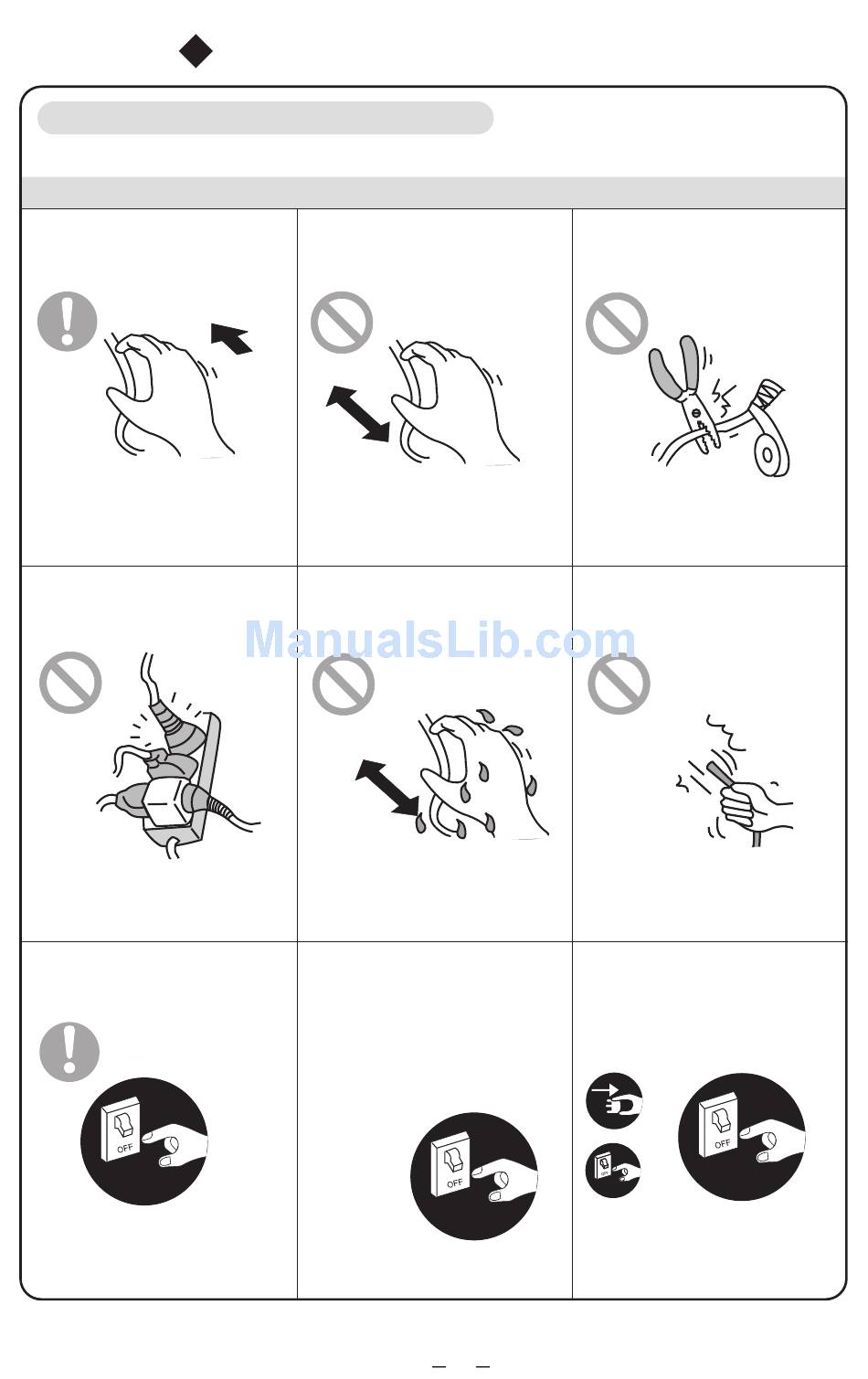

Please read the following carefully before operating.
★
The power supply must be
inserted tightly.
Otherwise, it can cause an
electric shock, overheating
or fire.
★
Don't use longer power lines
and don't share a same socket.
It can cause an electric shock
or fire.
★
When cleaning, it is nece-
ssary to stop driving and turn
off the power supply.
It can cause the electric shock.
Operation and maintenance-notices for operation
WARNING
★
Don't pull out the power
supply during operating.
It can cause an electric shock
or fire.
★
Don't operate the air
conditioner with wet hands.
It can cause an electric shock.
★
The air conditioner should be operated
with the voltage fluctuation, when the
voltage is very low, the compressor
vibrates terribly and that will damage
the refrigerant system.
220-240V~ 50Hz
★
Never splice the power cord
or use an extended cord.
It can cause overheating or fire.
★
Don't pull the power cord
to pull out the power supply.
It can cause an electric shock
or fire.
★
When having a burning smell
or smoke, please turn off the power
supply and contact with the service
center.
If the abnormity still exists, the unit
may be damaged, and may cause
electric shock or fire.
1
Advertisement
Table of Contents
Related Manuals for Gree GWCN09JANK1A1A
Summary of Contents for Gree GWCN09JANK1A1A
- Page 1 Operation and maintenance-notices for operation Please read the following carefully before operating. WARNING ★ ★ The power supply must be ★ Don't pull out the power Never splice the power cord inserted tightly. supply during operating. or use an extended cord. Otherwise, it can cause an It can cause an electric shock It can cause overheating or fire.
-
Page 2: Notices For Operation
Notices for operation ★ ★ Earth: The ground Be sure to disconnect power ★ Select the most appropriate tem- supply when not using the air perature. be connected! connditioner for a long time. Keep room coo- er than outside about 5 degree. If not, please ask the qualified person- nel to install. - Page 3 Notices for operation ★ The airflow direction can be adjusted appro- ★ The power cords of this air conditioner adopt priately. At operating, adjust the vertical airflow Y-type connection, please don't cut off or damage direction by adjusting the louvers of upward/do- the power cords and control cords.
-
Page 4: Notices For Use
Notices for use Working principle and special functions for cooling Principle: Air conditioner absorbs heat from indoors and then transmit it outdoors for discharging, so that indoor ambient temperature can be decreased.By this principle,its heating capacity will decrease with the increase of outdoor ambient temperature. Anti-freezing function: If the unit is running in COOL mode with low temperature, there will be frost formed on the heat exchanger, when indoor heat exchanger temperature is decreased below 0... - Page 5 Notices for use Anti-cool wind function: In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within 2 mins): 1. Heating starts 2.After Auto Defrost finished 3.Heating under the low temperature Gentle Breeze In the following situation, the indoor unit may blow gentle breeze, and the guide louver rotate to a certain position:...
-
Page 6: Names And Functions Of Each Part
Names and functions of each part Indoor unit Air in ⑴ ⑵ ⑶ ⑺ ⑹ ⑷ ⑸ Air out ⑵ Wireless ⑴ Power cable remote control Heating Cooling ⑵ Displayer Receiver Power/Run Front panel ⑶ Sleep Slient Set Temp ⑷ Filter ⑸... -
Page 7: Operation Of Wireless Remote Control
Operation of wireless remote control Name and function of wireless remote control Note: Besure that there are no obstructions between receiver and remote controoler; Don't drop or throw the remote control; Don't let any liquid in the remote control and put the remote control directly under the sunlight or any place where is very hot. - Page 8 Operation of wireless remote control Names and functions of wireless remote control This wireless remote control is universal, and it could be used for many units, some buttons of this control which are not available to this unit will not be described below. + button ●...
-
Page 9: I Feel Button
Operation of wireless remote control Name and function of wireless remote control This wireless remote control is universal, and it could be used for many units, some buttons of this control which are not available to this unit will not be described below. TIMER ON TIMER ON BUTTON ●... - Page 10 Operation of wireless remote control Name and function of wireless remote control ● Press this button, can select Sleep 1 ( ), Sleep 2 ( Sleep 3 ( ) and cancel the Sleep, circulate between these, after electrified, Sleep Cancel is defaulted. ●...
- Page 11 Operation of wireless remote control Name and function of wireless remote control (3) Under the initial presetting temperature21℃～27℃, after Sleep function started up, the temperature will decrease 1℃ in every hour, after 2℃ decreased, this temperature will be maintained. (4) Under the initial presetting temperature 28℃～30℃, after Sleep function started up, the temperature will decrease 1℃...
- Page 12 Operation of wireless remote control Guide for operation- general operation 1. After powered on, press ON/OFF button, the unit will start to run. (Note: When it is powered off, the guide louver of main unit will close automatically.) 2. Press MODE button, select desired running mode, or press COOL or HEAT mode to enter into the corresponding operation directly.
- Page 13 Operation of wireless remote control ★ About lock Press +and - buttons simultaneously to lock or unlock the keyboard. If the remote controller is locked, the icon will be displayed on it, in which case, press any button, the mark will flicker for three times.
-
Page 14: Operation Of Remote Control
Operation of remote control Changing batteries and notices 1.Slightly to press the place with , along the arrowhead direction to push the back cover of wireless remote control. (As show in Fig 1. ) 2.Take out the old batteries. 3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity. -
Page 15: Emergency Operation
Emergency operation Displayer indicator light control of indoor unit It's a special selective buttonfor the users ,who are not accustomed to the light at sleeping. ● Get the displayer indicator light on: When setting the light function,the mark will display on the remote controller screen by pressing this button. -
Page 16: Clean And Care
Clean and care Caution Turn power off and disconnect power supply before cleaning air conditioner, or it may cause ● ● electric shock. Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause ●... - Page 17 Clean and care Check before use ① Be sure that nothing obstructs the air outlet and intake vents. ② Check that whether ground wire is properly connected or not. ③ Check that whether the batties of air conditioner are changed or not. ④...
-
Page 18: Troubleshooting
Troubleshooting CAUTION Don't attempt to repair the air conditioner by yourself, it can cause an electric shock or fire. Please check the following items before asking for repair, it can save your time and money. Phenomenon Troubleshooting Not operate immediately when the air Once the air conditioner is stopped, it will ●... - Page 19 Troubleshooting Phenomenon Troubleshooting Has the power been shut down? ● The unit can not run Is power plug loosed? ● Is the circuit protection device tripped off or not? ● Is voltage higher or lower? ● (Tested by professionals) Breaking off Is the TIMER correctly used? ●...
- Page 20 There is an abnormal heat in power supply cord and power plug. After-sales service ☆ All the products of our company are guaranteed,please refer to the warranty card. ☆ If you have any problem,please contact specified repair center of Gree. ２０...
-
Page 21: Notices For Installation
Notices for installation Important Notices The unit installation work must be done by qualified personnel according to the local rules and this manual. If the air conditioner has not plug, directly connect it into the fixed circuit, a breaker should be installed in the fixed circuit. - Page 22 Notices for installation Safety Requirements For Electric Appliances The power supply should be used the rated voltage and AC exclusive circuit, the power cable diameter should be satisfied. Voltage applying range: the normal running range is rated voltage 220V 90%-110%. Don't drag the power cable emphatically.
-
Page 23: Installation Dimension Diagram
Installation dimension diagram Installation dimension diagram Space to the ceiling Above Space to the wall Above Above Space to the wall Above Above Air outlet side Space to the floor The dimensions of the space necessary for correct ● installation of the appliance including the minimum permissible distances to adjacent structures Installation dimension of outdoor units... -
Page 24: Install Indoor Unit
2.Do not wrench or bend the drain hose or flood its end by water. 3.When the long drainage hose passing through indoor, should wrap the insulation materials. Flooded Connect indoor and outdoor electric wires For GWCN09JANK1A1A, GWHN09JANK1A1A, 1.Open the surface panel. GWCN12JBNK1A1A, GWHN12JBNK1A1A, 2.Remove the wiring cover[Fig.6(a,b)]. GWCN18JCNK1A1A, GWHN18JCNK1A1A 3.Route the power connection cord... -
Page 25: Install The Indoor Unit
Install indoor unit For GWCN24JDNK1A1A, GWHN24JDNK1A1A Fig.6(b) blue blue black yellow-green black orange brown brown yellow-green violet signal control wire NOTE: Power connection wire Power connection wire When connecting the electric wire if the wire length is not enough, please contact with the authorized service shop to buy a exclusive electric wire that is long enough and the joint on the wire are not allowed. -
Page 26: Install Outdoor Unit
Install outdoor unit Electric wiring For GWCN09JANK1A1A, GWHN09JANK1A1A, GWCN12JBNK1A1A, GWHN12JBNK1A1A GWCN18JCNK1A1A, GWHN18JCNK1A1A Disassemble the handle on the outdoor unit right Cool only type: side plate. Take off wire clamp. Connect and fix power connect cord (for cooling and heating unit,connect and fix power... - Page 27 Install outdoor unit Air purging and leakage test 1. Connect charging hose of manifold valve to charge end of low pressure valve (both high/low pressure valves must be tightly shut). 2. Connect joint of charging hose to vacuum pump. 3. Fully open handle of Lo manifold valve. Liquid pipe 4.
-
Page 28: Check After Installation And Test Operation
Check after installation and test operation Check after installation Items to be checked Possible malfunction Has it been fixed firmly? The unit may drop, shake or emit noise. It may cause insufficient cooling(heating) Have you done the refrigerant leakage test? capacity. -
Page 29: Table Of Contents
CONTENTS Operation and maintenance ........1 ■ Notices for operation ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．４ ■ Notices for use ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．６ Names and functions of each ■ ．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．７ Operation of wireless remote control ■ ．．．．．．．．...．．......１５ Emergency operation ■ .. ..．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．..1６ Clean and care ■ ........１８ Troubleshooting Installation service ■... - Page 30 GWHN12JBNK1A1A GWCN18JCNK1A1A GWHN18JCNK1A1A GWCN24JDNK1A1A GWHN24JDNK1A1A Thank you for choosing GREE air conditioner .For correct operation, please read this owner's manual carefully before operating the unit and keeps it carefully for consultation. GREE ELECTRIC APPLIANCES,INC.OF ZHUHAI Add:Jinji west Rd.,Qianshan Zhuhai,Guangdong China.
