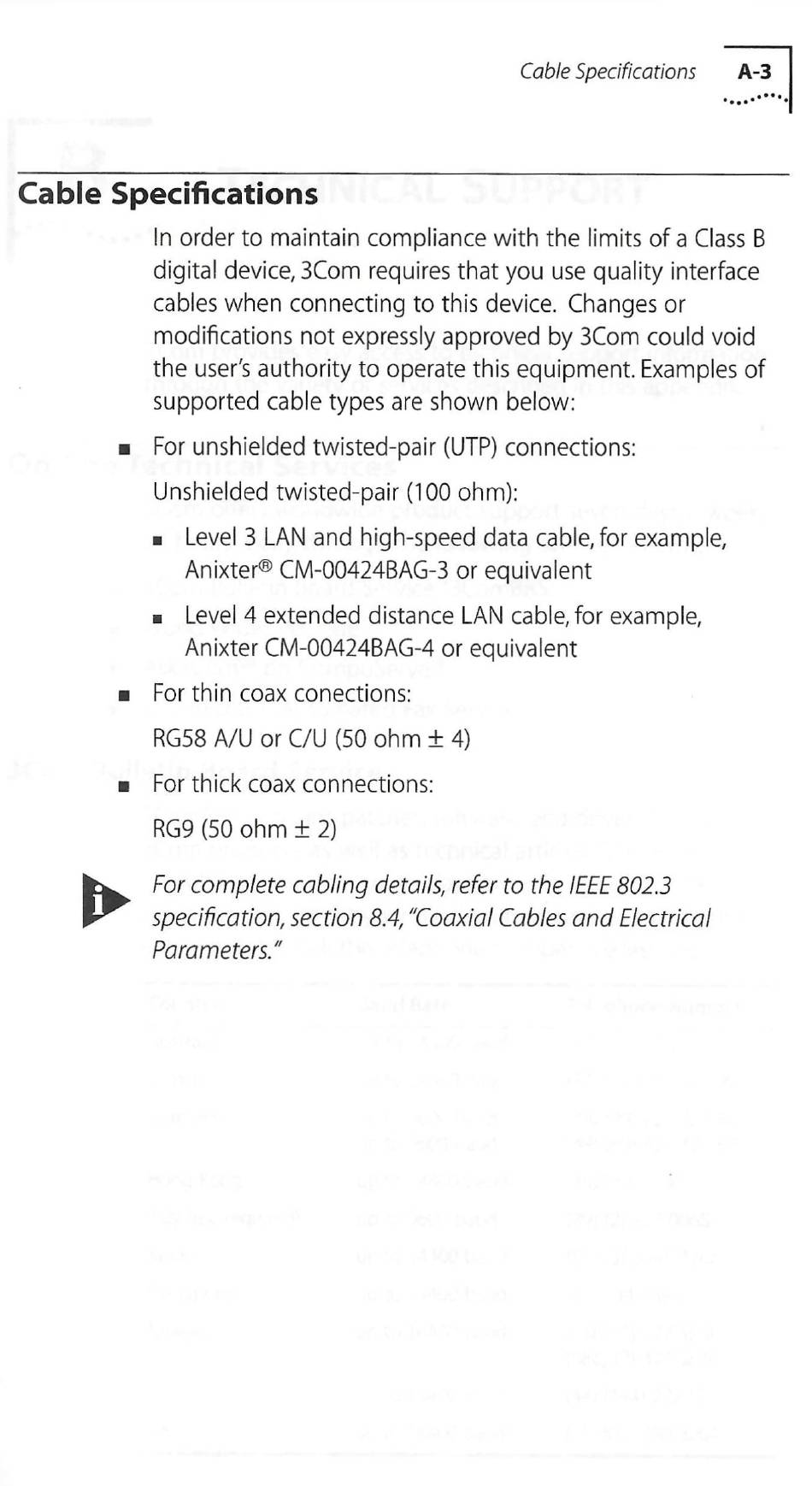

Cable Specifications

In order to maintain compliance with the limits of a Class B
digital device, 3Com requires that you use quality interface
cables when connecting to this device. Changes or
modifications not expressly approved by 3Com could void
the user's authority to operate this equipment. Examples of
supported cable types are shown below:
■ For unshielded twisted-pair (UTP) connections:
Unshielded twisted-pair (100 ohm):
■ Level 3 LAN and high-speed data cable, for example,
■ Level 4 extended distance LAN cable, for example,
■ For thin coax conections:
RG58 A/U or C/U (50 ohm ± 4)
■ For thick coax connections:
RG9 (50 ohm ± 2)
few For complete cabling details, refer to the IEEE 802.3
3^ specification, section 8.4, "Coaxial Cables and Electrical
Parameters."
Anixter® CM-00424BAG-3 or equivalent
Anixter CM-00424BAG-4 or equivalent
Cable Specifications
A -3
