3-6 C
hapter
4
The menu selection Configure Adapter appears already
highlighted. Press [Enter].

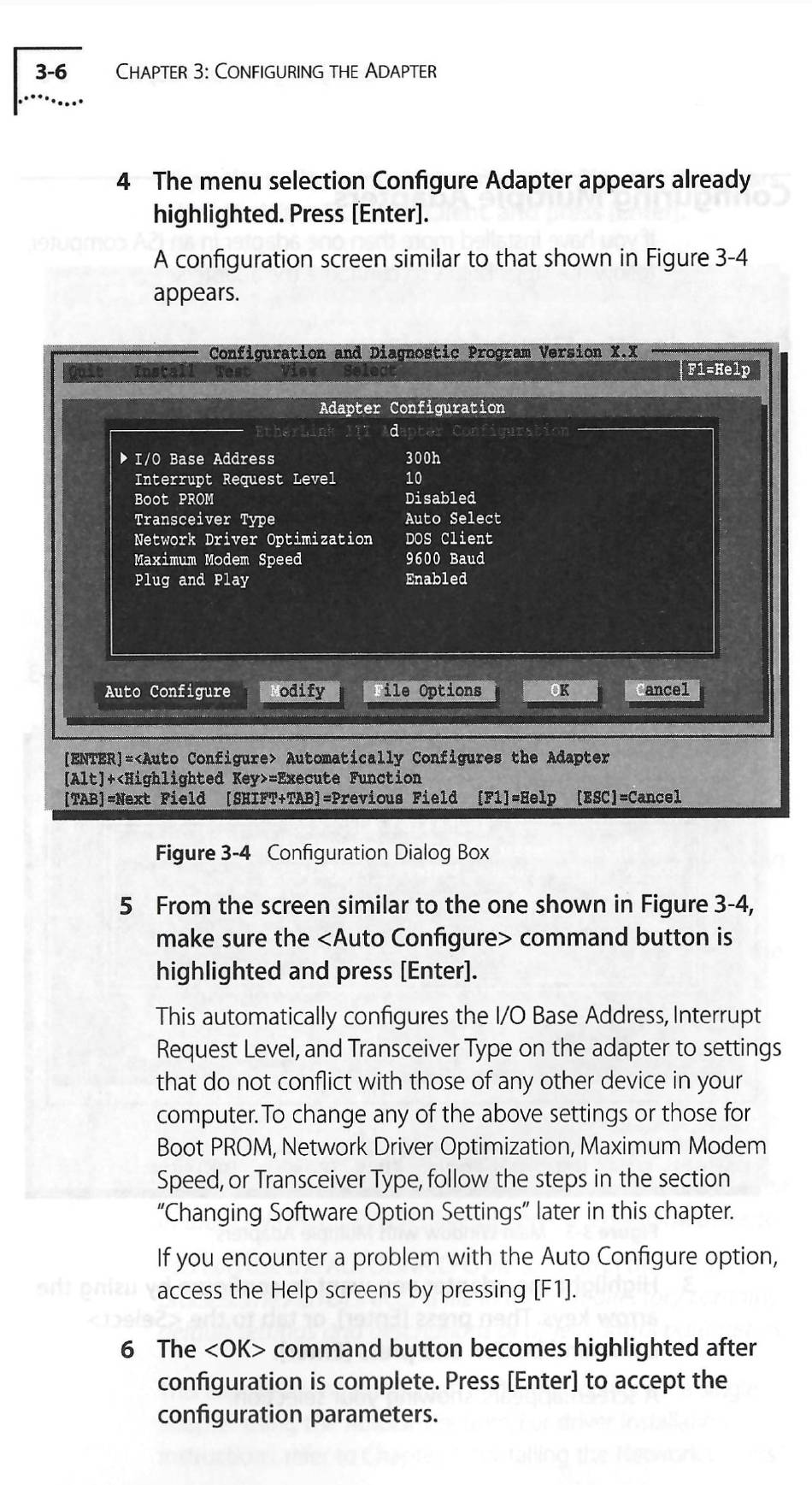

A configuration screen similar to that shown in Figure 3-4
appears.
Auto Configure
[ENTER]=<Auto Con£igure> Automatically Configures the Adapter
[Alt]+<Higfclighted Key>=Executa Function
[TAB]=Next Field
Figure 3-4 Configuration Dialog Box
5 From the screen similar to the one shown in Figure 3-4,
make sure the <Auto Configure> command button is
highlighted and press [Enter],
This automatically configures the I/O Base Address, Interrupt
Request Level, and Transceiver Type on the adapter to settings
that do not conflict with those of any other device in your
computer.To change any of the above settings or those for
Boot PROM, Network Driver Optimization, Maximum Modem
Speed, or Transceiver Type, follow the steps in the section
"Changing Software Option Settings" later in this chapter.
If you encounter a problem with the Auto Configure option,
access the Help screens by pressing [FI],
6 The <OK> command button becomes highlighted after
configuration is complete. Press [Enter] to accept the
configuration parameters.
3: C
onfiguring the
££££{^9 JB33330B3E HK3H IB "SB
[SHIFT+TAB]=Previous Field
A
dapter
[Fl]=Help [ESC]=Cancel
