A -2
A
ppendix

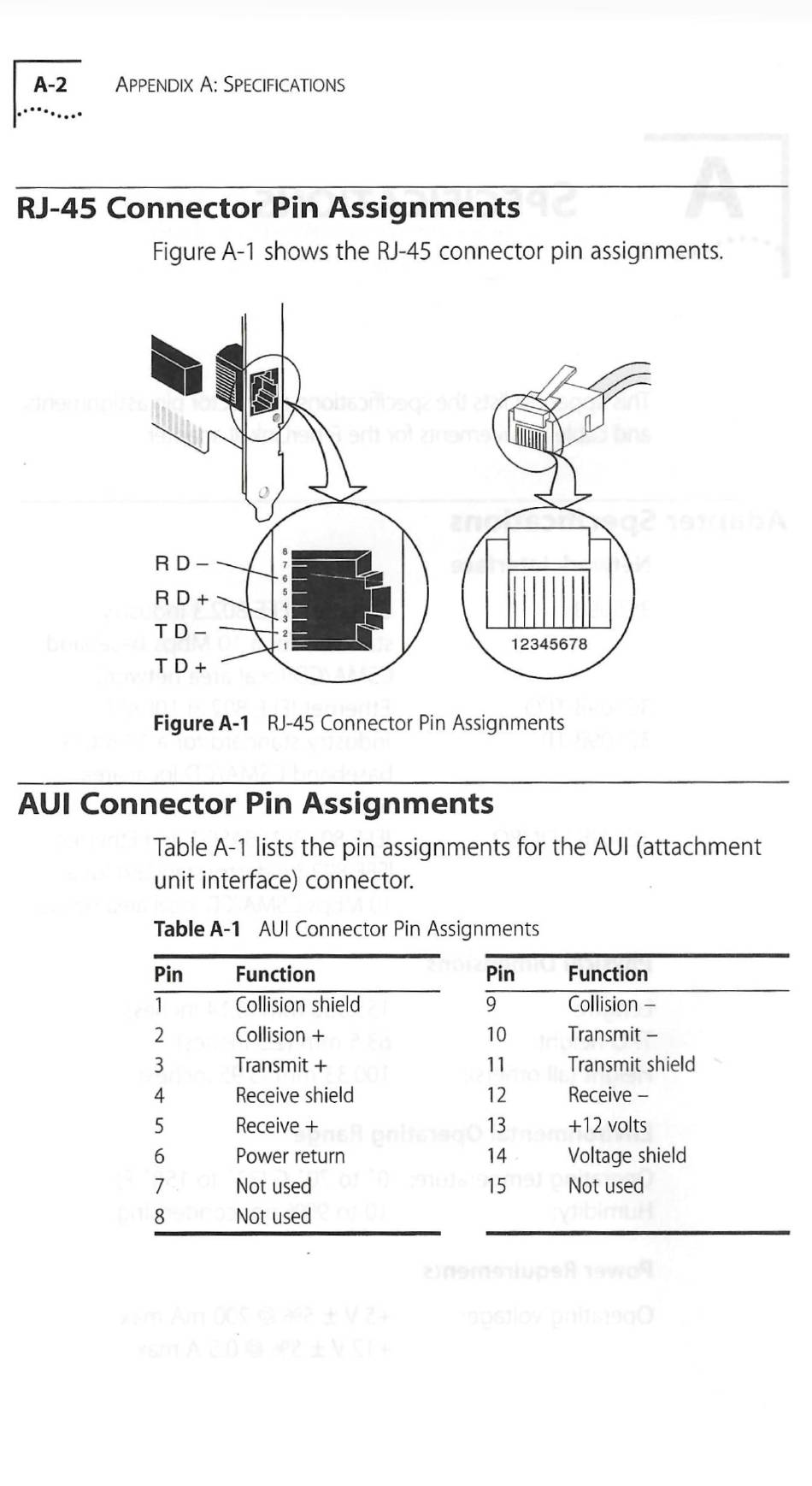

RJ-45 Connector Pin Assignments
Figure A-1 shows the RJ-45 connector pin assignments.
Figure A-1 RJ-45 Connector Pin Assignments
AUi Connector Pin Assignments
Table A-1 lists the pin assignments for the AUI (attachment
unit interface) connector.
Table A-1 AUI Connector Pin Assignments
Pin
1
2
3
4
5
6
7
8
A: S
pecifications
Function
Collision shield
Collision +
Transmit +
Receive shield
Receive +
Power return
Not used
Not used
Pin
Function
9
Collision -
10
Transmit -
1 1
Transmit shield
12
Receive -
13
+12 volts
14
Voltage shield
15
Not used
