2
Connect the AUI cable or transceiver to the AUI connector
on the adapter, as shown in Figure 2-3.

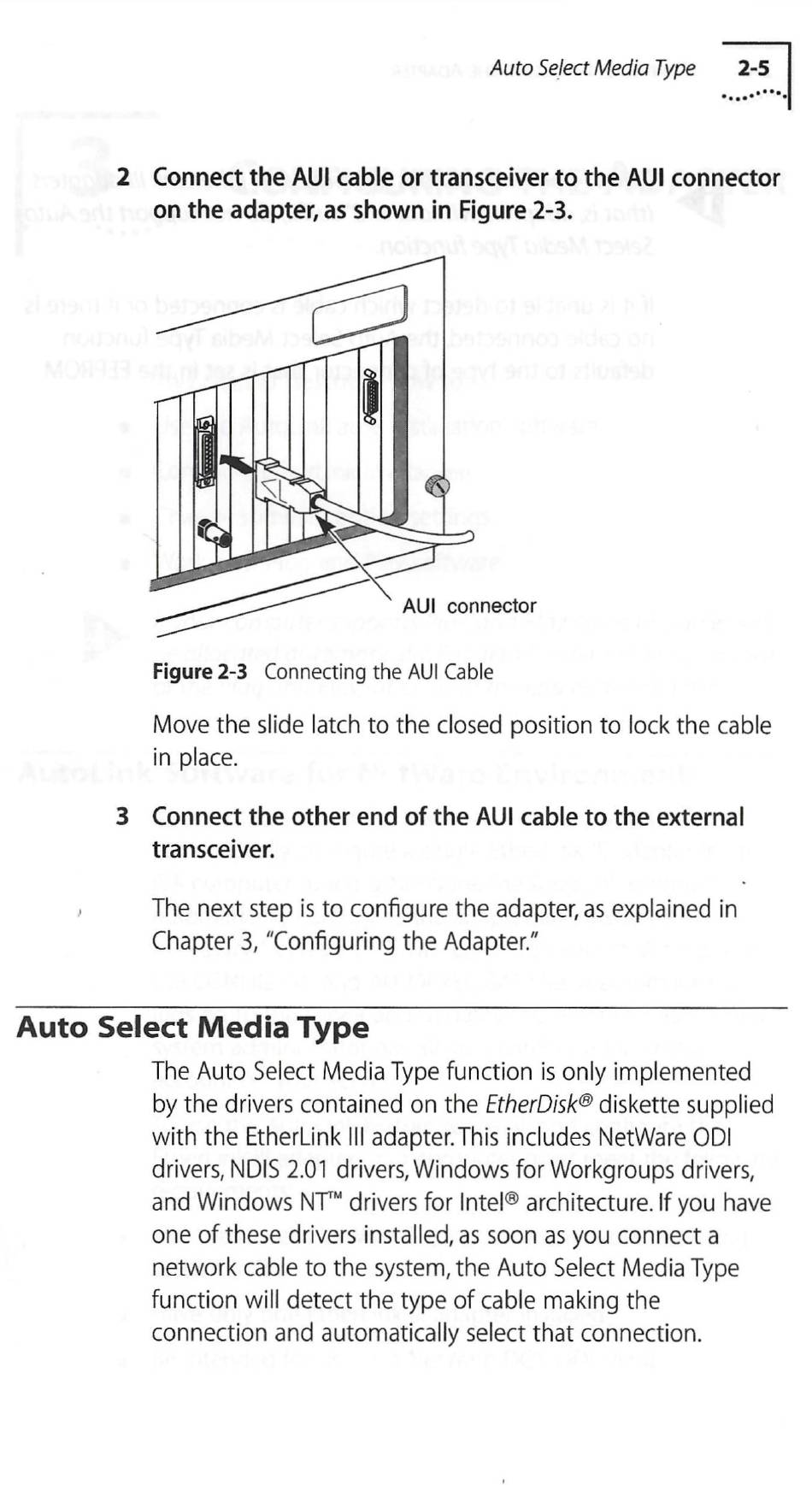

Figure 2-3 Connecting the AUI Cable
Move the slide latch to the closed position to lock the cable
in place.
3 Connect the other end of the AUI cable to the external
transceiver.
The next step is to configure the adapter, as explained in
Chapter 3, "Configuring the Adapter."

Auto Select Media Type

The Auto Select Media Type function is only implemented
by the drivers contained on the EtherDisk® diskette supplied
with the EtherLink III adapter.This includes NetWare ODI
drivers, NDIS 2.01 drivers, Windows for Workgroups drivers,
and Windows NT™ drivers for Intel® architecture. If you have
one of these drivers installed, as soon as you connect a
network cable to the system, the Auto Select Media Type
function will detect the type of cable making the
connection and automatically select that connection.
Auto Select Media Type
AUI connector
2-5
