57" Flush Mount Direct Drive Endura® Fan

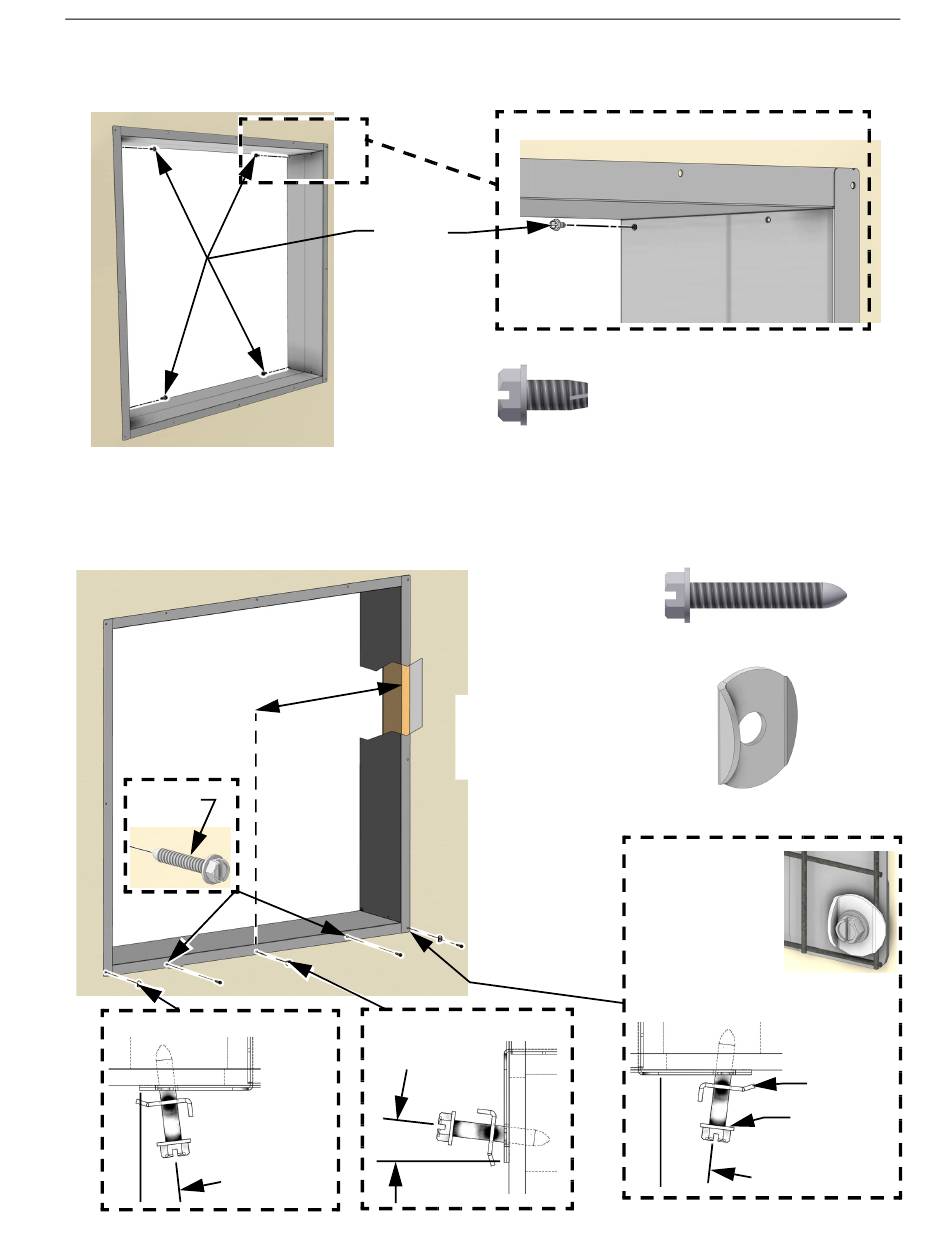

Step 2: Use four Self Tapping Screws (54683) to Fasten the Panels together using the holes provided
toward the outside of the house as shown. Other four Screws will be installed after squaring.
Step 3: Center the Bottom Panel and fasten to the wall with Screen Clip Washers (56671) and 1/4-10 x
1-1/2" Lag Screws (41561) as shown. Angle Lags away from Fan to allow for easier removal of
Screen later. Do not tighten down the Lag Screws at the Washer locations at this time. They will
be tightened later when the Screen is installed.
Center Bottom
Panel in the opening
(41561)
Top View
Lag Slightly
Angled
MV2494A
(54683)
(54683) 1/4-20 x 1/2" Screw
Attention! Do not tighten
Lags all the way at three
Washer locations.
Side View
(41561) 1/4-10 x 1-1/2" Lag Screw
(56671) Screen Clip Washer
Shown with
Screen Installed
for reference
only.
Top View
Lag Slightly
Angled
Installation
(56671)
(41561)
