Control Signal Wiring

See the Invertek Quick Start Guide that comes packaged with the VFD for VFD wiring instructions. Further
information is also available in the Invertek ODE-3 IP66 Outdoor User Guide (MV2493). It can be viewed online
at www.choretime.com/documents, Manuals, Ventilation, Fans & Shutters, 57-Inch Endura Fans, MV2493.

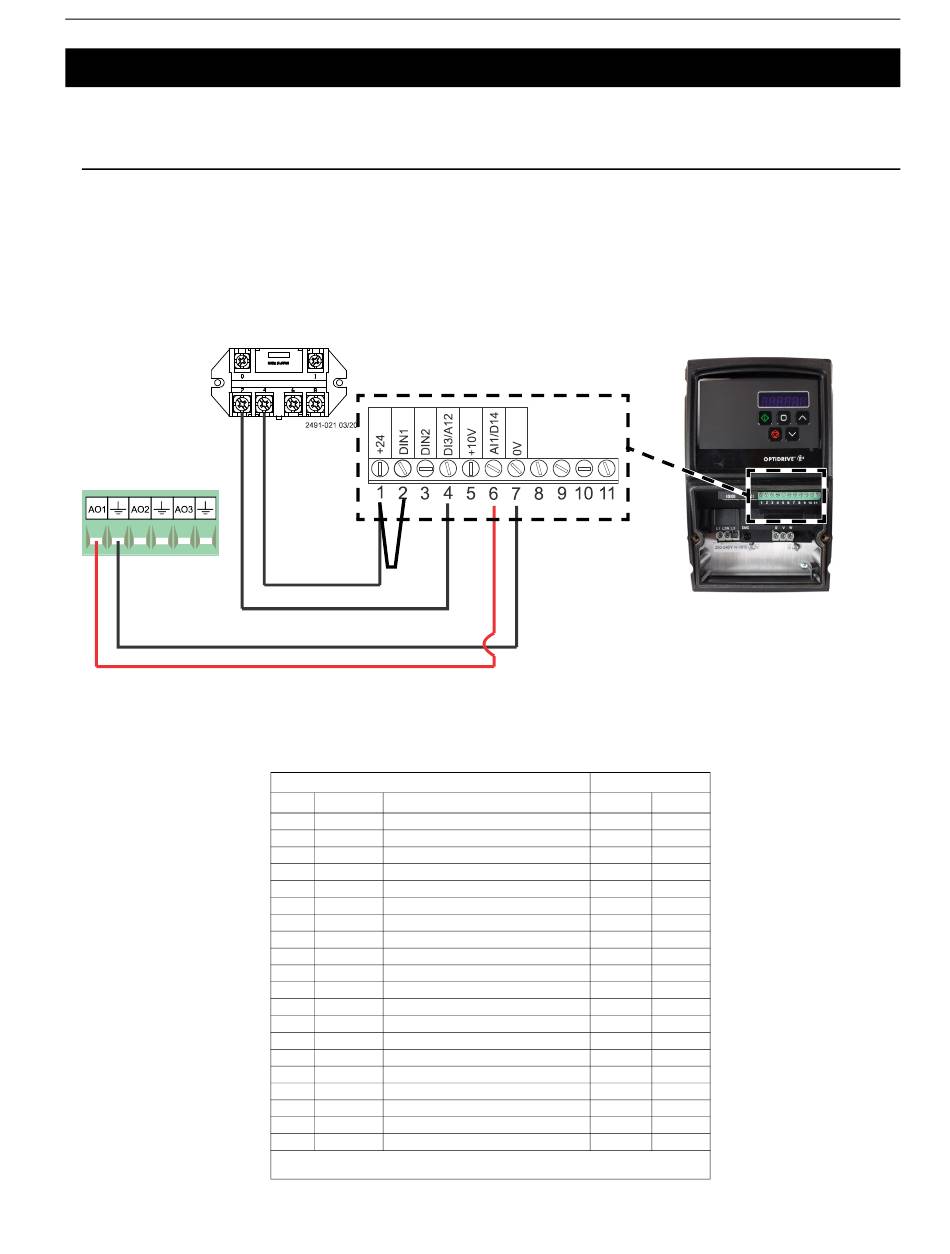

For variable speed fan control connect the 10-0 vdc analog signal from the main control to VFD terminals 6
(positive) and 7. The Fan will run full speed with an analog signal of 0 vdc and slow down to a stop as the signal
is increased to 10 vdc.
For optional Fan Backup Control, in case of main control failure, connect a backup relay to terminals 1 and 4. The
Fan will run full speed when the backup relay contacts are closed.
The jumper from terminals 1 to 2 is required for Fan operation.
Backup Box Relay (Optional)
CT3 Analog Out

Drive Parameters

The Drives come pre-programmed with parameters for operation with the corresponding 57" Direct Drive Endura
Fans. The following parameter have been changed from the drive default values:
MV2494A
No. Defaults Description
P-01 60 Maximum Frequency/Speed Limit (rpm)
P-03 5 Acceleration Ramp Time (sec)
P-04 5 Deceleration Ramp Time (sec)
P-05 0 Stop Mode Select
P-06 0 Energy Optimiser
P-07 230 Motor Rated Voltage
P-09 60 Motor Rated Frequency (Hz)
P-10 0 Motor Rated Speed (rpm)
P-13 0 Industrial / Fan-Pump Control Mode
P-14 0 Extended Menu Access Code
P-16 U 0-10 Analog input 1 Format
P-30 Edge-r Terminal Mode Restart Function
P-33 0 Spin Start Enable
P-48 0.0 Standby' Activation Delay Time (sec)
P-51 0 Motor Control Mode
P-54 150 Maximum Current Limit
P-55 1.40 Motor Stator Resistance
P-56 120 Motor Stator d-axis Inductance (Lsd)
P-57 12.0 Motor Stator q-axis Inductance (Lsq)
P-60 o 0 Thermal Overload Management
*Last digits of the 56541 Programmed VFD Part Numbers are the Parameter Set numbers,
ie "-2" parameter set is used in the 56541-3-2 VFD
Control Signal Wiring
Parameter Sets*
-1 -2
630 630
3 3
30 30
4 4
1 1
170 303
42 42
630 630
2 2
201 201
U10-0 U10-0
Auto-5 Auto-5
1 1
0.1 0.1
2 2
110 110
3.4 9.8
25 57
26 55.7
o 1 o 1
