Installation

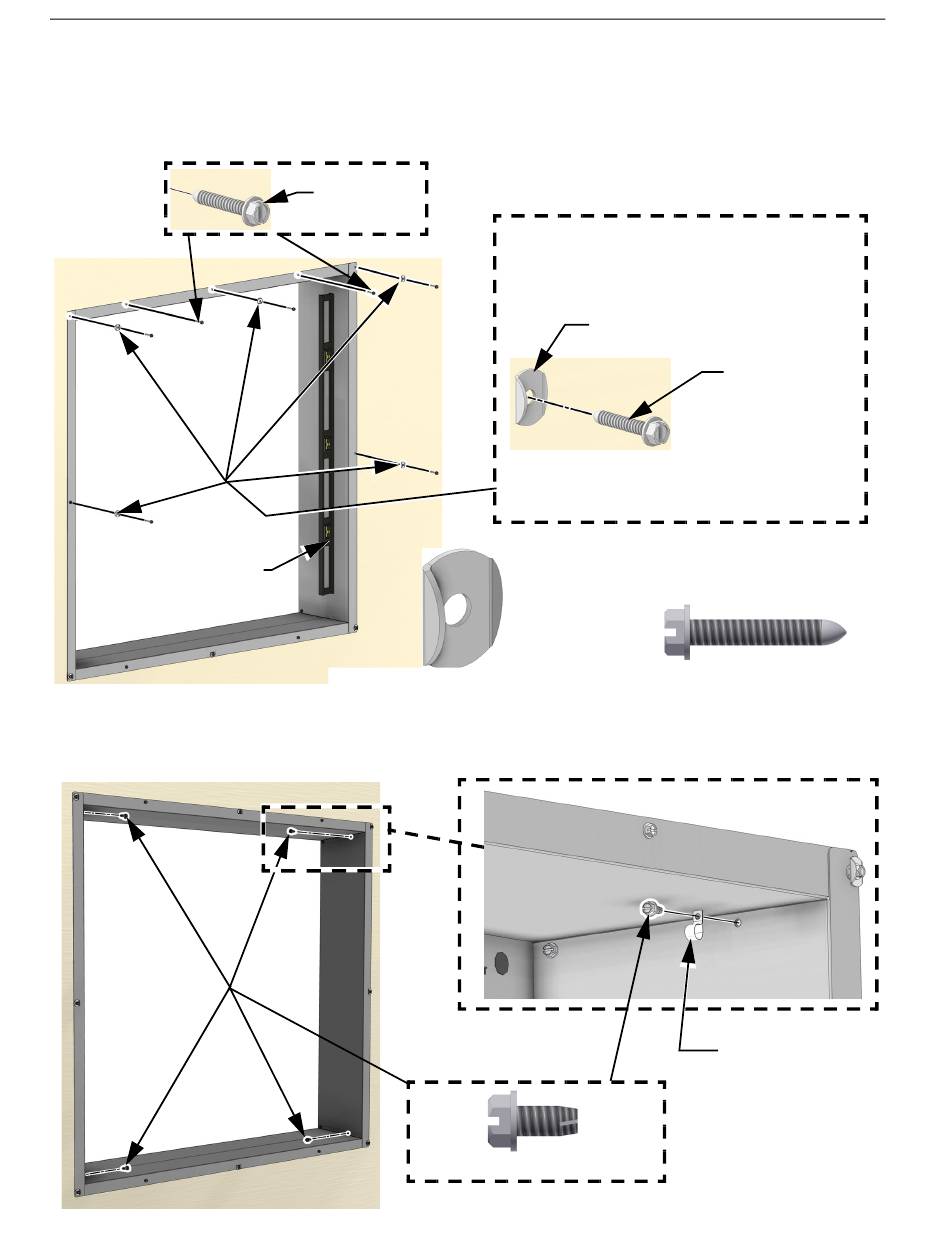

Step 4: Use a Level to level the Side Panels and attach them to the Wall with Screen Clip Washers
(56671) and 1/4-10 x 1-1/2" Lag Screws (41561) as shown. Angle Lag Screws away from Fan
as shown on the previous page. Do not tighten down the Lag Screws at the Washer locations at
this time. They will be tightened later when the Screen is installed.
Level the Side Panels
Step 5: Use four Self Tapping Screws (54683) to finish fastening the Panels together. Install a Nylon
Cord Clip (565) in the top corner nearest where the VFD Control will be mounted as shown. See
"Fan Drive (VFD) Mounting" on page 17.
10
(41561)
(56671) Screen Clip Washer
(54683) 1/4-20 x 1/2" Screw
57" Flush Mount Direct Drive Endura® Fan
Attention! Angle Lags away from Fan at
Washer Locations. (see previous page)
(56671)
Attention! Do not tighten Lags all the
way at five Washer locations.
(41561) 1/4-10 x 1-1/2" Lag Screw
(41561)
(565)
Nylon Cord Clip
MV2494A
