57" Flush Mount Direct Drive Endura® Fan Installation
Attaching the Fan to the Extension Housing

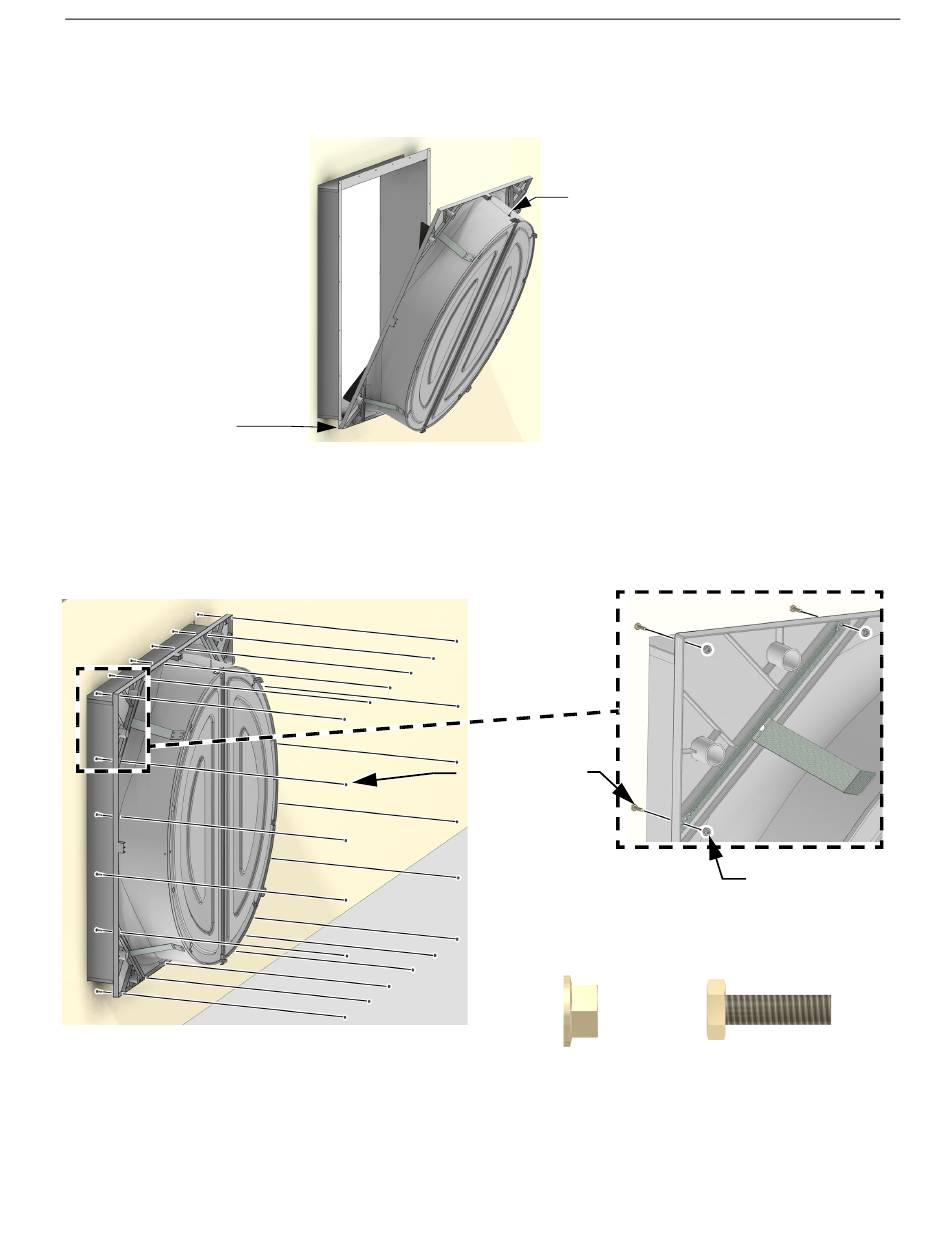

Step 1: Set the Fan on the Bottom Panel Shelf as shown.
Eyebolt indicates the top of the Fan
Shelf
Step 2: Attach the Shroud to the Extension Box Panels with 20x 1/4-20 x 7/8" SS Bolts (4404-17) and
1/4-20 Flange Nuts (46298) as shown.
20x (4404-17)
20x (46298)
(4404-17)
(46298)
1/4-20 Flange Nut 1/4-20 x 7/8" SS Bolt
