Grill Installation - Chore-Time Endura Installation And Operator's Manual

Installation

Grill Installation

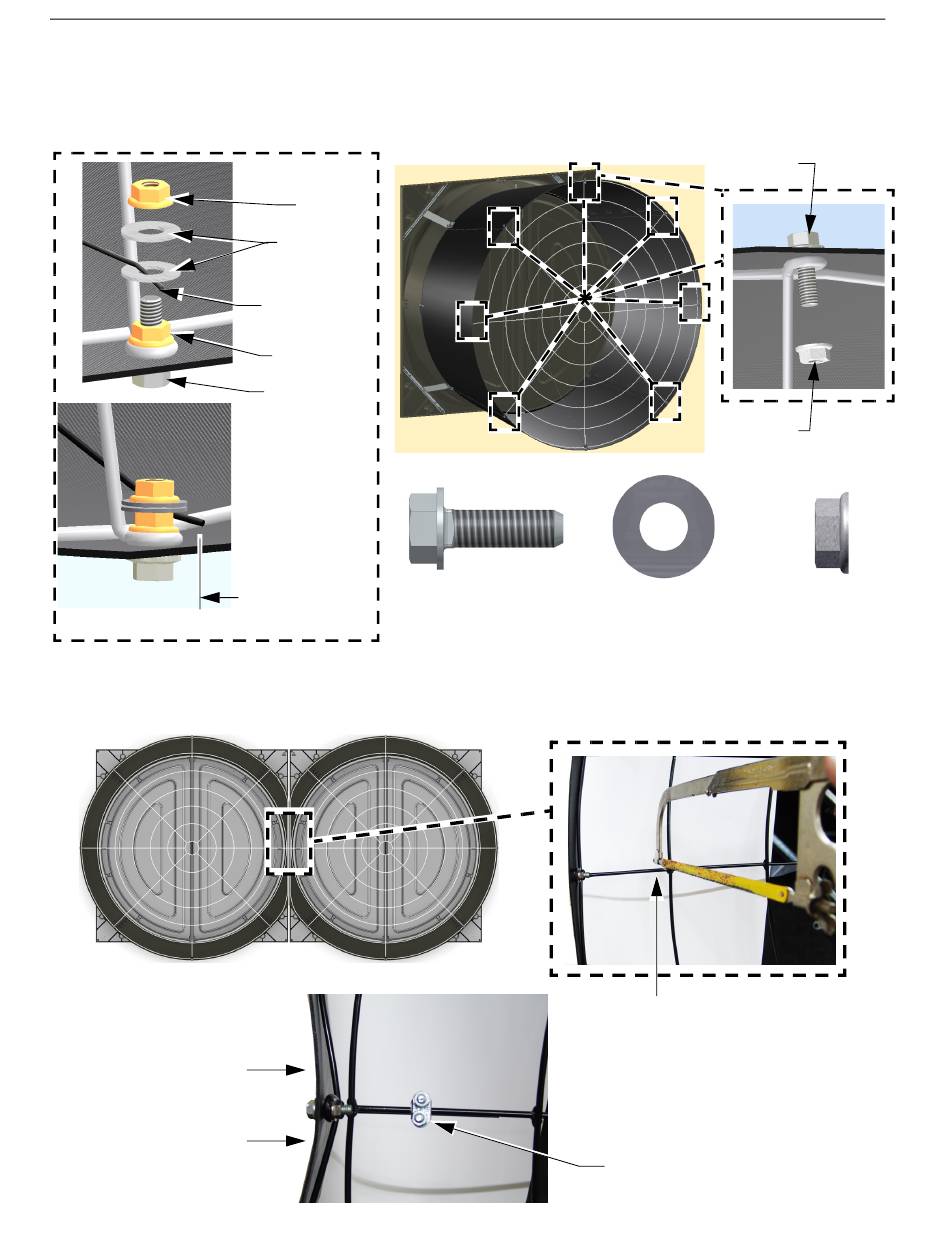

Install the Fan Cone Grill (as shown). Attach the end of the Door Stop Cable to the
bottom Grill Leg as shown.
If it is desired to Mount Fans at the minimum spacing cutting the Grills is required as
shown.
Push the Cone Side
in and use a Clamp to
secure the Grill
Wires.
16
(46764)
(ST99070)
Door Stop
Cable
(46764)
(54287)
Door Stop Cable
even with the
edge of Cone
5/16-18 x 1.00 Bolt
57" Flush Mount Direct Drive Endura® Fan
(54287)
(ST99070)|
3/8 SS Flat Washer
Cut the Grill here
(732) Clamp (In Parts Package)
(54287)
(46764)
(46764)
5/16 Flg. Nut
