Cone Installation - Chore-Time Endura Installation And Operator's Manual

Installation

Cone Installation

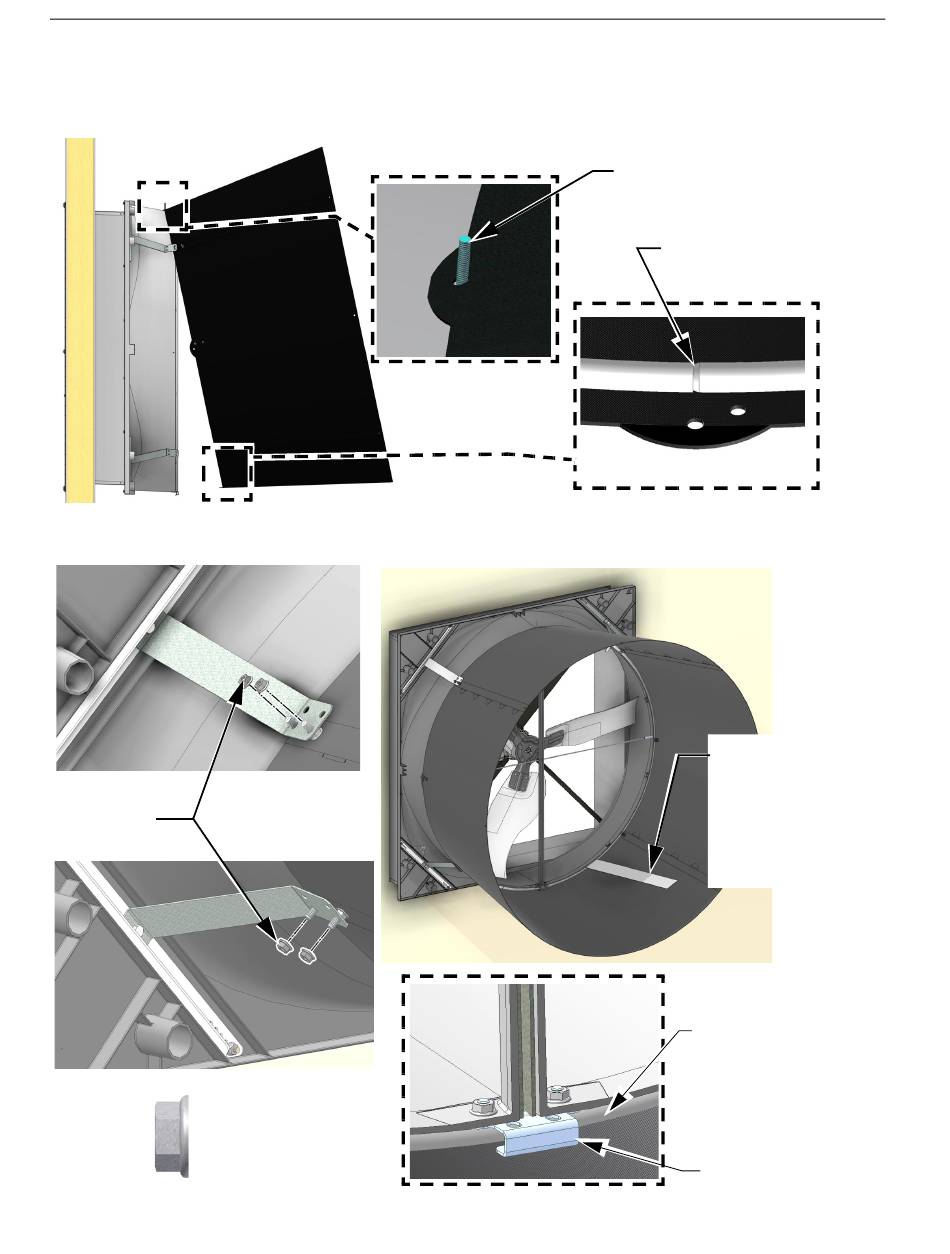

Step 1: Hang the Cone on the Eye-Bolt extruding from the top of the Shroud using the hole in the Cone
as shown.
Step 2: Attach the Cone to the Shroud with 5/16 Flg. Nuts (46764) as shown
(46764)
(46764) 5/16 Flg. Nut
14
57" Flush Mount Direct Drive Endura® Fan
(30663) Eyebolt
Seam in Orifice Frame
If necessary, slip a
thin piece of metal
between the Shroud
and Cone and work
it around the Cone
to get it on.
Slip the Orifice Frame
behind the Bottom
Pivot Plate.
Bottom
Pivot Plate
MV2494A
