I/O Connector

The 50-pin user I/O connector (J12) incorporates the two COM ports, four USB ports,
programmable LED, power LED, push-button reset, power button, audio line in/out, and speaker
interfaces. The following figure and tables describe the J12 connector:

Figure 12 shows the pin orientation of the J12 connector.

Table 6 lists the function of each pin on the J12 connector.

Table 14 on page 38 shows how the pins of the J12 connector map to the connectors on
the VL-CBR-5016 paddleboard.
VL-EPU-3310 Reference Manual

Interfaces and Connectors

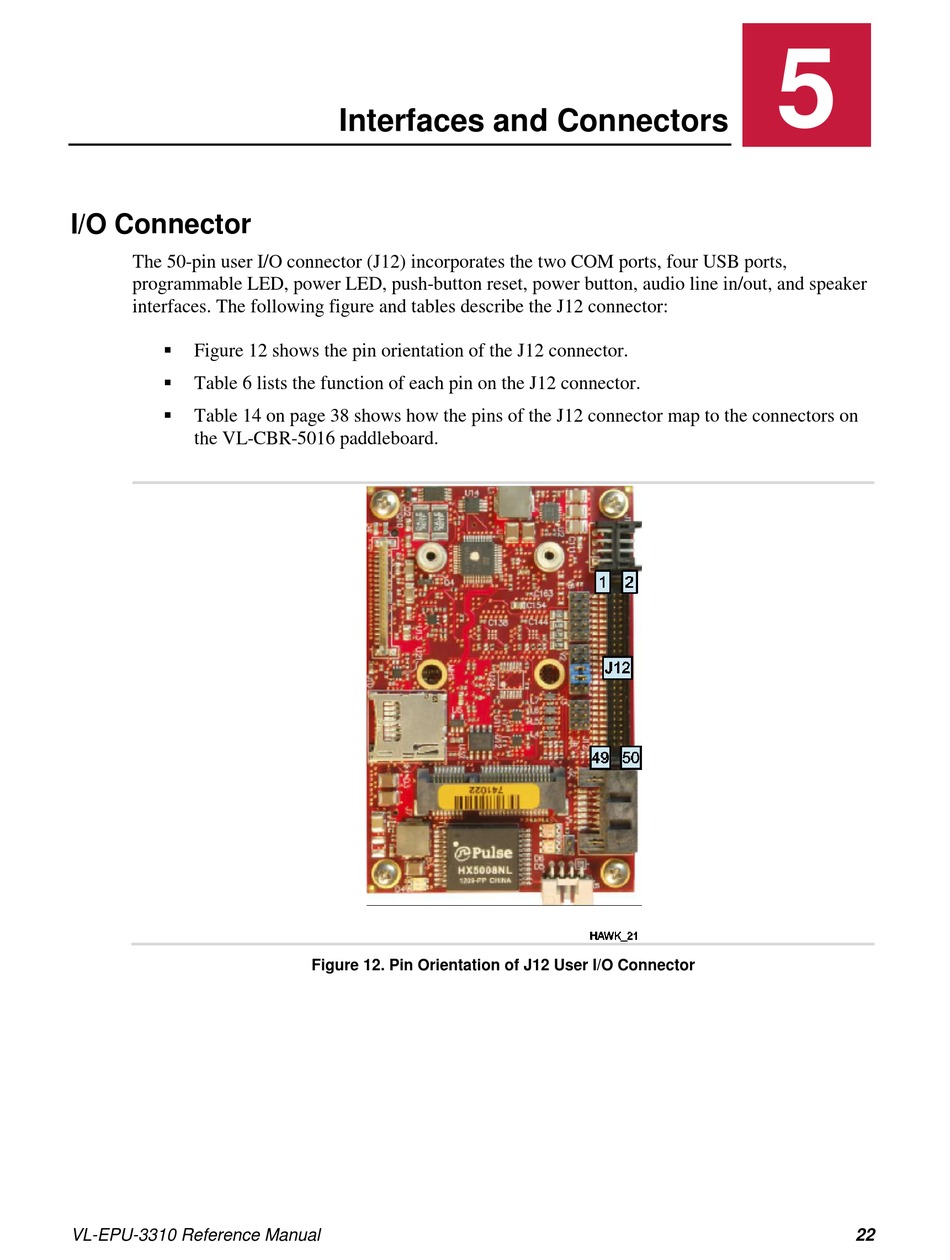

Figure 12. Pin Orientation of J12 User I/O Connector

5
22
