Interfaces and Connectors

Ethernet Status LEDs

A dual green/yellow status LED is provided at location D4. This LED provides an indication of
the Ethernet status as shown in Table 8. Figure 16 shows the location of the Ethernet status LED.

Table 8: On-board Ethernet Status LEDs (D4)

LED State Description
Yellow Activity
Green/Yellow (Link/Activity) Green Link
Off No Link

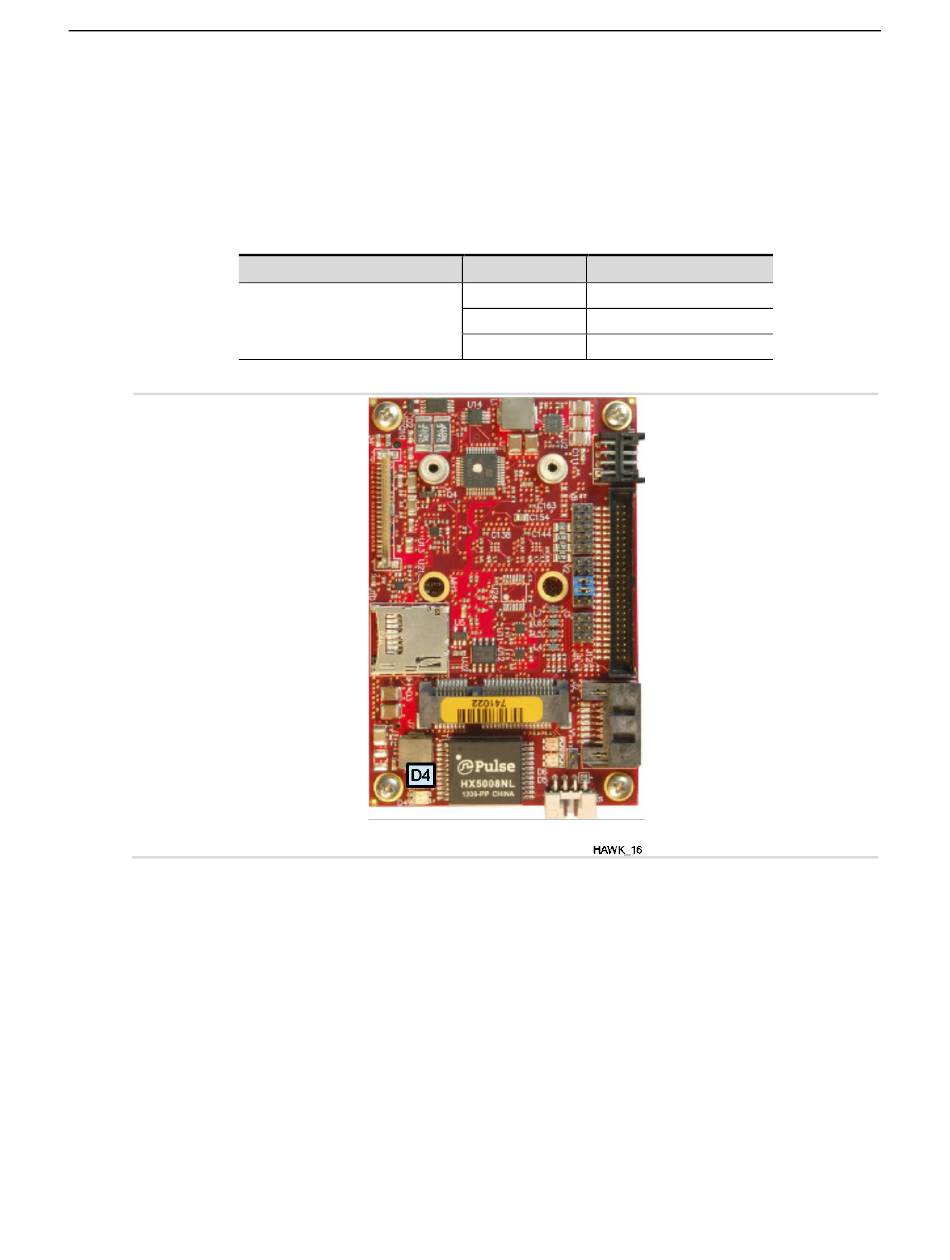

Figure 16. Onboard Ethernet Status LED

VL-EPU-3310 Reference Manual 27
