S5U13700B00C Rev 1.0 Evaluation Board
Rev. 1.1
JP9 - RESET# Source
JP9 is used to select the source of the RESET# signal to the S1D13700.
When the jumper is at position 1-2, the S1D13700 is reset by the on-board reset button
(SW1).
When the jumper is at position 2-3, the S1D13700 is reset by the system (connector P1, pin
21).

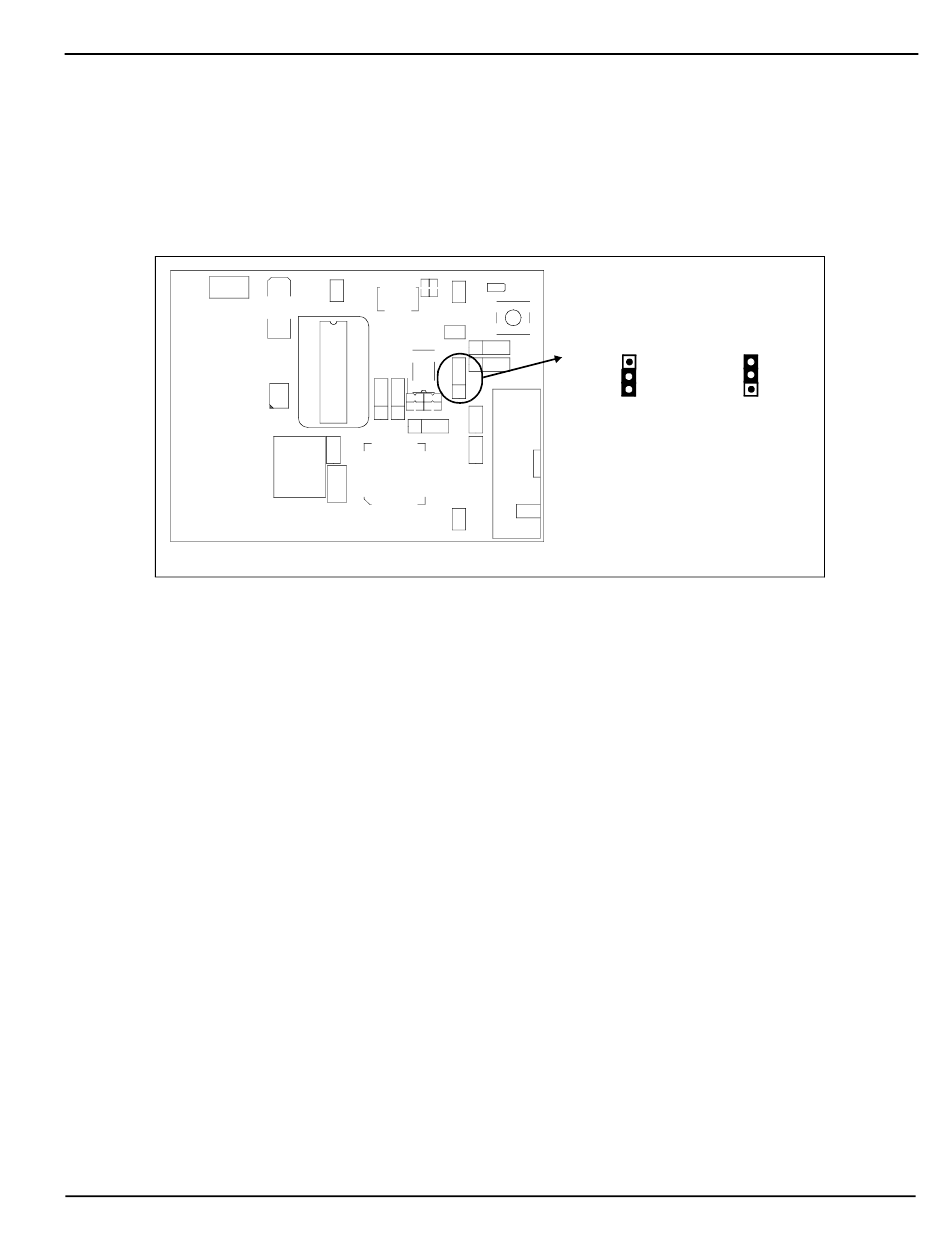

Top View
Figure 3-10: Configuration Jumper JP9 Location
Seiko Epson Corporation
Installation and Configuration
JP9
Manual reset
Host interface reset
17
