Installation and Configuration
14
JP5 - CLKI Input Disable
JP5 is used to disable the S1D13700 clock input that is not used by connecting it to ground.
When the jumper is at position 1-2, CLKI input is disabled.
When the jumper is at position 2-3, XCG1 input is disabled.
Note
When jumper JP5 is at position 1-2, jumper JP6 must also be at position 1-2.
When jumper JP5 is at position 2-3, jumper JP6 must also be at position 2-3.

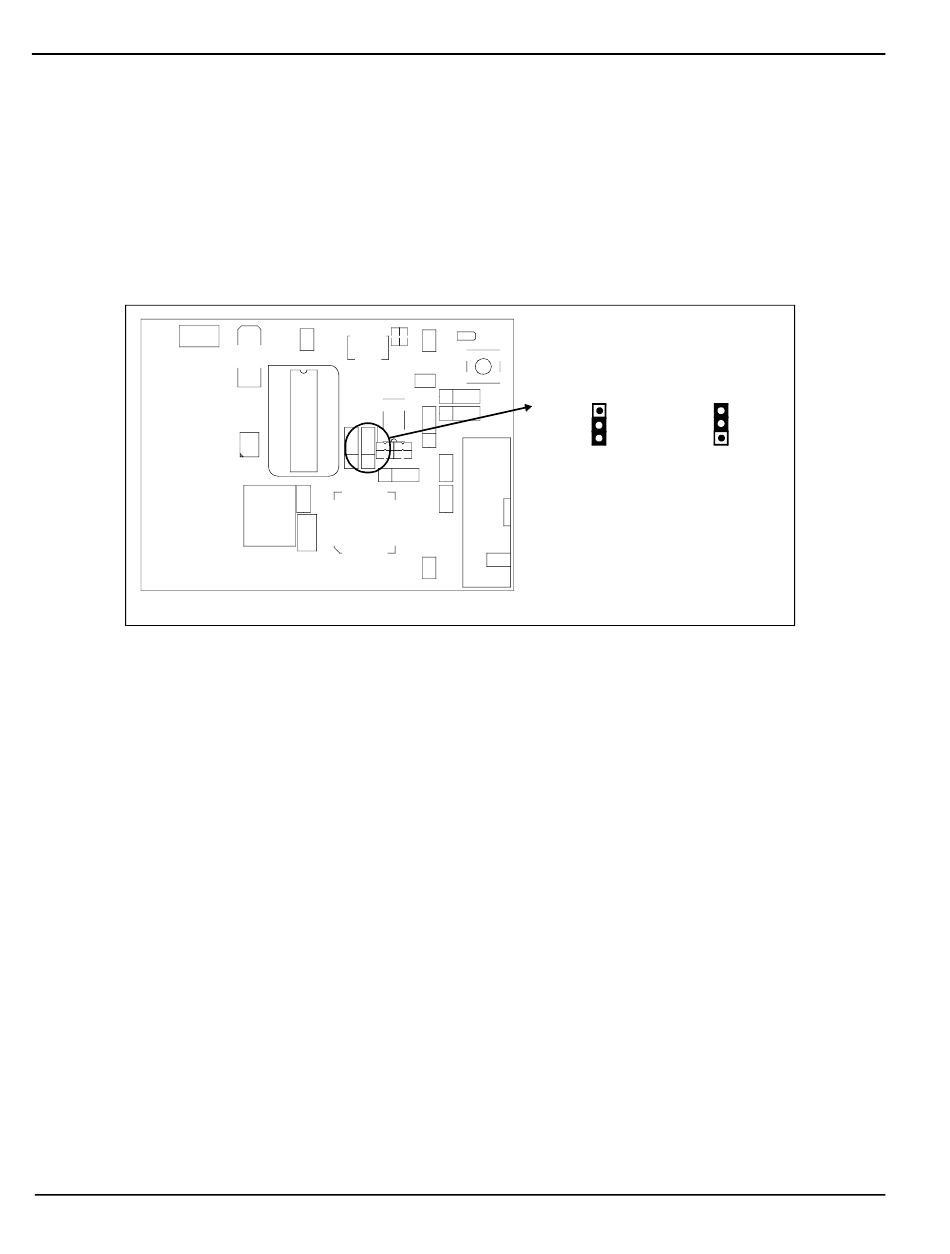

Top View
Figure 3-6: Configuration Jumper JP5 Location
Seiko Epson Corporation
JP5
Disable XCG1input
Disable CLKI input
S5U13700B00C Rev 1.0 Evaluation Board
