S5U13700B00C Rev 1.0 Evaluation Board
Rev. 1.1
JP4 - CLKI Source
JP4 is used to select the clock source for the S1D13700 CLKI input.
When the jumper is at position 1-2, the clock source is the on-board oscillator (U2).
When the jumper is at position 2-3, the clock source is from the host interface connector
(connector P1, pin 4).
Top View

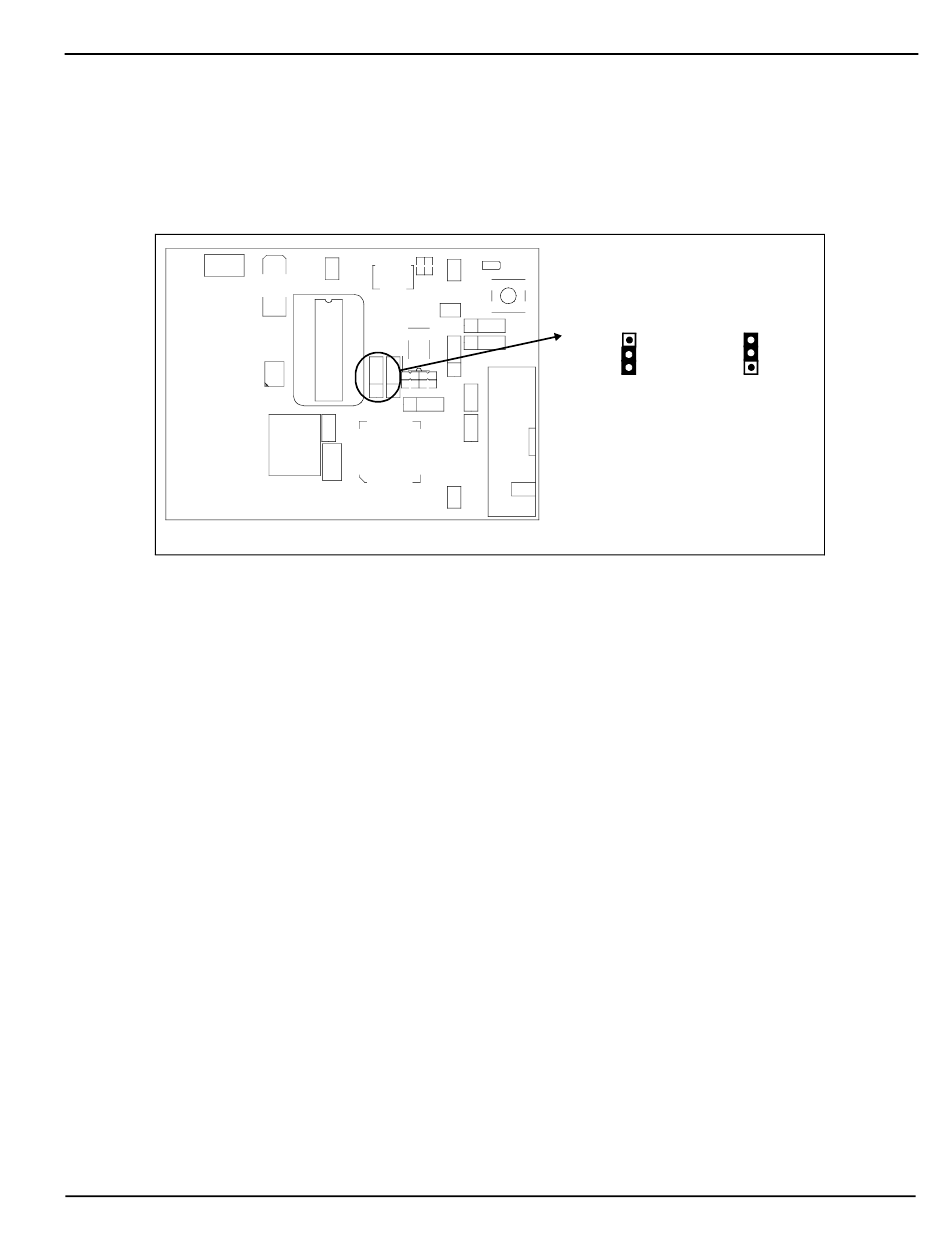

Figure 3-5: Configuration Jumper JP4 Location
Seiko Epson Corporation
Installation and Configuration
JP4
On-board oscillator
Host interface
(U2)
connector
13
