Note
S5U13700B00C Rev 1.0 Evaluation Board
Rev. 1.1
JP6 - Crystal Enable
JP6 is used to enable or disable the S1D13700 crystal output (XCD1).
When the jumper is at position 1-2, XCD1 output is enabled by connecting it to the crystal.
When the jumper is at position 2-3, XCD1 output is disabled by disconnecting it from the
crystal.
When jumper JP6 is at position 1-2, jumper JP5 must also be at position 1-2.
When jumper JP6 is at position 2-3, jumper JP5 must also be at position 2-3.

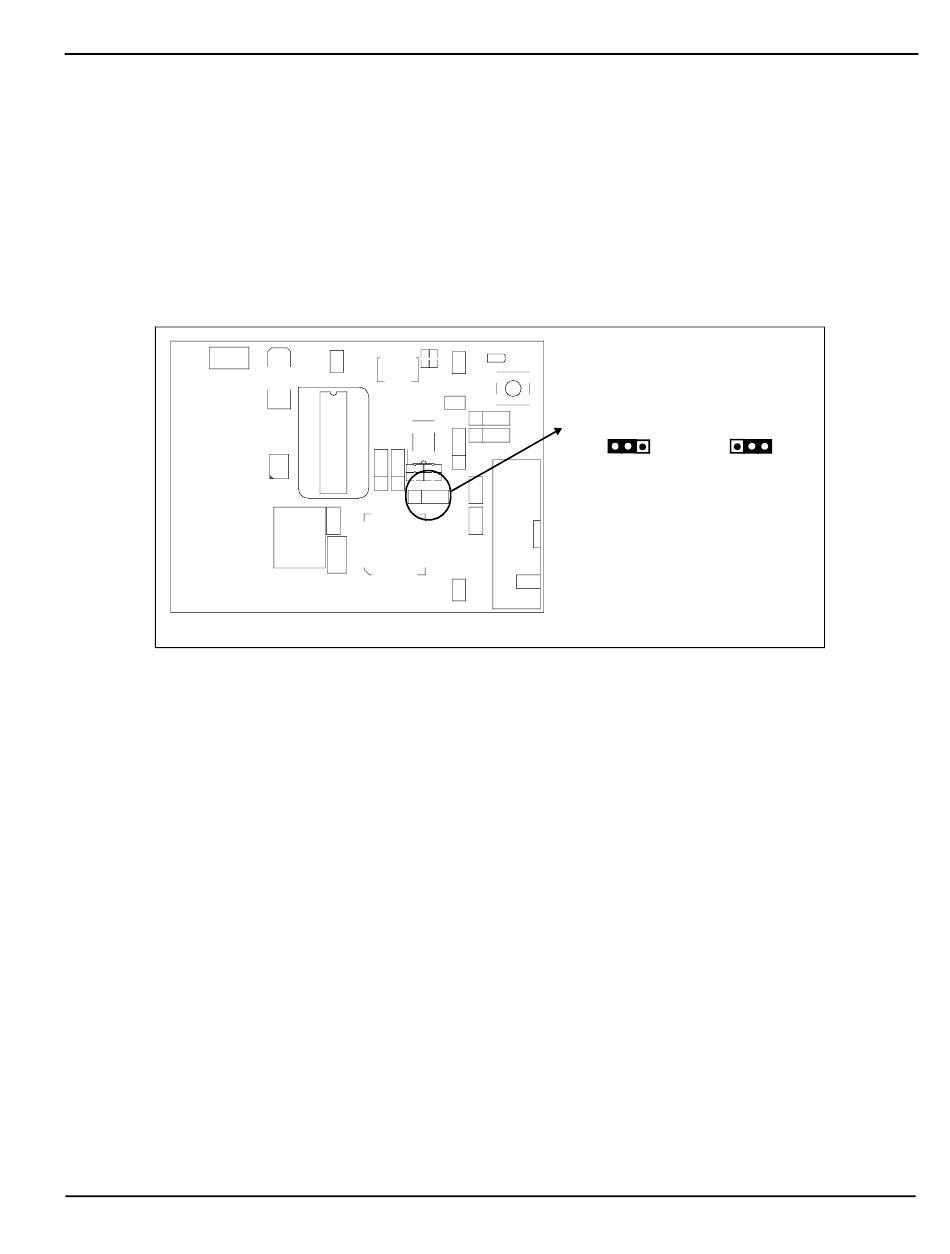

Top View
Figure 3-7: Configuration Jumper JP6 Location
Seiko Epson Corporation
Installation and Configuration
JP6
Enable XCD1 output Disable XCD1
output
