Installation and Configuration
16

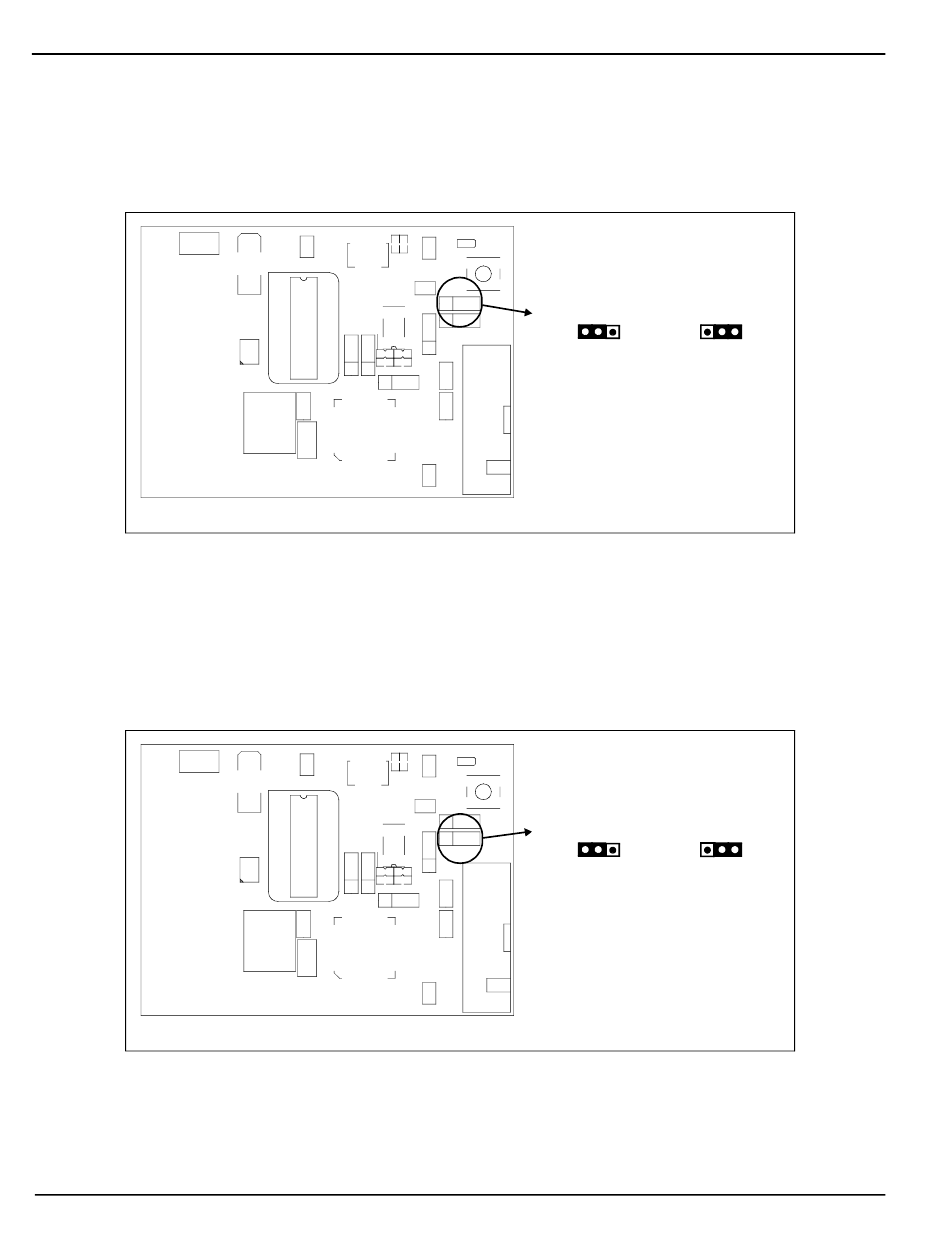

JP7 - HIOVDD Voltage
JP7 is used to select the voltage for HIOVDD.
When the jumper is at position 1-2, HIOVDD is +3.3V.
When the jumper is at position 2-3, HIOVDD is +5V.
Top View
Figure 3-8: Configuration Jumper JP7 Location
JP8 - NIOVDD Voltage
JP8 is used to select the voltage for NIOVDD.
When the jumper is at position 1-2, NIOVDD is +3.3V.
When the jumper is at position 2-3, NIOVDD is +5V.
Top View
Figure 3-9: Configuration Jumper JP8 Location
Seiko Epson Corporation
JP7
+3.3V
JP8
+3.3V
S5U13700B00C Rev 1.0 Evaluation Board
+5V
+5V
Rev. 1.1
