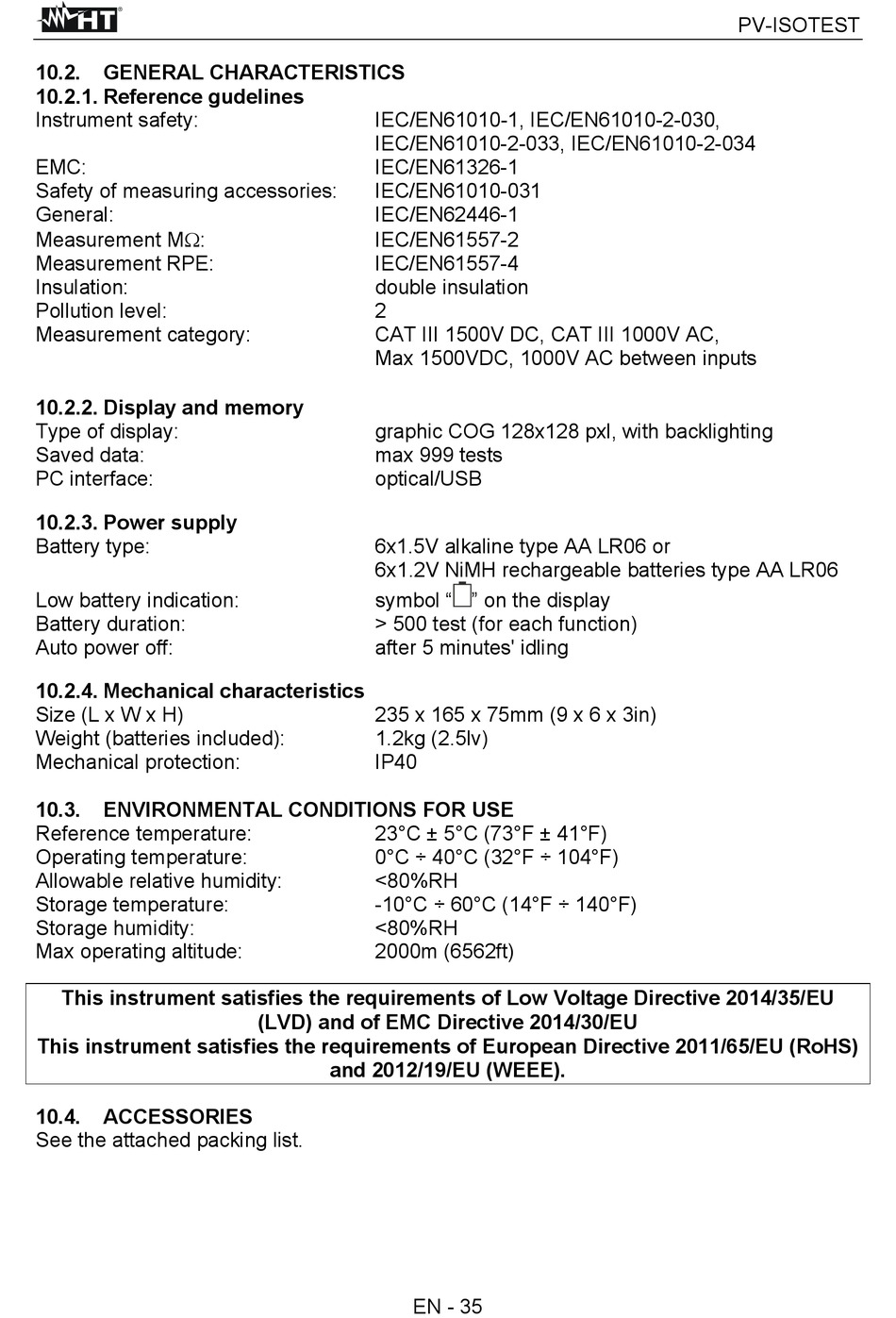

10.2.

GENERAL CHARACTERISTICS

10.2.1. Reference gudelines

Instrument safety:
EMC:
Safety of measuring accessories:
General:
Measurement M:
Measurement RPE:
Insulation:
Pollution level:
Measurement category:

10.2.2. Display and memory

Type of display:
Saved data:
PC interface:

10.2.3. Power supply

Battery type:
Low battery indication:
Battery duration:
Auto power off:

10.2.4. Mechanical characteristics

Size (L x W x H)
Weight (batteries included):
Mechanical protection:
10.3.

ENVIRONMENTAL CONDITIONS FOR USE

Reference temperature:
Operating temperature:
Allowable relative humidity:
Storage temperature:
Storage humidity:
Max operating altitude:
This instrument satisfies the requirements of Low Voltage Directive 2014/35/EU
This instrument satisfies the requirements of European Directive 2011/65/EU (RoHS)
10.4.

ACCESSORIES

See the attached packing list.
IEC/EN61010-1, IEC/EN61010-2-030,
IEC/EN61010-2-033, IEC/EN61010-2-034
IEC/EN61326-1
IEC/EN61010-031
IEC/EN62446-1
IEC/EN61557-2
IEC/EN61557-4
double insulation
2
CAT III 1500V DC, CAT III 1000V AC,
Max 1500VDC, 1000V AC between inputs
graphic COG 128x128 pxl, with backlighting
max 999 tests
optical/USB
6x1.5V alkaline type AA LR06 or
6x1.2V NiMH rechargeable batteries type AA LR06
symbol " " on the display
> 500 test (for each function)
after 5 minutes' idling
235 x 165 x 75mm (9 x 6 x 3in)
1.2kg (2.5lv)
IP40
23°C ± 5°C (73°F ± 41°F)
0°C ÷ 40°C (32°F ÷ 104°F)
<80%RH
-10°C ÷ 60°C (14°F ÷ 140°F)
<80%RH
2000m (6562ft)
(LVD) and of EMC Directive 2014/30/EU
and 2012/19/EU (WEEE).
