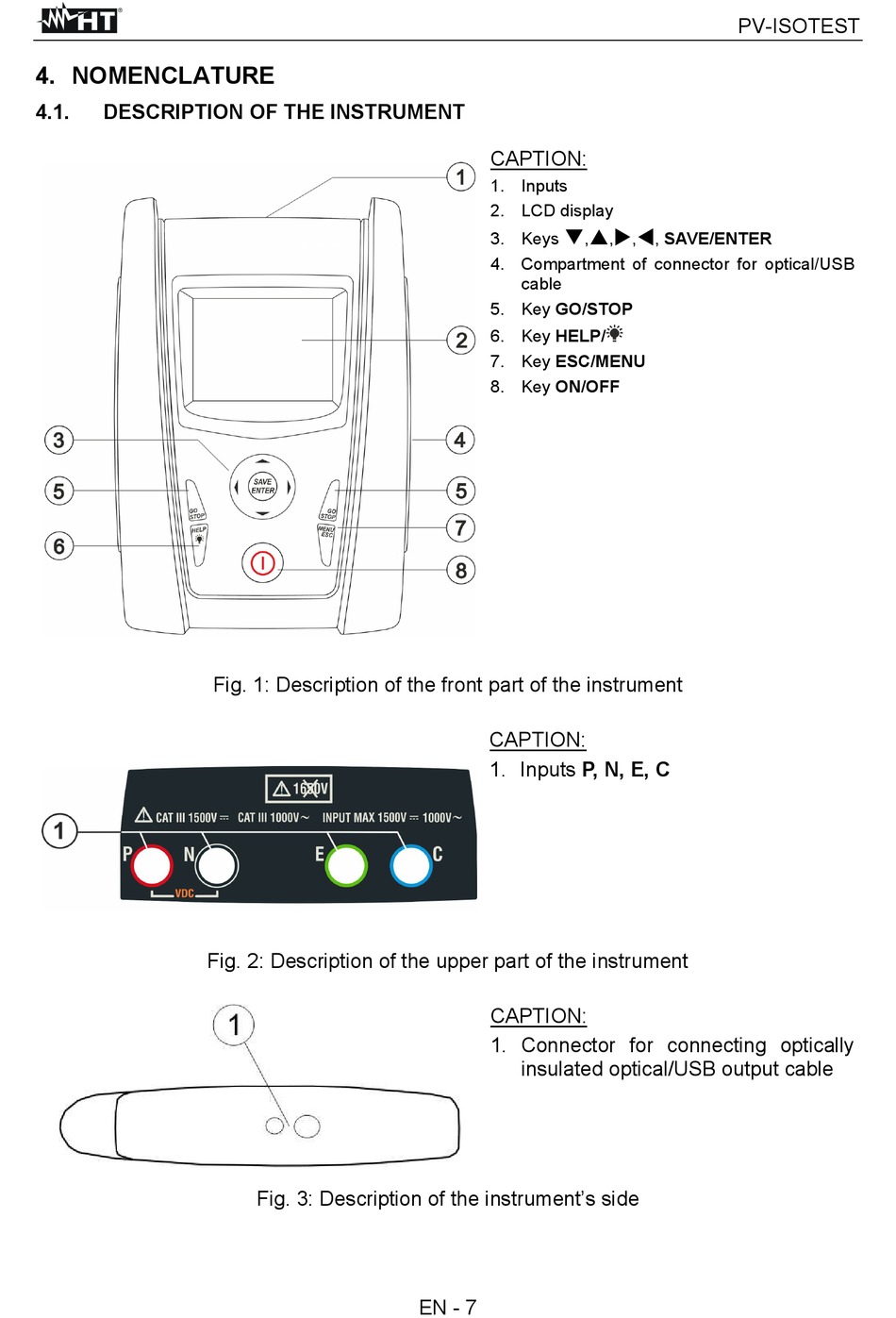

4. NOMENCLATURE

4.1.

DESCRIPTION OF THE INSTRUMENT

Fig. 1: Description of the front part of the instrument
Fig. 2: Description of the upper part of the instrument
Fig. 3: Description of the instrument's side
CAPTION:
1. Inputs
2. LCD display

3. Keys ,
4. Compartment of connector for optical/USB
cable
5. Key GO/STOP
6. Key HELP/
7. Key ESC/MENU
8. Key ON/OFF
CAPTION:
1. Inputs P, N, E, C
CAPTION:
1. Connector for connecting optically
insulated optical/USB output cable
EN - 7
PV-ISOTEST
  
, , , SAVE/ENTER
