HT HT5 User Manual

Lamp tester
Hide thumbs Also See for HT5:
Table of Contents

Advertisement

Quick Links

Download this manual

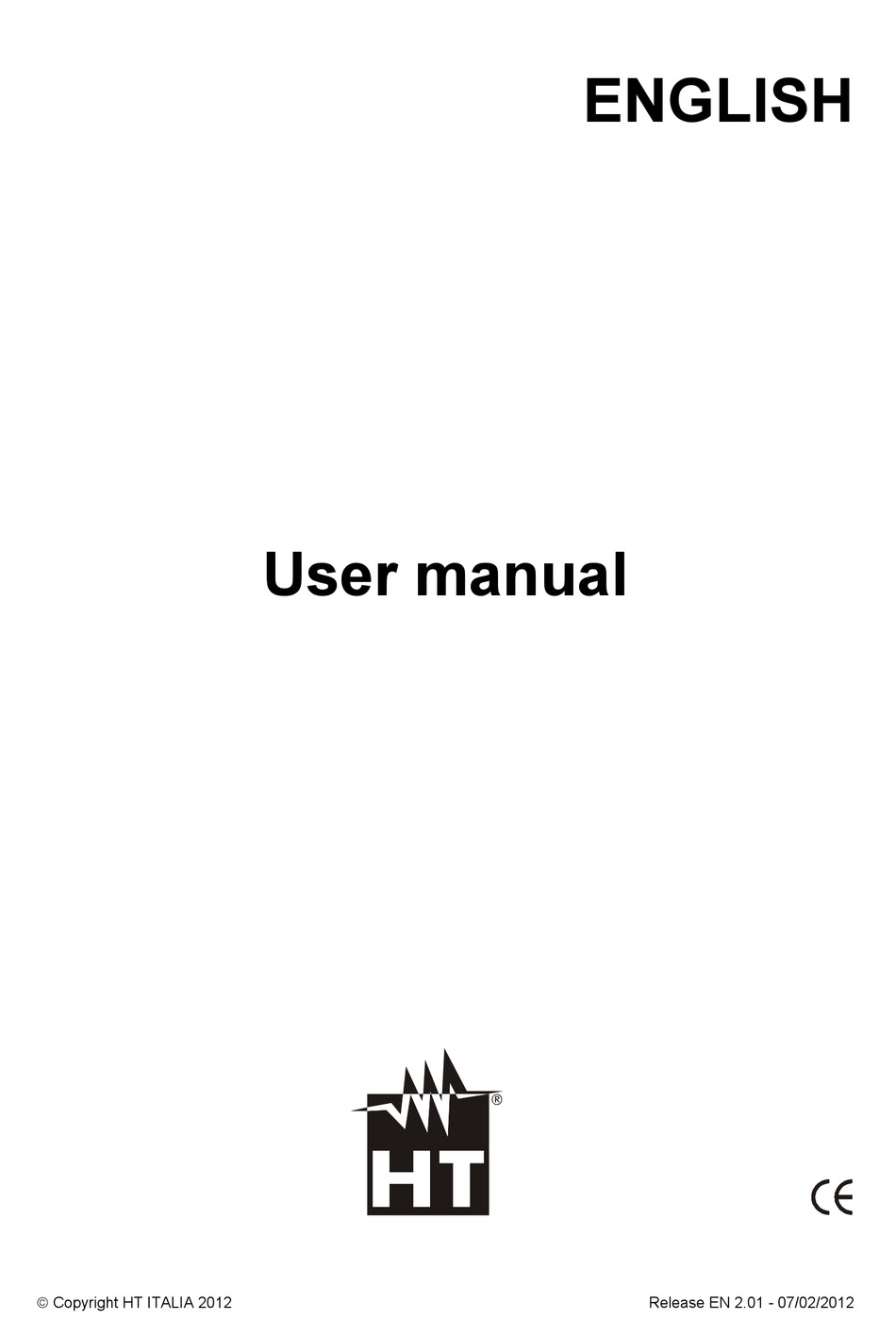

ENGLISH
User manual
 Copyright HT ITALIA 2012
Release EN 2.01 - 07/02/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT5 and is the answer not in the manual?

Questions and answers

Related Manuals for HT HT5

Summary of Contents for HT HT5

  • Page 1 ENGLISH User manual  Copyright HT ITALIA 2012 Release EN 2.01 - 07/02/2012...

  • Page 2: Table Of Contents

    Table of contents: PRECAUTIONS AND SAFETY MEASURES ................2 1.1. Preliminary instructions ........................2 1.2. During use ............................2 1.3. After use ............................2 1.4. Definition of measurement (overvoltage) category ................3 GENERAL DESCRIPTION ....................... 4 PREPARATION FOR USE ....................... 4 3.1.

  • Page 3: Precautions And Safety Measures

    1. PRECAUTIONS AND SAFETY MEASURES The instrument has been designed in compliance with directive IEC/EN61010-1 relevant to electronic measuring instruments. For your safety and in order to prevent damaging the instrument, please carefully follow the procedures described in this manual and read all notes preceded by the symbol with the utmost attention.

  • Page 4: Definition Of Measurement (Overvoltage) Category

    1.4. DEFINITION OF MEASUREMENT (OVERVOLTAGE) CATEGORY Standard CEI 61010: Safety requirements for electrical equipment for measurement, control and laboratory use, Part 1: General requirements” defines measurement category, commonly called overvoltage category. In § 6.7.4: Measured circuits, circuits are divided into the following measurement categories: (OMISSIS) •...

  • Page 5: General Description

    2. GENERAL DESCRIPTION The instrument HT5 can be used as: • Lamp test for gas filled lamps • Continuity / diode test • Single pole voltage test • Torch light The instrument can be also used for testing ballasts, starters, capacitors, resistors more than the herewith lamp types: •...

  • Page 6: Operating Instructions

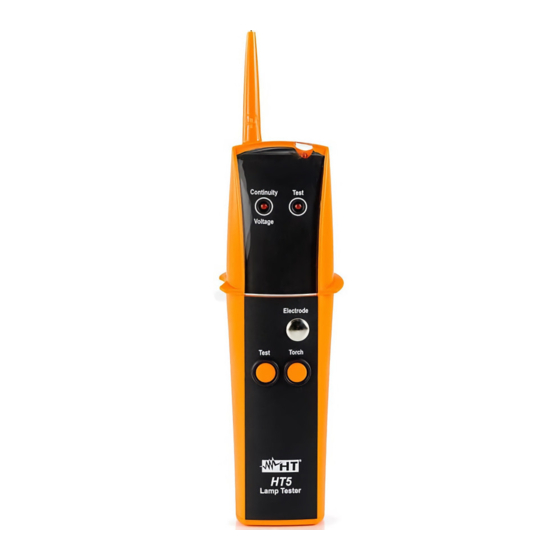

    4. OPERATING INSTRUCTIONS 4.1. INSTRUMENT DESCRIPTION CAPTION: 1. Test Probe for lamp test, voltage test and continuity/diode test 2. “Test” LED 3. “Continuity/Voltage” LED 4. Touch electrode for voltage test and Continuity / diode test 5. Button for lamp test 6.

  • Page 7: Instrument Functions

    5. INSTRUMENT FUNCTIONS 5.1. PHASE DETECTION The HT5 can be used as phase detector in the presence of voltage between 60V and 250V AC. Measurement procedure: • Touch contact “Electrode” (see Fig. 1 - point 4) during voltage test • Connect test probe (see Fig. 1 – point 1) to the device under test •...

  • Page 8: Lamp Test

    5.2. LAMP TEST The HT5 allows you to quickly detect the presence of faults in lamps, especially for all gas- filled low pressure and high pressure vapour lamps. Measurement procedure: • connect test probe (see Fig. 1 – point 1) to glass body or lamp socket •...

  • Page 9: Continuity / Diode Test

    5.3. CONTINUITY / DIODE TEST HT5 allows continuity and diode tests with optical and acoustic indication. CAUTION Prior to any continuity test, it must be ensured that the resistance to be measured is not live. Failure to comply with this prescription can lead to dangerous user injuries.

  • Page 10: Maintenance

    6. MAINTENANCE 6.1. GENERAL INFORMATION 1. While using and storing the instrument, carefully observe the recommendations listed in this manual in order to prevent possible damage or danger during use. 2. Do not use the instrument in environments with high humidity levels or high temperatures.

  • Page 11: Technical Specifications

    7. TECHNICAL SPECIFICATIONS 7.1. TECHNICAL CHARACTERISTICS Voltage Test Test Range: 60-250V AC Frequency Range: 40-60 Hz Test Current: < 200mA Lamp Test Voltage with new battery: approx. 3kV / 280kHz Field strength 150-170 kHz: approx. 100 µV/m Display: “Test” LED on and acoustic signal Continuity Test Dielectrical Strength: 250V AC/DC...

  • Page 12: Service

    8. SERVICE 8.1. WARRANTY CONDITIONS This instrument is warranted against any material or manufacturing defect, in compliance with the general sales conditions. During the warranty period, defective parts may be replaced. However, the manufacturer reserves the right to repair or replace the product. The warranty shall not apply in the following cases: •...
