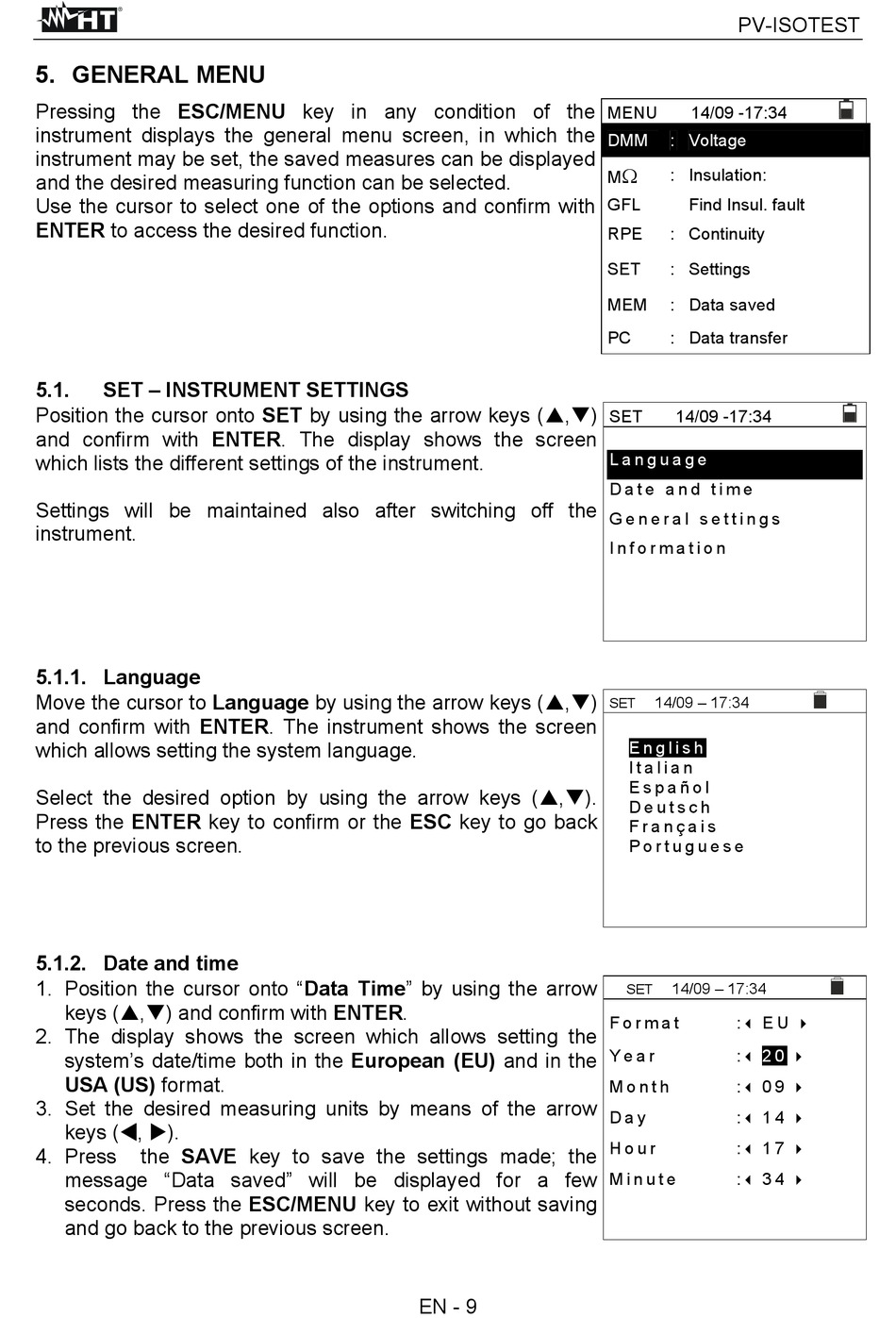

5. GENERAL MENU

Pressing the ESC/MENU key in any condition of the
instrument displays the general menu screen, in which the
instrument may be set, the saved measures can be displayed
and the desired measuring function can be selected.
Use the cursor to select one of the options and confirm with
ENTER to access the desired function.
5.1. SET – INSTRUMENT SETTINGS
Position the cursor onto SET by using the arrow keys (,)
and confirm with ENTER. The display shows the screen
which lists the different settings of the instrument.
Settings will be maintained also after switching off the
instrument.

5.1.1. Language

Move the cursor to Language by using the arrow keys (,)
and confirm with ENTER. The instrument shows the screen
which allows setting the system language.
Select the desired option by using the arrow keys (,).
Press the ENTER key to confirm or the ESC key to go back
to the previous screen.

5.1.2. Date and time

1. Position the cursor onto "Data Time" by using the arrow
keys (,) and confirm with ENTER.
2. The display shows the screen which allows setting the
system's date/time both in the European (EU) and in the
USA (US) format.
3. Set the desired measuring units by means of the arrow
keys (, ).
4. Press the SAVE key to save the settings made; the
message "Data saved" will be displayed for a few
seconds. Press the ESC/MENU key to exit without saving
and go back to the previous screen.
EN - 9
PV-ISOTEST
MENU 14/09 -17:34
DMM : Voltage

: Insulation:
M
GFL Find Insul. fault
RPE : Continuity
SET : Settings
MEM : Data saved
PC : Data transfer
SET 14/09 -17:34
L a n g u a g e
D a t e a n d t i m e
G e n e r a l s e t t i n g s
I n f o r m a t i o n
14/09 – 17:34
SET
E n g l i s h
I t a l i a n
E s p a ñ o l
D e u t s c h
F r a n ç a i s
P o r t u g u e s e
14/09 – 17:34
SET
F o r m a t : E U

Y e a r : 2 0

M o n t h : 0 9

D a y : 1 4

H o u r : 1 7

M i n u t e : 3 4







