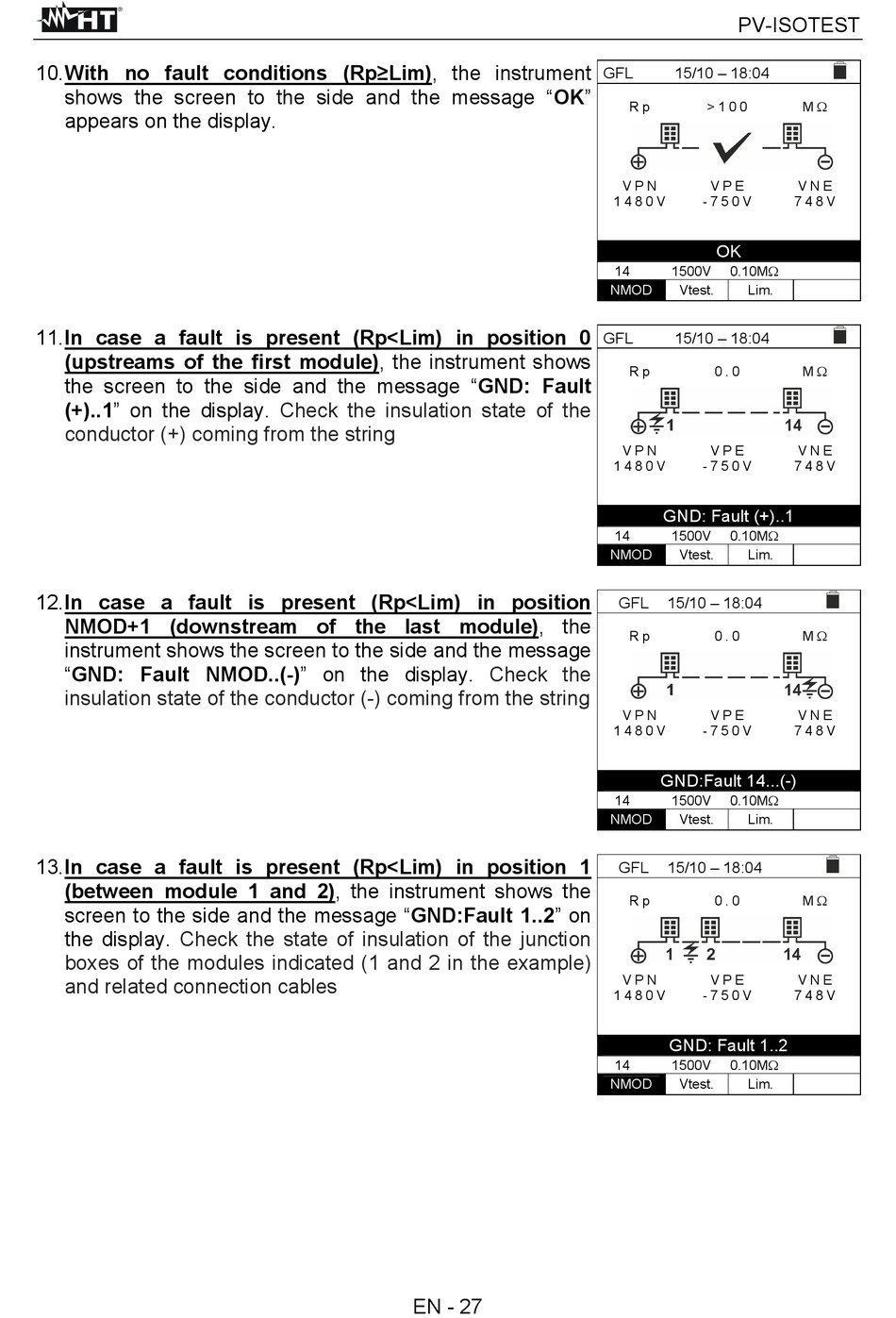

10. With no fault conditions (Rp≥Lim), the instrument
shows the screen to the side and the message "OK"
appears on the display.
11. In case a fault is present (Rp<Lim) in position 0
(upstreams of the first module), the instrument shows
the screen to the side and the message "GND: Fault
(+)..1" on the display.
conductor (+) coming from the string
12. In case a fault is present (Rp<Lim) in position
NMOD+1 (downstream of the last module), the
instrument shows the screen to the side and the message
"GND: Fault NMOD..(-)" on the display.
insulation state of the conductor (-) coming from the string
13. In case a fault is present (Rp<Lim) in position 1
(between module 1 and 2), the instrument shows the
screen to the side and the message "GND:Fault 1..2" on
the display. Check the state of insulation of the junction
boxes of the modules indicated (1 and 2 in the example)
and related connection cables
Check the insulation state of the
EN - 27
