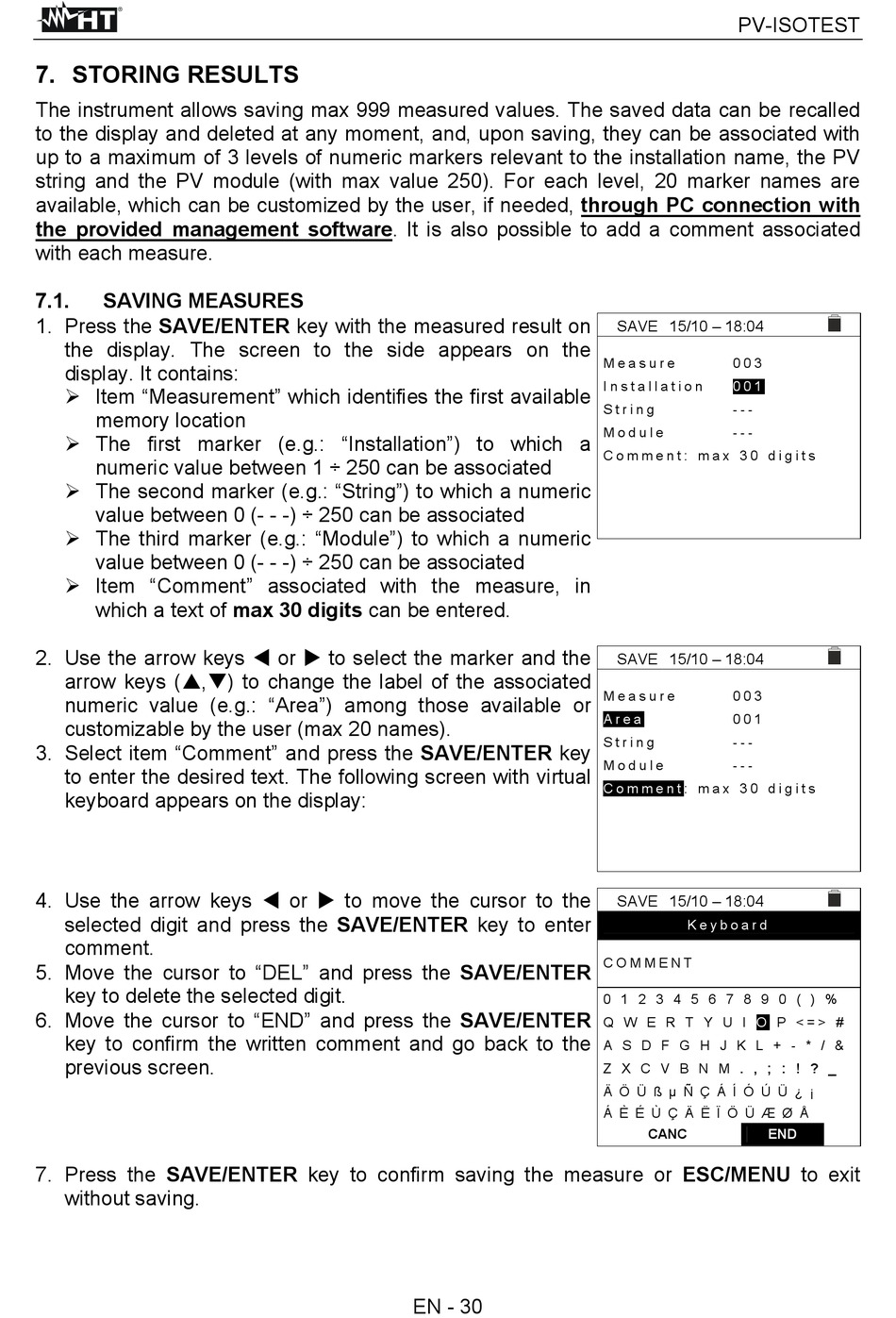

7. STORING RESULTS

The instrument allows saving max 999 measured values. The saved data can be recalled
to the display and deleted at any moment, and, upon saving, they can be associated with
up to a maximum of 3 levels of numeric markers relevant to the installation name, the PV
string and the PV module (with max value 250). For each level, 20 marker names are
available, which can be customized by the user, if needed, through PC connection with
the provided management software. It is also possible to add a comment associated
with each measure.
7.1.

SAVING MEASURES

1. Press the SAVE/ENTER key with the measured result on
the display. The screen to the side appears on the
display. It contains:
 Item "Measurement" which identifies the first available
memory location
 The first marker (e.g.: "Installation") to which a
numeric value between 1 ÷ 250 can be associated
 The second marker (e.g.: "String") to which a numeric
value between 0 (- - -) ÷ 250 can be associated
 The third marker (e.g.: "Module") to which a numeric
value between 0 (- - -) ÷ 250 can be associated
 Item "Comment" associated with the measure, in
which a text of max 30 digits can be entered.
2. Use the arrow keys  or  to select the marker and the
arrow keys (,) to change the label of the associated
numeric value (e.g.: "Area") among those available or
customizable by the user (max 20 names).
3. Select item "Comment" and press the SAVE/ENTER key
to enter the desired text. The following screen with virtual
keyboard appears on the display:
4. Use the arrow keys  or  to move the cursor to the
selected digit and press the SAVE/ENTER key to enter
comment.
5. Move the cursor to "DEL" and press the SAVE/ENTER
key to delete the selected digit.
6. Move the cursor to "END" and press the SAVE/ENTER
key to confirm the written comment and go back to the
previous screen.
7. Press the SAVE/ENTER key to confirm saving the measure or ESC/MENU to exit
without saving.
