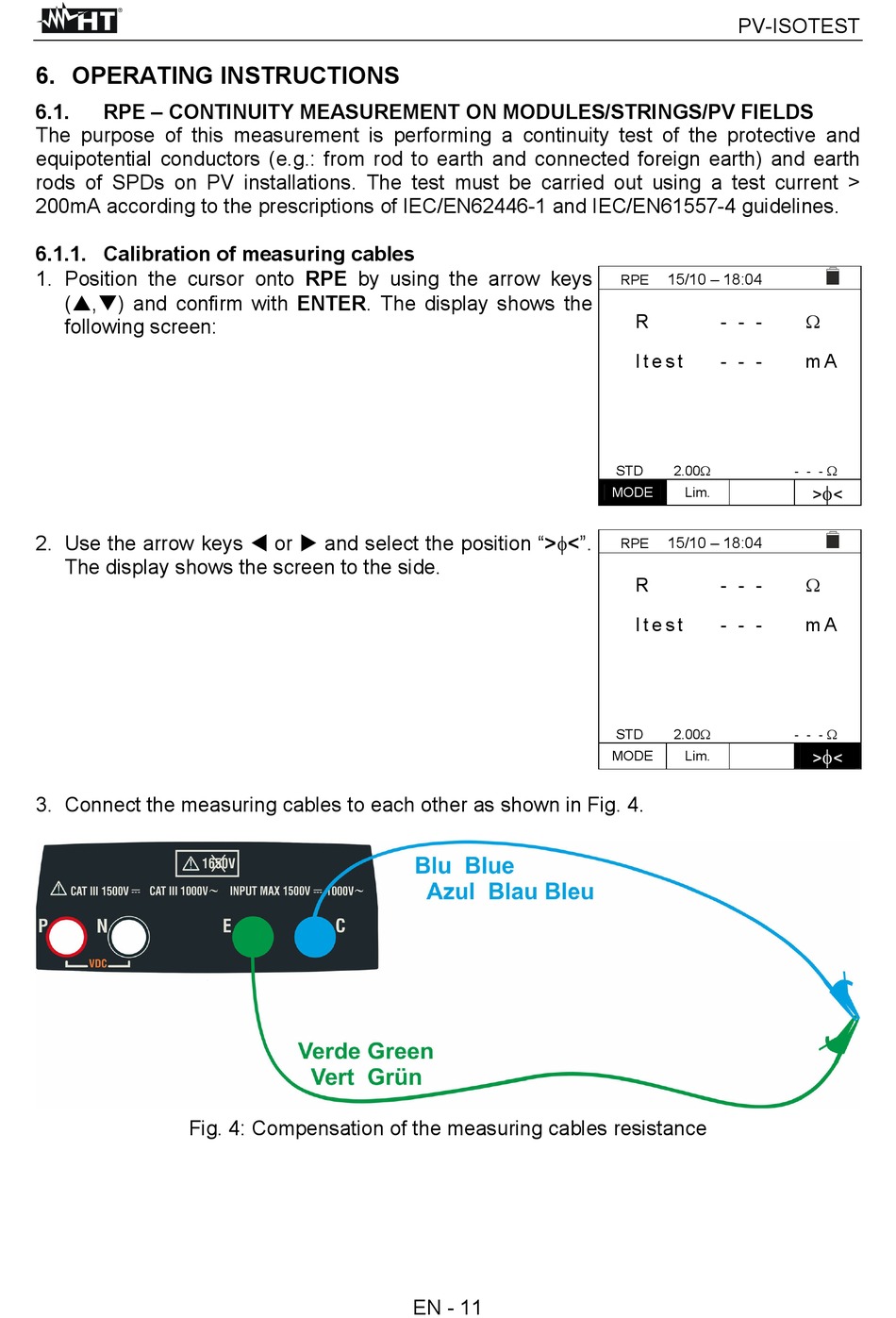

6. OPERATING INSTRUCTIONS

6.1. RPE – CONTINUITY MEASUREMENT ON MODULES/STRINGS/PV FIELDS
The purpose of this measurement is performing a continuity test of the protective and
equipotential conductors (e.g.: from rod to earth and connected foreign earth) and earth
rods of SPDs on PV installations. The test must be carried out using a test current >
200mA according to the prescriptions of IEC/EN62446-1 and IEC/EN61557-4 guidelines.

6.1.1. Calibration of measuring cables

1. Position the cursor onto RPE by using the arrow keys
(,) and confirm with ENTER. The display shows the
following screen:
2. Use the arrow keys  or  and select the position "><".
The display shows the screen to the side.
3. Connect the measuring cables to each other as shown in Fig. 4.
Fig. 4: Compensation of the measuring cables resistance
EN - 11
PV-ISOTEST
15/10 – 18:04
RPE
R - - -
I t e s t - - -
STD 2.00
MODE Lim.
