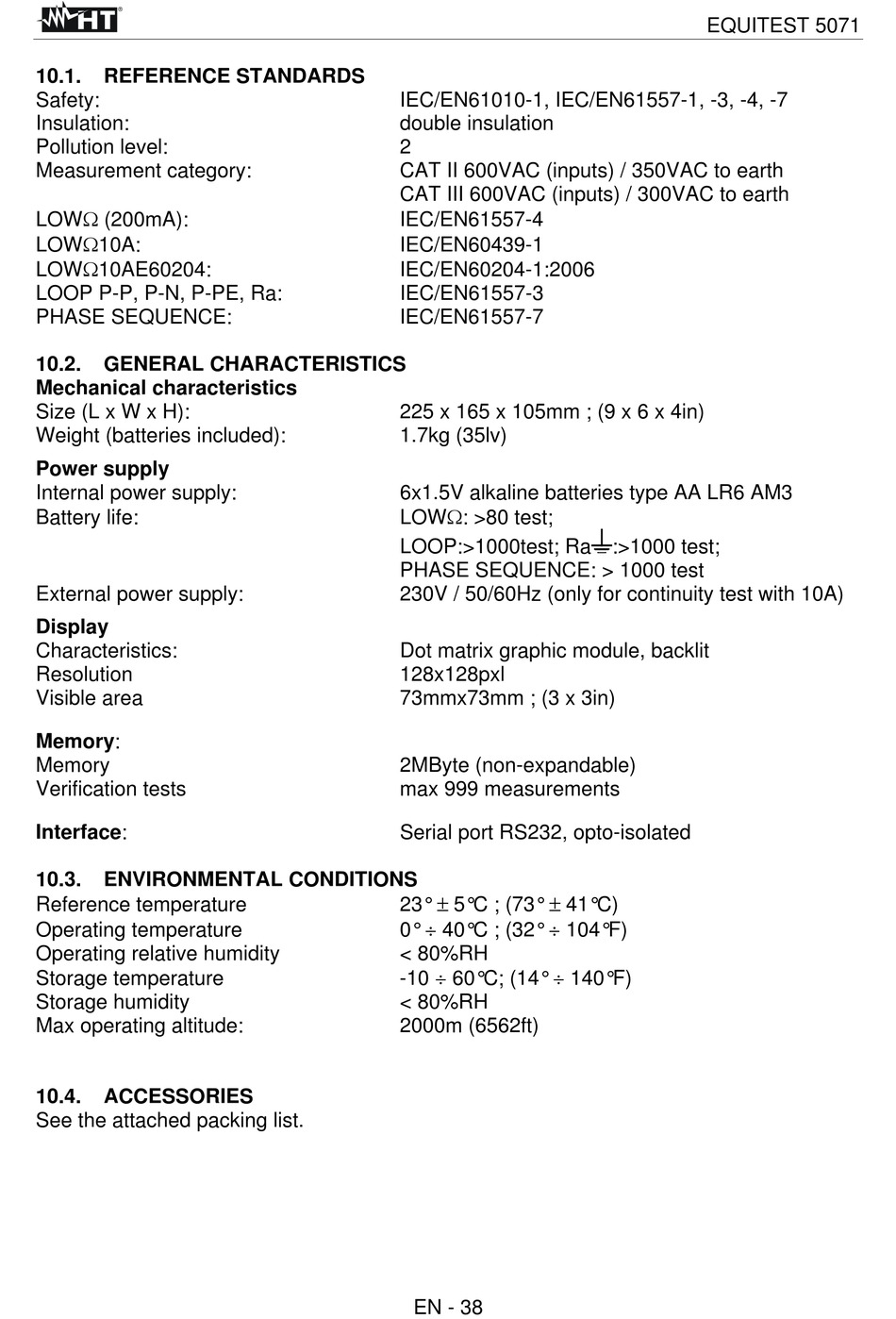

10.1.

REFERENCE STANDARDS

Safety:
Insulation:
Pollution level:
Measurement category:
LOW  (200mA):
LOW  10A:
LOW  10AE60204:
LOOP P-P, P-N, P-PE, Ra:
PHASE SEQUENCE:
10.2.

GENERAL CHARACTERISTICS

Mechanical characteristics
Size (L x W x H):
Weight (batteries included):
Power supply
Internal power supply:
Battery life:
External power supply:
Display
Characteristics:
Resolution
Visible area
Memory:
Memory
Verification tests
Interface:
10.3.

ENVIRONMENTAL CONDITIONS

Reference temperature
Operating temperature
Operating relative humidity
Storage temperature
Storage humidity
Max operating altitude:
10.4.

ACCESSORIES

See the attached packing list.
IEC/EN61010-1, IEC/EN61557-1, -3, -4, -7
double insulation
2
CAT II 600VAC (inputs) / 350VAC to earth
CAT III 600VAC (inputs) / 300VAC to earth
IEC/EN61557-4
IEC/EN60439-1
IEC/EN60204-1:2006
IEC/EN61557-3
IEC/EN61557-7
225 x 165 x 105mm ; (9 x 6 x 4in)
1.7kg (35lv)
6x1.5V alkaline batteries type AA LR6 AM3
LOW  : >80 test;
LOOP:>1000test; Ra :>1000 test;
PHASE SEQUENCE: > 1000 test
230V / 50/60Hz (only for continuity test with 10A)
Dot matrix graphic module, backlit
128x128pxl
73mmx73mm ; (3 x 3in)
2MByte (non-expandable)
max 999 measurements
Serial port RS232, opto-isolated
23°  5°C ; (73°  41°C)
0°  40°C ; (32°  104°F)
< 80%RH
-10  60°C; (14°  140°F)
< 80%RH
2000m (6562ft)
