7.2.

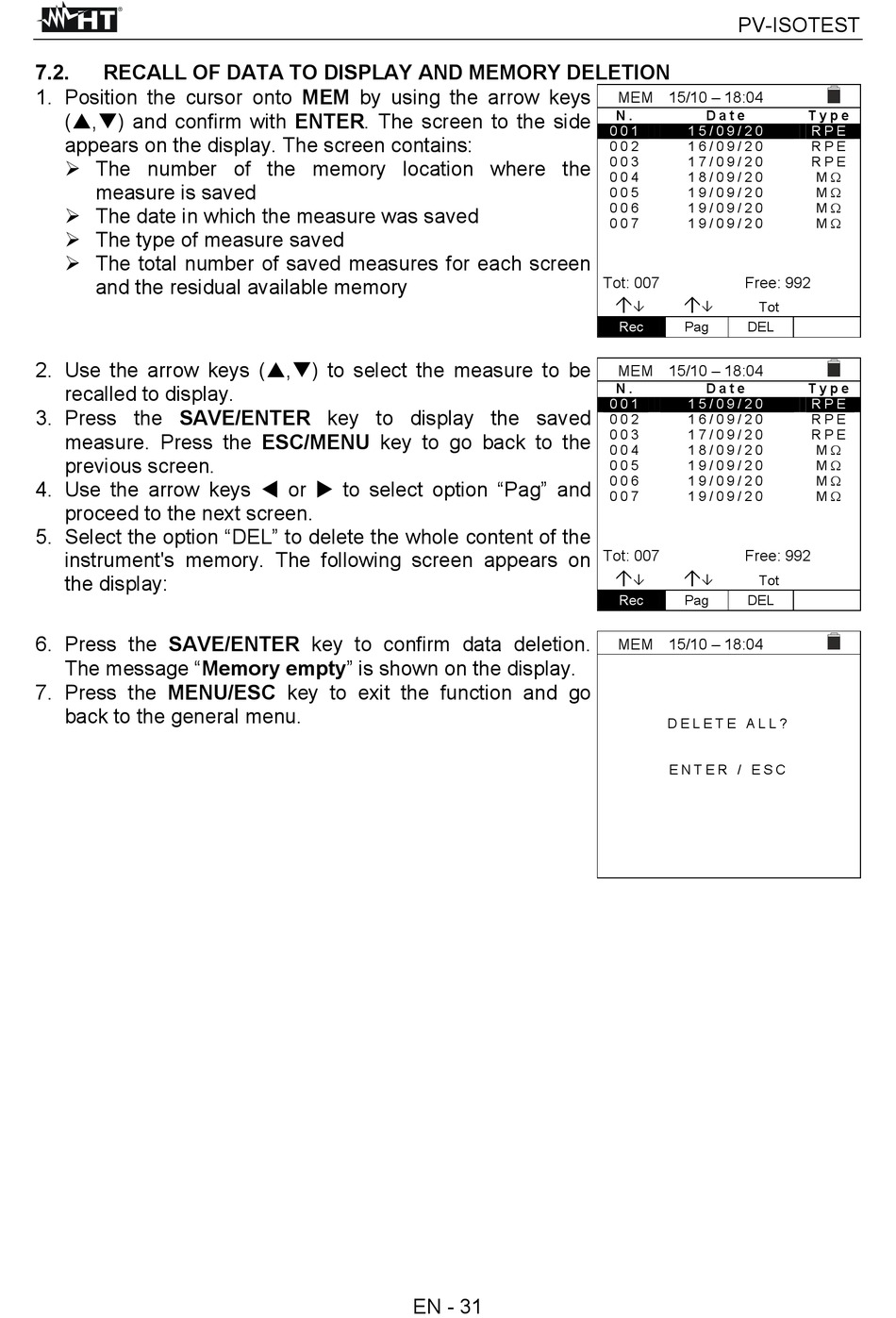

RECALL OF DATA TO DISPLAY AND MEMORY DELETION

1. Position the cursor onto MEM by using the arrow keys
(,) and confirm with ENTER. The screen to the side
appears on the display. The screen contains:
 The number of the memory location where the
measure is saved
 The date in which the measure was saved
 The type of measure saved
 The total number of saved measures for each screen
and the residual available memory
2. Use the arrow keys (,) to select the measure to be
recalled to display.
3. Press the SAVE/ENTER key to display the saved
measure. Press the ESC/MENU key to go back to the
previous screen.
4. Use the arrow keys  or  to select option "Pag" and
proceed to the next screen.
5. Select the option "DEL" to delete the whole content of the
instrument's memory. The following screen appears on
the display:
6. Press the SAVE/ENTER key to confirm data deletion.
The message "Memory empty" is shown on the display.
7. Press the MENU/ESC key to exit the function and go
back to the general menu.
EN - 31
PV-ISOTEST
MEM 15/10 – 18:04
N . D a t e
0 0 1 1 5 / 0 9 / 2 0
0 0 2 1 6 / 0 9 / 2 0
0 0 3 1 7 / 0 9 / 2 0
0 0 4 1 8 / 0 9 / 2 0
0 0 5 1 9 / 0 9 / 2 0
0 0 6 1 9 / 0 9 / 2 0
0 0 7 1 9 / 0 9 / 2 0
Tot: 007 Free: 992
 
  Tot
Rec Pag DEL
MEM 15/10 – 18:04
N . D a t e
0 0 1 1 5 / 0 9 / 2 0
0 0 2 1 6 / 0 9 / 2 0
0 0 3 1 7 / 0 9 / 2 0
0 0 4 1 8 / 0 9 / 2 0
0 0 5 1 9 / 0 9 / 2 0
0 0 6 1 9 / 0 9 / 2 0
0 0 7 1 9 / 0 9 / 2 0
Tot: 007 Free: 992
 
  Tot
Rec Pag DEL
MEM 15/10 – 18:04
D E L E T E A L L ?
E N T E R / E S C
T y p e
R P E
R P E
R P E
M 
M 
M 
M 
T y p e
R P E
R P E
R P E
M 
M 
M 
M 
