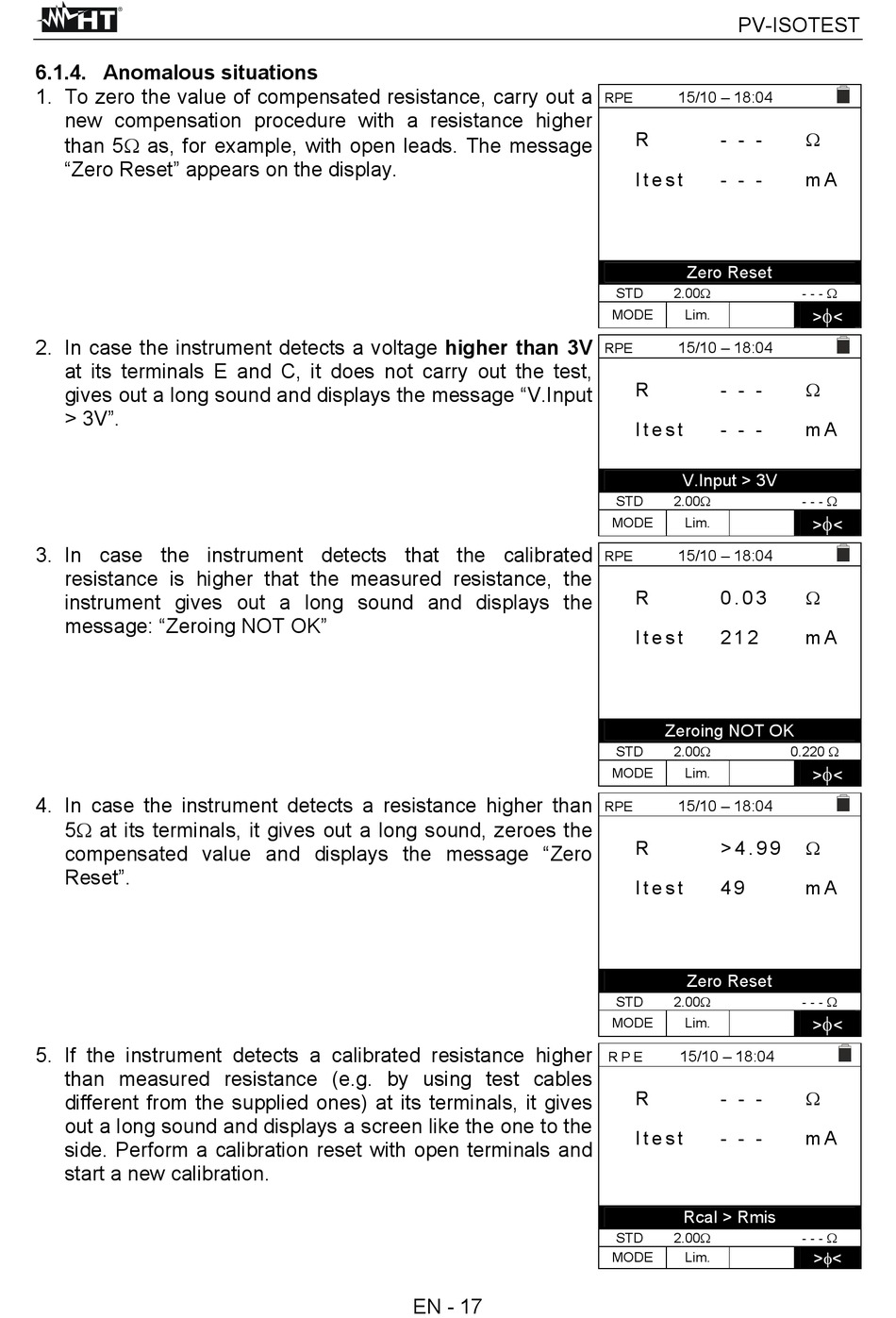

6.1.4. Anomalous situations

1. To zero the value of compensated resistance, carry out a
new compensation procedure with a resistance higher
than 5 as, for example, with open leads. The message
"Zero Reset" appears on the display.
2. In case the instrument detects a voltage higher than 3V
at its terminals E and C, it does not carry out the test,
gives out a long sound and displays the message "V.Input
> 3V".
3. In case the instrument detects that the calibrated
resistance is higher that the measured resistance, the
instrument gives out a long sound and displays the
message: "Zeroing NOT OK"
4. In case the instrument detects a resistance higher than
5 at its terminals, it gives out a long sound, zeroes the
compensated value and displays the message "Zero
Reset".
5. If the instrument detects a calibrated resistance higher
than measured resistance (e.g. by using test cables
different from the supplied ones) at its terminals, it gives
out a long sound and displays a screen like the one to the
side. Perform a calibration reset with open terminals and
start a new calibration.
EN - 17
PV-ISOTEST
15/10 – 18:04
RPE
R - - -
I t e s t - - -
Zero Reset
STD 2.00
MODE Lim.
15/10 – 18:04
RPE
R - - -
I t e s t - - -
V.Input > 3V
STD 2.00
MODE Lim.
15/10 – 18:04
RPE
R 0 . 0 3
I t e s t 2 1 2
Zeroing NOT OK
STD 2.00
MODE Lim.
15/10 – 18:04
RPE
R > 4 . 9 9
I t e s t 4 9
Zero Reset
STD 2.00
MODE Lim.
15/10 – 18:04
R P E
R - - -
I t e s t - - -
Rcal > Rmis
STD 2.00
MODE Lim.

m A
- - - 

> <

m A
- - - 

> <

m A
0.220 

> <

m A
- - - 

> <

m A
- - - 
><
