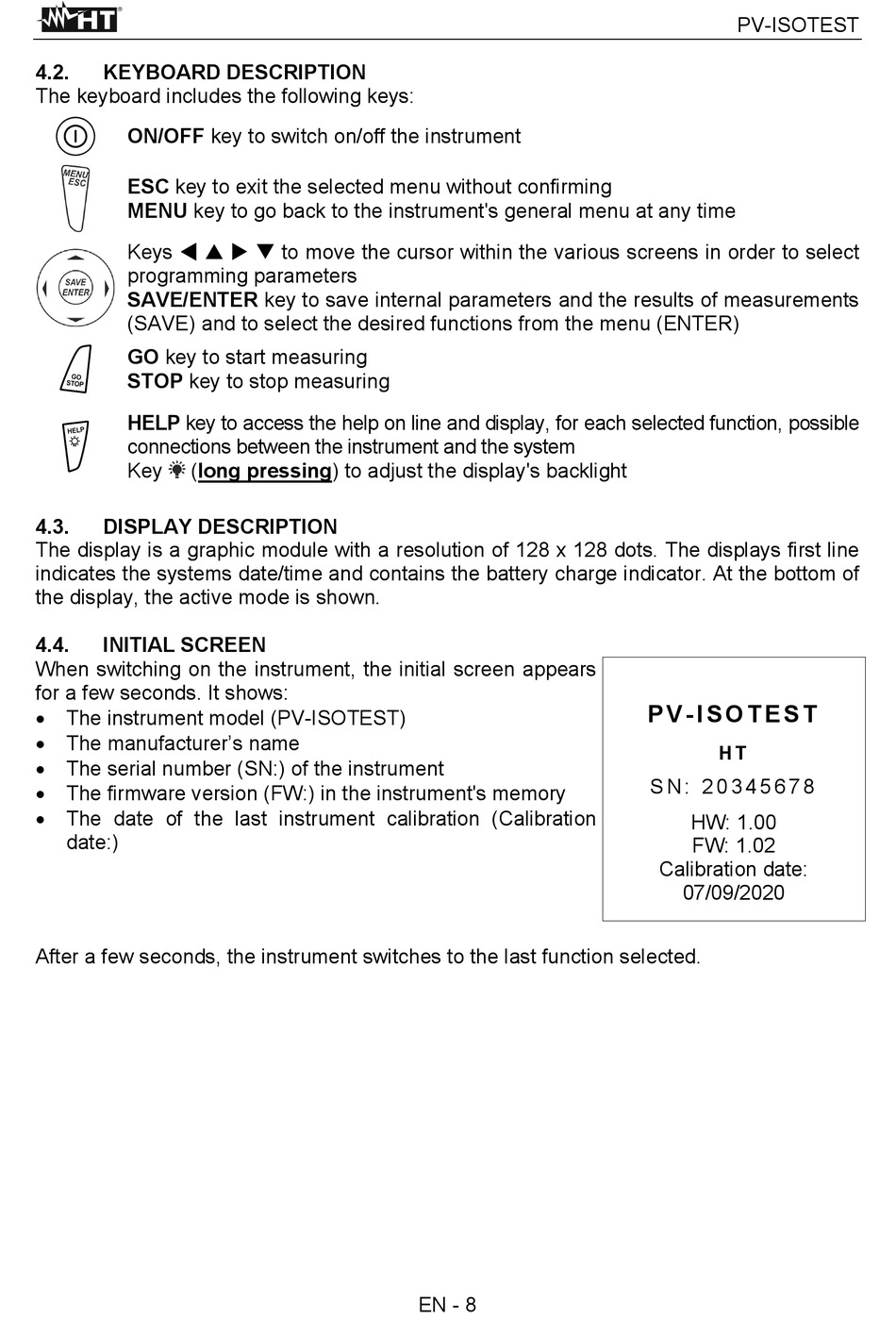

4.2.

KEYBOARD DESCRIPTION

The keyboard includes the following keys:
ON/OFF key to switch on/off the instrument
ESC key to exit the selected menu without confirming
MENU key to go back to the instrument's general menu at any time
Keys     to move the cursor within the various screens in order to select
programming parameters
SAVE/ENTER key to save internal parameters and the results of measurements
(SAVE) and to select the desired functions from the menu (ENTER)
GO key to start measuring
STOP key to stop measuring
HELP key to access the help on line and display, for each selected function, possible
connections between the instrument and the system
Key (long pressing) to adjust the display's backlight
4.3.

DISPLAY DESCRIPTION

The display is a graphic module with a resolution of 128 x 128 dots. The displays first line
indicates the systems date/time and contains the battery charge indicator. At the bottom of
the display, the active mode is shown.
4.4.

INITIAL SCREEN

When switching on the instrument, the initial screen appears
for a few seconds. It shows:
 The instrument model (PV-ISOTEST)
 The manufacturer's name
 The serial number (SN:) of the instrument
 The firmware version (FW:) in the instrument's memory
 The date of the last instrument calibration (Calibration
date:)
After a few seconds, the instrument switches to the last function selected.
EN - 8
PV-ISOTEST
P V - I S O T E S T
H T
S N : 2 0 3 4 5 6 7 8
HW: 1.00
FW: 1.02
Calibration date:
07/09/2020
