4. Installation, connection and commissioning

Only skilled persons are permitted to carry out the work necessary to
install, commission and run a device or system.
Risk of fatal injury from electric shock!
Touching live parts of the system carries the risk of:
DANGER
• An electric shock
• Damage to the electrical installation
• Destruction of the device
Before fitting the device and prior to working on the device
connections, make sure that the power supply has been
disconnected. Observe the rules for working on electrical
installations.
If the ISOMETER® is used in rail vehicles, it must be ensured that the
ISOMETER® is installed within a control cabinet that complies with
the fire protection requirements of DIN EN 45545-2.

4.1 Installation

• DIN rail mounting:
Snap the rear mounting clip of the device into place in such a way that a safe and
tight fit is ensured.
• Screw mounting:
Use a tool to position the rear mounting clips so that they project beyond the enclo-
sure (a second mounting clip is required, see ordering information). Fix the device
with two M4 screws, see the following sketch.
isoBAT425_D00308_04_M_XXEN/07.2020
Installation, connection and commissioning

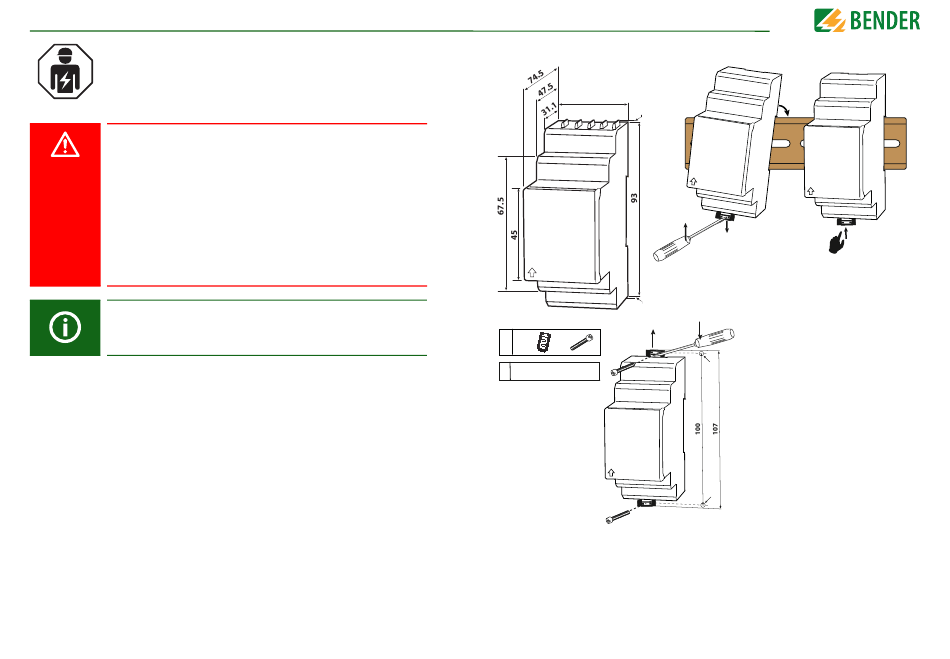

The dimension diagram, sketch for screw mounting and DIN rail mounting:
36
2
2
Click
2 x
&
1 x
!
All dimensions in mm
The front plate cover can be opened at the lower part marked with an arrow.
2.
1. 3.
Click!
M4
M4
15
