2 Board Layout

Figure 2-1

shows the location of key jumpers and switches on the CYW920706WCDEVAL board.

Note: Jumpers which are shorted by default are identified in red.

CYW920706WCDEVAL Hardware User Guide

Arrow.com.

Downloaded from

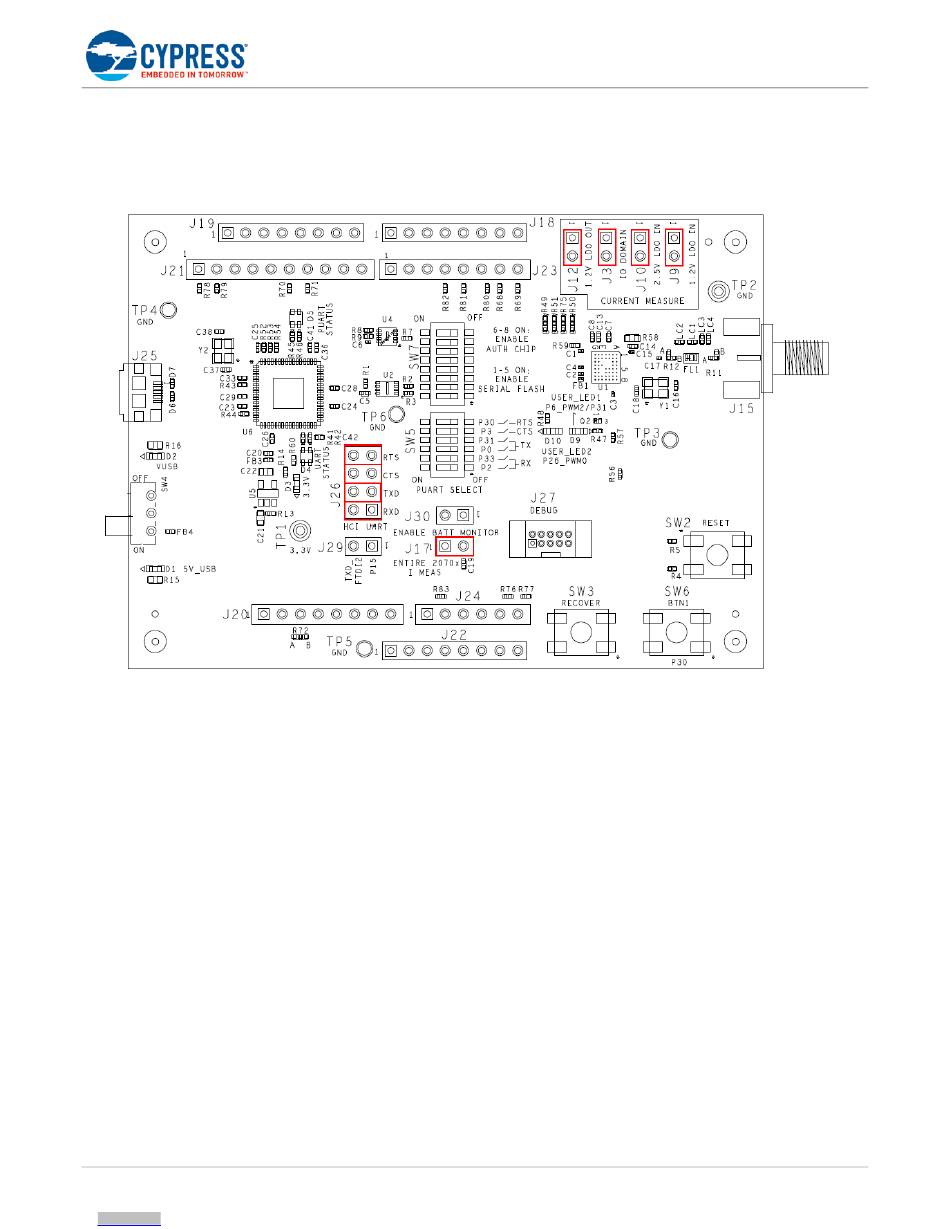

Figure 2-1. CYW920706WCDEVAL Evaluation Board Layout and Component Locations

Doc. No.: 002-16535 Rev. **
