CYW920819EVB-02 EVALUATION KIT QUICK START GUIDE
CYW920819EVB 02 EVALUATION KIT
1. Register on Cypress WICED Community and
then download and install ModusToolbox
1.1 (or later) at
www.cypress.com/modustoolbox
2. To learn more about this kit, refer to the
kit user guide at
www.cypress.com/CYW920819EVB-02
Kit Contents:

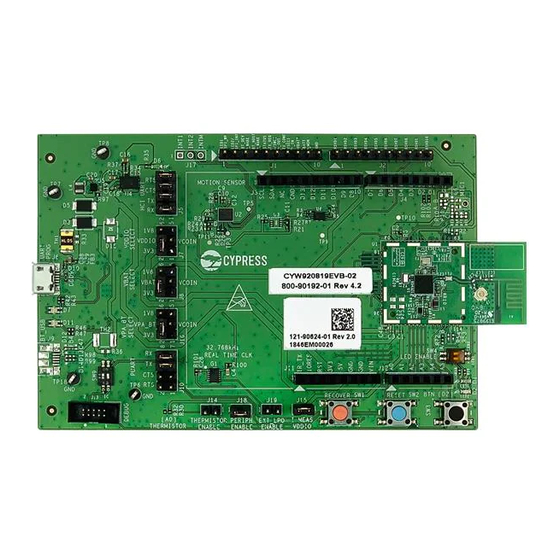

1 CYW920819EVB-02 evaluation board
2 USB standard-A to micro-B cable
3 Quick start guide (this document)
www.cypress.com/CYW920819EVB-02
1
1. Plug the kit into a USB port on your
computer.
2. Open a Terminal Emulator such as Tera
Term and make settings as shown above.
(The port may be different for your
computer. Use the WICED Peripheral UART
port number from the device manager.)
The terminal window will display the
thermistor resistance and the equivalent
temperature.
(Note: The temperature is transmitted over
Bluetooth LE every 5 seconds so you can
also use any mobile app that supports the
Environment Sensing pro le to test this
example project.)
