3.2.2.3.7 Exploded drawing - assembly sequence
Assembly sequence:
As the assembly of the various print head groups incl. product sensor does not different greatly, the
individual steps will be demonstrated on the basis of a group consisting of two print heads. The
various groups differ predominantly in terms of the number of print heads and stripper plates used.

First, assemble the two print heads 1 (based on the stripper plate either cascaded or linear)
and screw together with the two screws 5.

Place the stripper plate 6 from the front onto the screwed on print heads with the two screws
7.

Then screw on the positioning screw 8.

Position the product sensor 9 beneath the assembly bracket for the product sensor and
screw together with the two (long) screws 11. (Also see point 3.2.2.3.2)

Screw the assembly bracket with the sensor to the print head with the (short) screws.

Screw the print head retainer rod 2 with the print head using the screw, washer and lock
washer 4. For form-fitting assembly, the centering element 3 must be installed between the
print head retainer rod 2 and the print head 1 Depending on requirements, the print head
retainer rod can be mounted to positions 3a, 3b, 3c, 3d, 3e and 3f.
Instruction manual
REA JET HR pro 2K / 4K
V 3.5x_001 28.05.2015

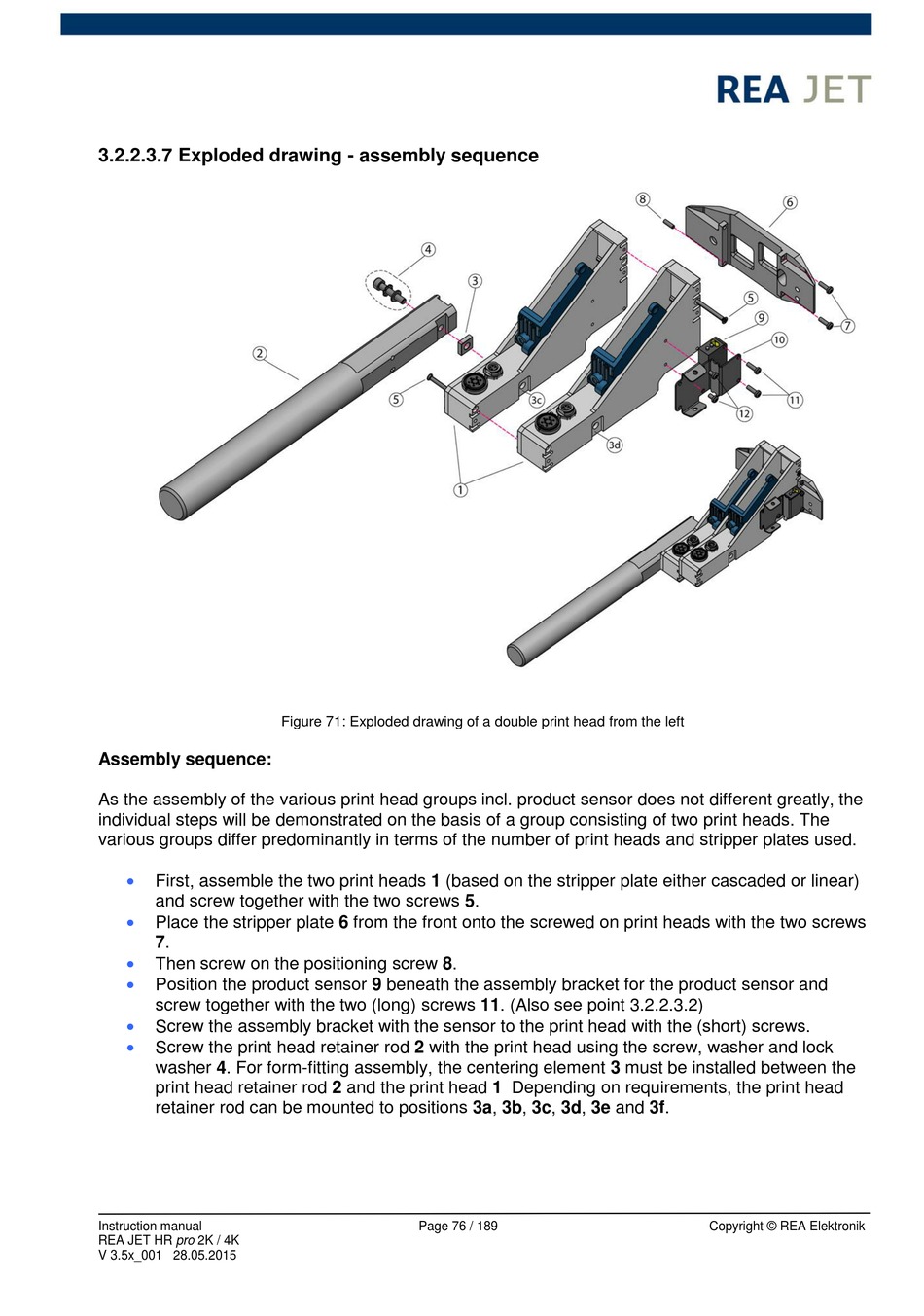

Figure 71: Exploded drawing of a double print head from the left
