4.2.8.1.1

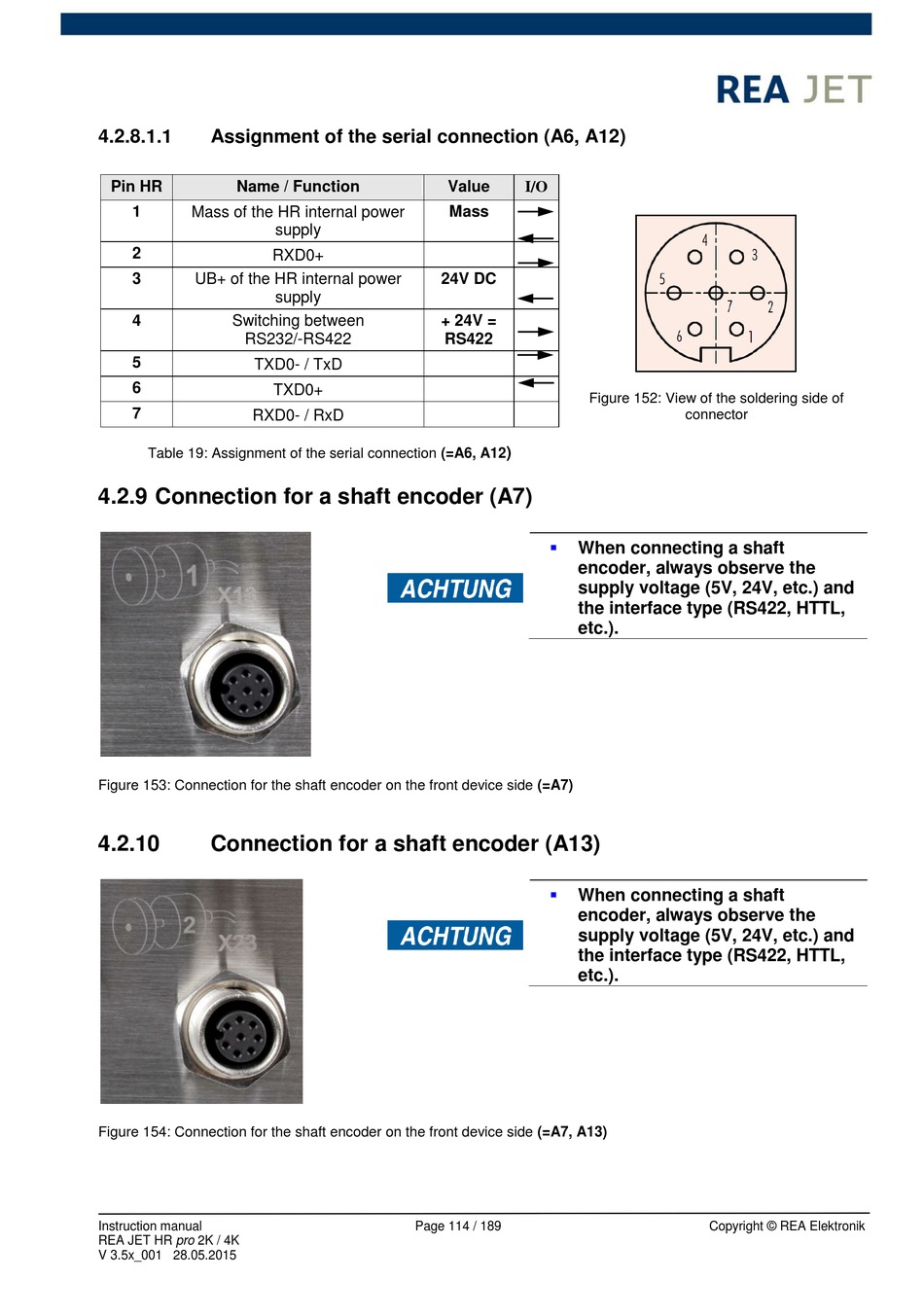

Assignment of the serial connection (A6, A12)

Pin HR Name / Function
1 Mass of the HR internal power
2
RXD0+
3 UB+ of the HR internal power
4
Switching between
RS232/-RS422
5
TXD0- / TxD
6
7
RXD0- / RxD
Table 19: Assignment of the serial connection (=A6, A12

4.2.9 Connection for a shaft encoder (A7)

Figure 153: Connection for the shaft encoder on the front device side (=A7)
4.2.10

Connection for a shaft encoder (A13)

Figure 154: Connection for the shaft encoder on the front device side (=A7, A13)
Instruction manual
REA JET HR pro 2K / 4K
V 3.5x_001 28.05.2015
Value
supply
24V DC
supply
+ 24V =
RS422
TXD0+
Page 114 / 189
I/O
Mass
Figure 152: View of the soldering side of
)

When connecting a shaft
encoder, always observe the
supply voltage (5V, 24V, etc.) and
the interface type (RS422, HTTL,
etc.).

When connecting a shaft
encoder, always observe the
supply voltage (5V, 24V, etc.) and
the interface type (RS422, HTTL,
etc.).
connector
