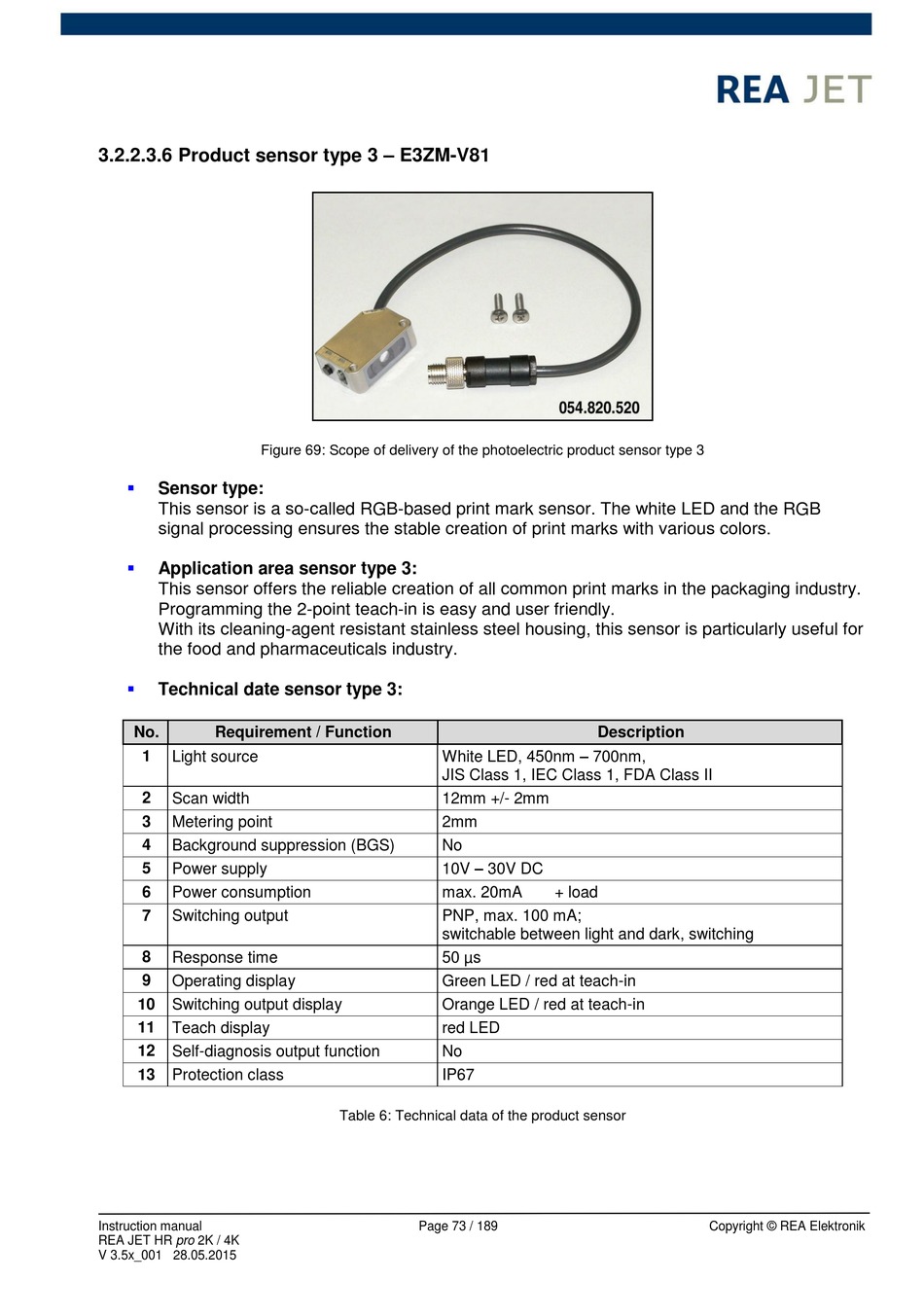

3.2.2.3.6 Product sensor type 3 – E3ZM-V81
Figure 69: Scope of delivery of the photoelectric product sensor type 3

Sensor type:
This sensor is a so-called RGB-based print mark sensor. The white LED and the RGB
signal processing ensures the stable creation of print marks with various colors.

Application area sensor type 3:
This sensor offers the reliable creation of all common print marks in the packaging industry.
Programming the 2-point teach-in is easy and user friendly.
With its cleaning-agent resistant stainless steel housing, this sensor is particularly useful for
the food and pharmaceuticals industry.

Technical date sensor type 3:
No. Requirement / Function
1 Light source
2 Scan width
3 Metering point
4 Background suppression (BGS)
5 Power supply
6 Power consumption
7 Switching output
8 Response time
9 Operating display
10 Switching output display
11 Teach display
12 Self-diagnosis output function
13
Protection class
Instruction manual
REA JET HR pro 2K / 4K
V 3.5x_001 28.05.2015
White LED, 450nm – 700nm,
JIS Class 1, IEC Class 1, FDA Class II
12mm +/- 2mm
2mm
No
10V – 30V DC
max. 20mA
PNP, max. 100 mA;
switchable between light and dark, switching
50 µs
Green LED / red at teach-in
Orange LED / red at teach-in
red LED
No
IP67
Table 6: Technical data of the product sensor
Page 73 / 189
Description
+ load
