No. Connection
descriptor
B1 Power Power LED: When operational the power LED emits a green light. While
booting the REA JET HR pro 4K this LED is lit in orange. The LED is also
green if the display light has been deactivated by the power-save mode.
B2 Display
B3 S2
Rotary knob with touch function
B4 S1 Power switch
B5 R Reset. The device will be restarted
B6 T Reset to factory settings
B7 5V, 24V, These LEDs represent the status of the power supply voltages 5V, 24V
30V and 30V. Ensure that all voltages are available when starting the device.
B8 JOB
The JOB LED indicates an activated print job. If this LED is green, labeling
can be initiated by triggering a print job. Start is only possible if a print job
had been previously assigned.
B9 Status Status LEDs: Shows the status of the connected print heads.
Left LED:
green:
Print head connected, print cartridge with chip inserted and locking lever
closed.
Green flashing:
Print head connected, print cartridge without chip inserted and locking
lever closed.
Right LED:
red:
Print head error. Print head connection and no ink cartridge inserted or ink
cartridge inserted and locking lever is open.
Instruction manual
REA JET HR pro 2K/4K
V 3.5x_001 28.05.2015
Description
Page 189 / 189
REA JET HR pro 4K
A13 A14 A15 A16 B1
A11 A9 A7 A5 B8
A12 A10 A8 A6 B9
REA JET HR pro 4K

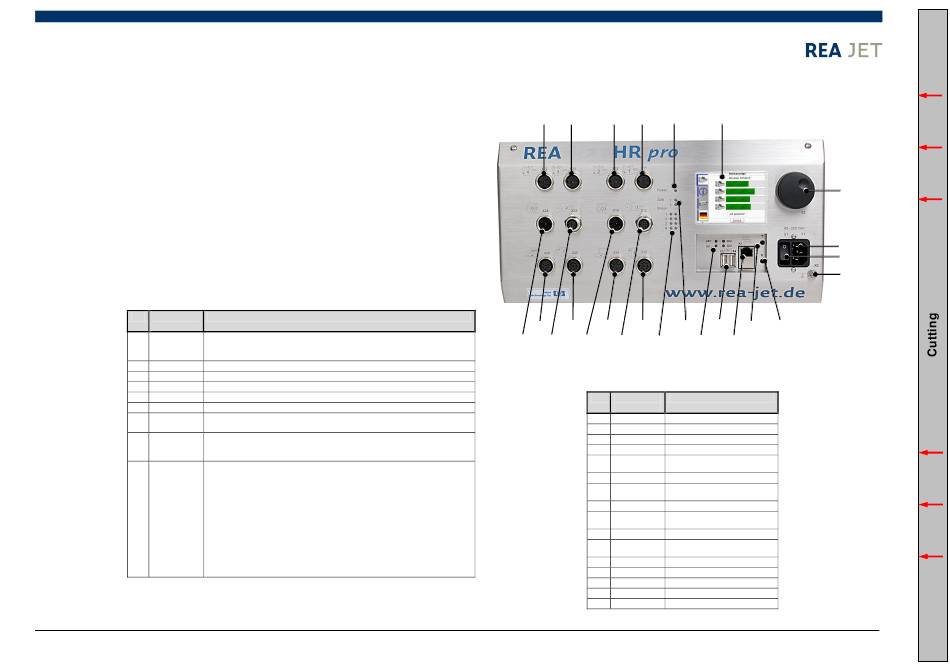

Figure 239: View of the operating elements with display and LED displays
No. Connection
descriptor
A1 X1 Mains connection
A2 X2 Ground bolt, M5
A3 X3
Ethernet
A4 X4, X5 USB connections
A5 X15 Bulk ink supply 1
available)
A6 X13 Shaft encoder 1
A7 X16 RS232 / RS422
based on firmware version)
A8 X14 Digital inputs/outputs 1
A9 X25 Bulk ink supply 2
available)
A10 X23 Shaft encoder 2
A11 X26
RS232 / RS422
based on firmware version)
A12 X24 Digital inputs/outputs 2
A13 X22 Print head 4
A14 X21 Print head 3
A15 X12 Print head 2
A16 X11 Print head 1
B2
B3
A1
B4
A2
A4 B6 B5
B7 A3
Description
(currently not
(availability
(currently not
(availability
