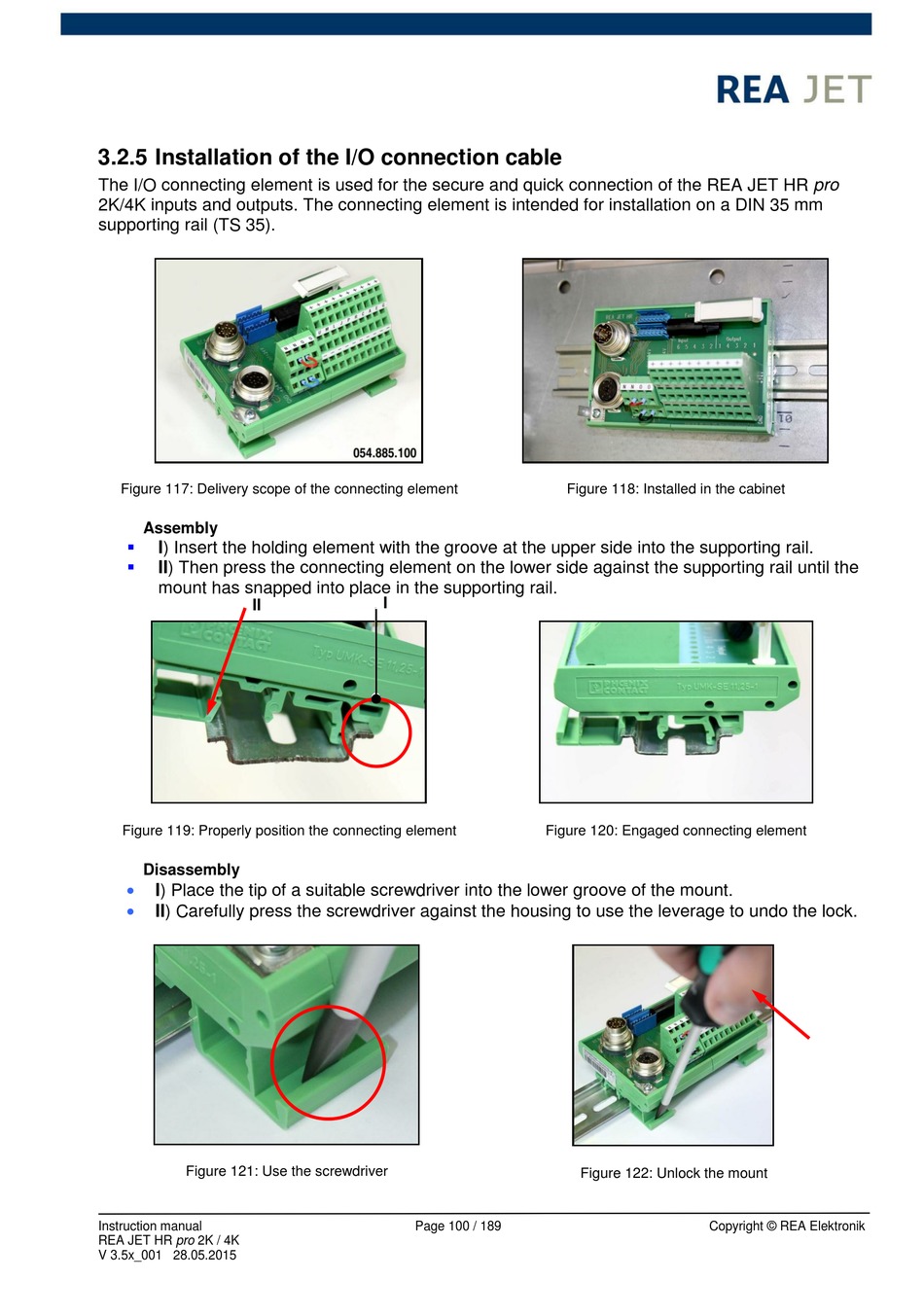

3.2.5 Installation of the I/O connection cable

The I/O connecting element is used for the secure and quick connection of the REA JET HR pro
2K/4K inputs and outputs. The connecting element is intended for installation on a DIN 35 mm
supporting rail (TS 35).
Figure 117: Delivery scope of the connecting element
Assembly

I) Insert the holding element with the groove at the upper side into the supporting rail.

II) Then press the connecting element on the lower side against the supporting rail until the
mount has snapped into place in the supporting rail.
II
Figure 119: Properly position the connecting element
Disassembly

I) Place the tip of a suitable screwdriver into the lower groove of the mount.

II) Carefully press the screwdriver against the housing to use the leverage to undo the lock.
Figure 121: Use the screwdriver
Instruction manual
REA JET HR pro 2K / 4K
V 3.5x_001 28.05.2015
I
Figure 120: Engaged connecting element
Page 100 / 189
Figure 118: Installed in the cabinet
Figure 122: Unlock the mount
